Installation and Assembly
4.6

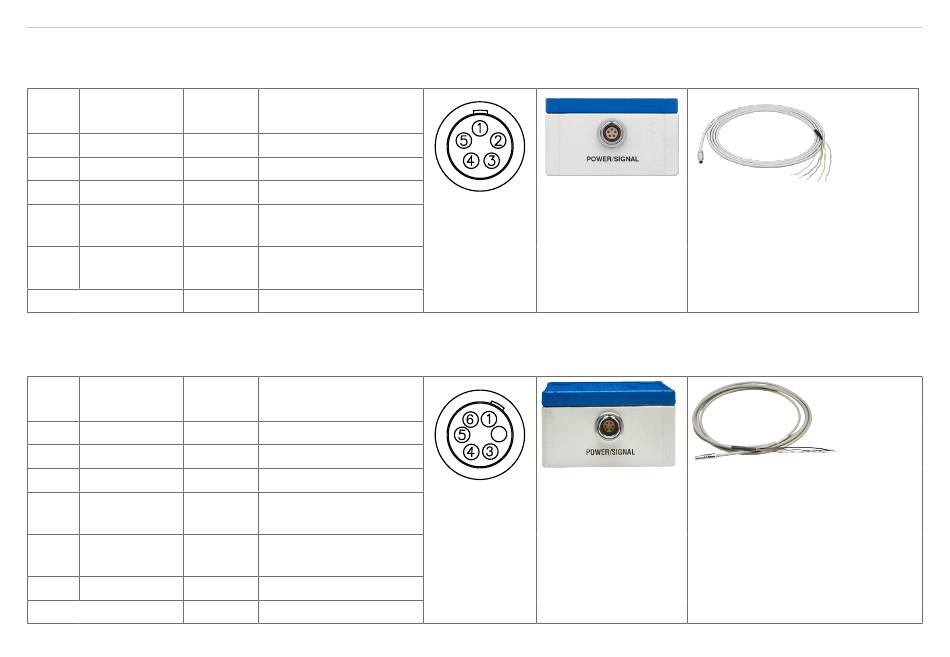

Power Supply, DT6114 Display/Output Device

The power supply and signal output are provided via the 5-pin connector on the front of the controller.
Pin Wire color Signal
SCAC3/5
1 White +24 V
2 Gray GND
3 Yellow -
4 green AGND
5 Brown U-out
Shield
4.7

Power Supply, DT6124 Display/Output Device

The power supply and signal output are provided via the 6-pin connector on the front of the controller.
Pin Wire color Signal
SCAC3/6
1 White +24 V
2 Gray GND
3 Pink RS485 + RS485 interface
4 Green AGND
5 Brown U-out
6 Blue RS485 -
Shield
capaNCDT 61x4
Description
+24 V supply
Supply ground
Not used
Analog ground
View: Solder
(for signal output)
Signal output
5-pin socket
(load, min. 10 kOhm)
Cable shield, housing
Description
+24 V supply
Supply ground
Analog ground
View: Solder
(for signal output)
6-pin socket
Signal output
(load, min. 10 kOhm)
RS485, negated
Cable shield, housing
Fig. 10 Supply voltage
connection
side,
2
Fig. 12 Supply voltage
connection
side,
Fig. 11 SCAC3/5 power supply
and output cable
The SCAC3/5 is an assembled
supply and output cable that is
3 m long.
Fig. 13 SCAC3/6 power supply and
output cable
The SCAC3/6 is an assembled
supply and output cable that is
3 m long.
Page 19
