Functional Principle, Technical Data
2.2.1

Sensors

Sensors with an integrated preamplifier can be used in the measuring
system.
For accurate measurement results, keep the front of the sensor clean
and avoid damaging it.
The capacitive measuring method is area-based. A minimum area is re-
quired depending on the sensor model and measuring range, see
Sensor model
CSHA2FL

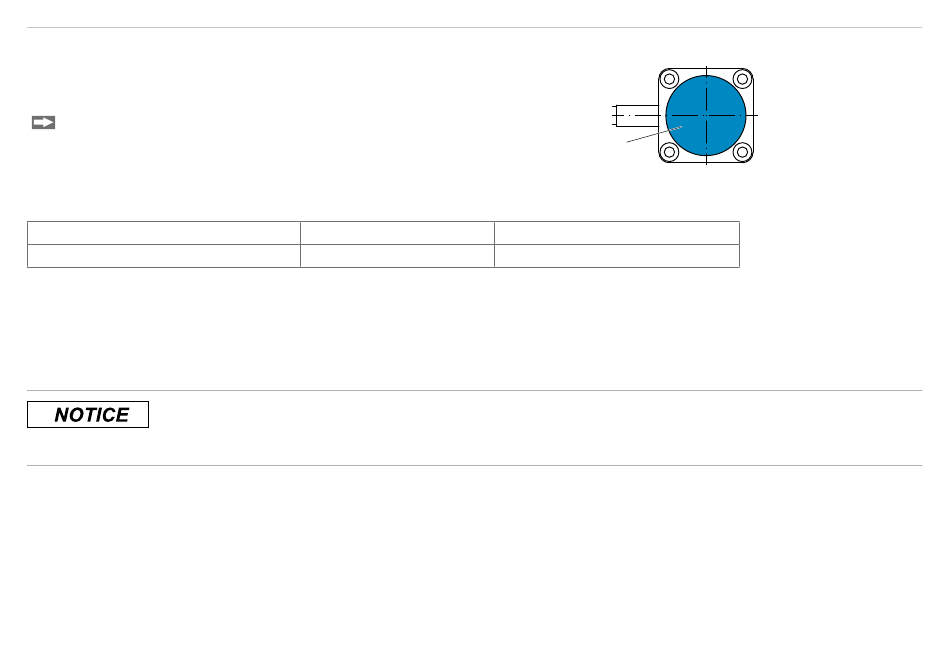

Fig. 5 Sensors for electrically conductive targets (metals)
The preamplifier integrated in the sensor generates and amplifies the distance-dependent measurement signal.
2.2.2

Sensor Cable

The 5-pin sensor cable is firmly connected to the sensor. The robust sensor cable connects the sensor to the controller. It is suitable
for use in drag chains and robots, for example.
Switch off the controller when disconnecting or altering the cable connection.
Do nut crush the sensor cable. Do not make any changes to the sensor cable.
Loss of functionality!
capaNCDT 61x4
Fig.
Measuring range, nominal
2 mm
Min. target
diameter
5.
Min. target diameter
17 mm
Page 11
