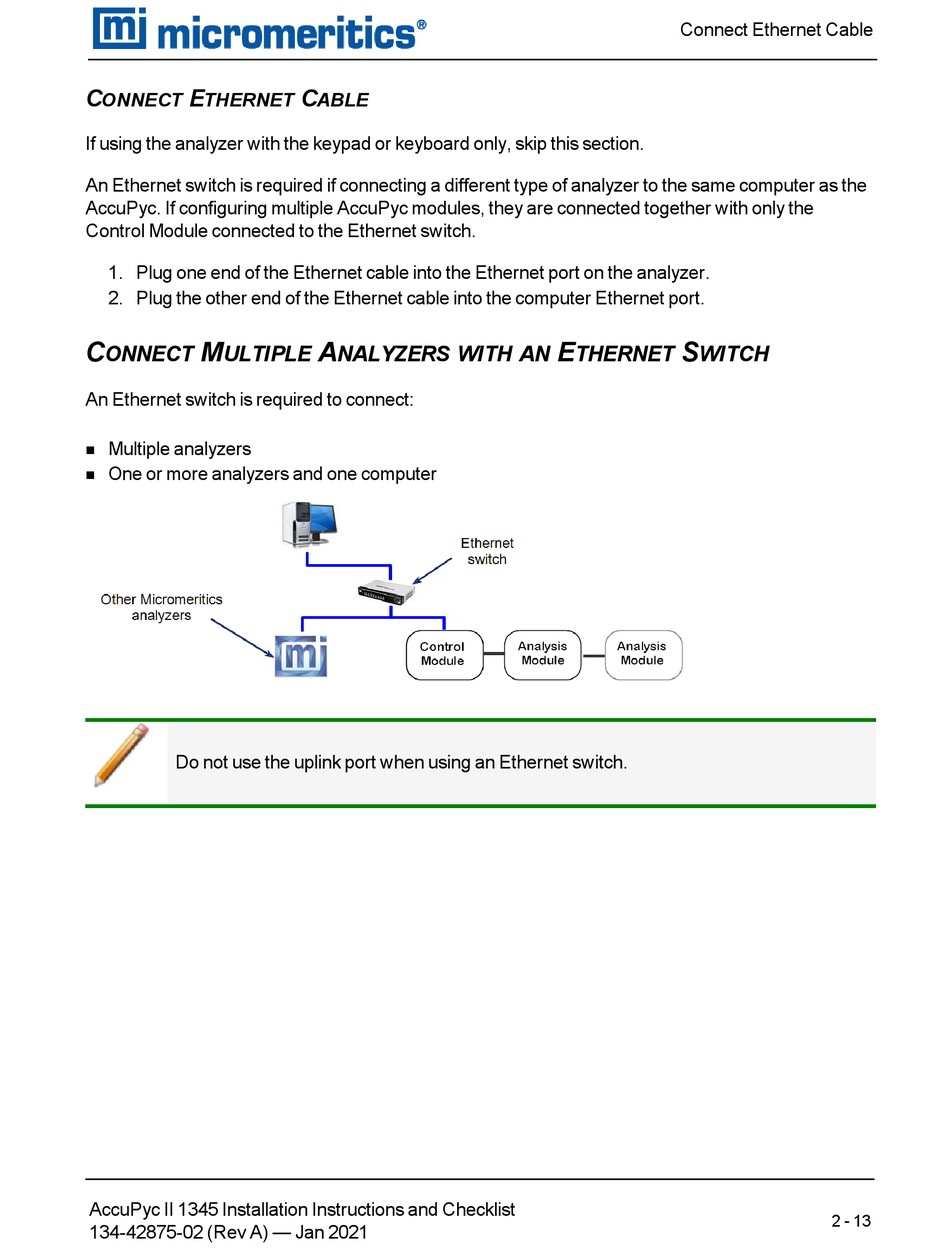

Connect Ethernet Cable - Micromeritics ACCUPYC II 1345 Series Installation Instructions And Checklist

C E
ONNECT THERNET
If using the analyzer with the keypad or keyboard only, skip this section.
An Ethernet switch is required if connecting a different type of analyzer to the same computer as the
AccuPyc. If configuring multiple AccuPyc modules, they are connected together with only the
Control Module connected to the Ethernet switch.
1. Plug one end of the Ethernet cable into the Ethernet port on the analyzer.
2. Plug the other end of the Ethernet cable into the computer Ethernet port.
C M
ONNECT ULTIPLE
An Ethernet switch is required to connect:
Multiple analyzers
n
One or more analyzers and one computer
n
Do not use the uplink port when using an Ethernet switch.
