Temperature-Controlled Module - Micromeritics ACCUPYC II 1345 Series Installation Instructions And Checklist

2 Equipment Installation
T -C
EMPERATURE ONTROLLED
See Pycnometer Installation on page 2 - 1
circulating bath.
Attach a Circulating Bath
The rear panel of the temperature-controlled AccuPyc contains connections for a circulating bath.
Provided in the accessory kit are two hose fittings and a four foot length of tubing.
1. Power off the controlling unit.
2. Remove the plugs from the In port and the Out port.
3. Insert the provided hose fittings into each connector.
4. Cut the piece of 4 ft. tubing into two equal pieces of 2 feet each.
5. Install the tubing on the In and Out connectors.
6. Install the other end of the Out tubing to the Inlet connection of the bath circulator.
7. Install the other end of the In tubing to the Outlet connection of the bath circulator.
8. Set the temperature using the appropriate controls on the bath circulator.
2 - 8
M
ODULE
for setup instructions. When complete, connect the

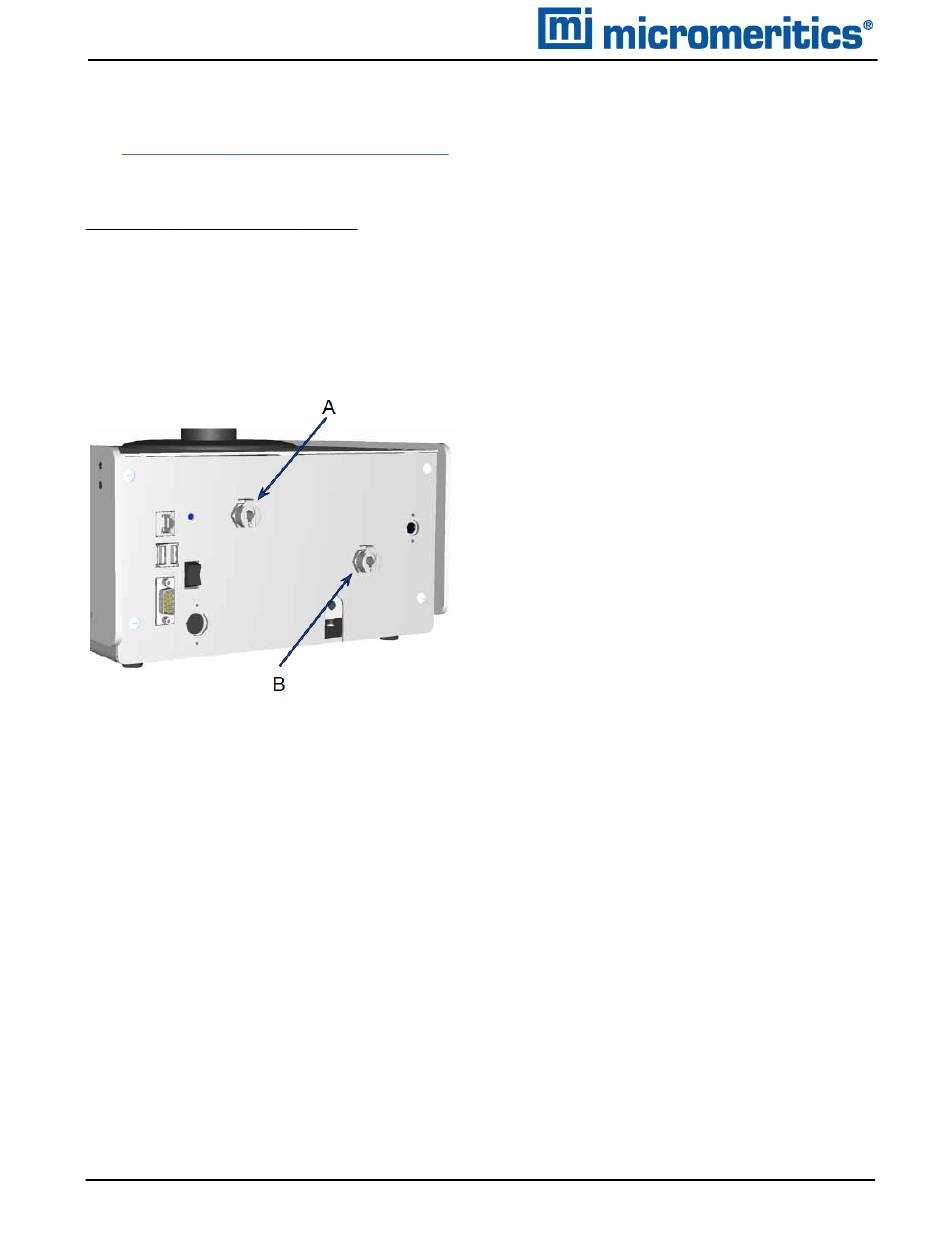

A. Circulating bath IN port
B. Circulating bath OUT port
