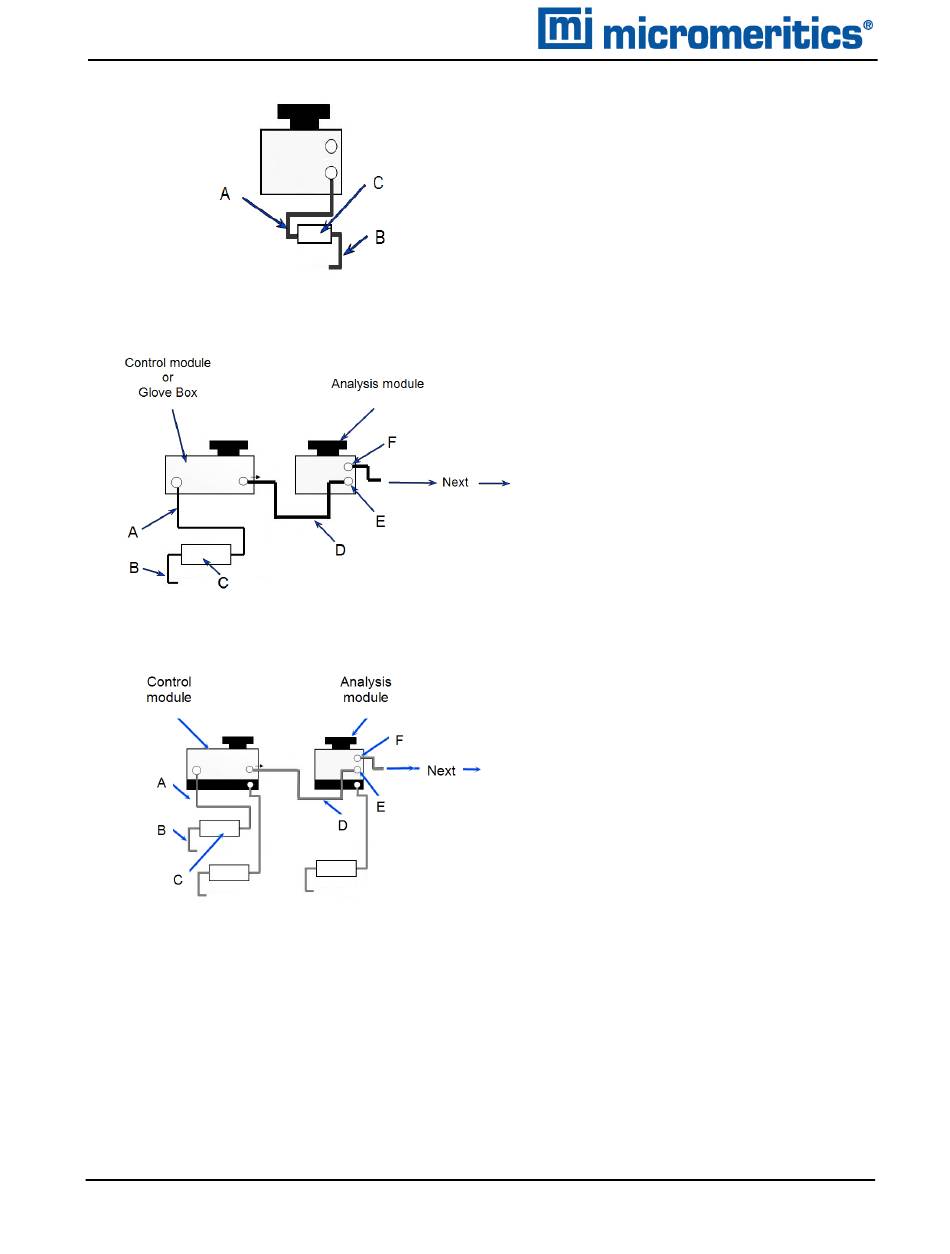

2 Equipment Installation
Single Module
Control Module and Analysis Module
TEC Module
S
U
P
ET
P
ROCEDURE
1. Unpack and inventory all boxed parts. Contact your Micromeritics Service Representative if
parts are missing or broken.
2. Place module(s) on work surface.
2 - 2
A. Hardwired 8 pin mini-DIN power
cable for external power supply.
B. Separate power cord for external
power supply. Connect cable to wall
outlet.
C. External power supply.
D. Mini DIN cable for power and serial
control data.
E. Module Connection - 8 pin mini-DIN
IN port to connect the control module
or previously connected analysis mod-
ule (not shown).
F. Module Connection - 8 pin mini-DIN
OUT port to connect next analysis
module.
AccuPyc II 1345 Installation Instructions and Checklist
134-42875-02 (Rev A) — Jan 2021
