2.4 Electrical Installation
This section contains detailed instructions for wiring the
adjustable frequency drive. The following tasks are
described.
•
Wiring the motor to the adjustable frequency
drive output terminals
•
Wiring the AC line power to the adjustable
frequency drive input terminals

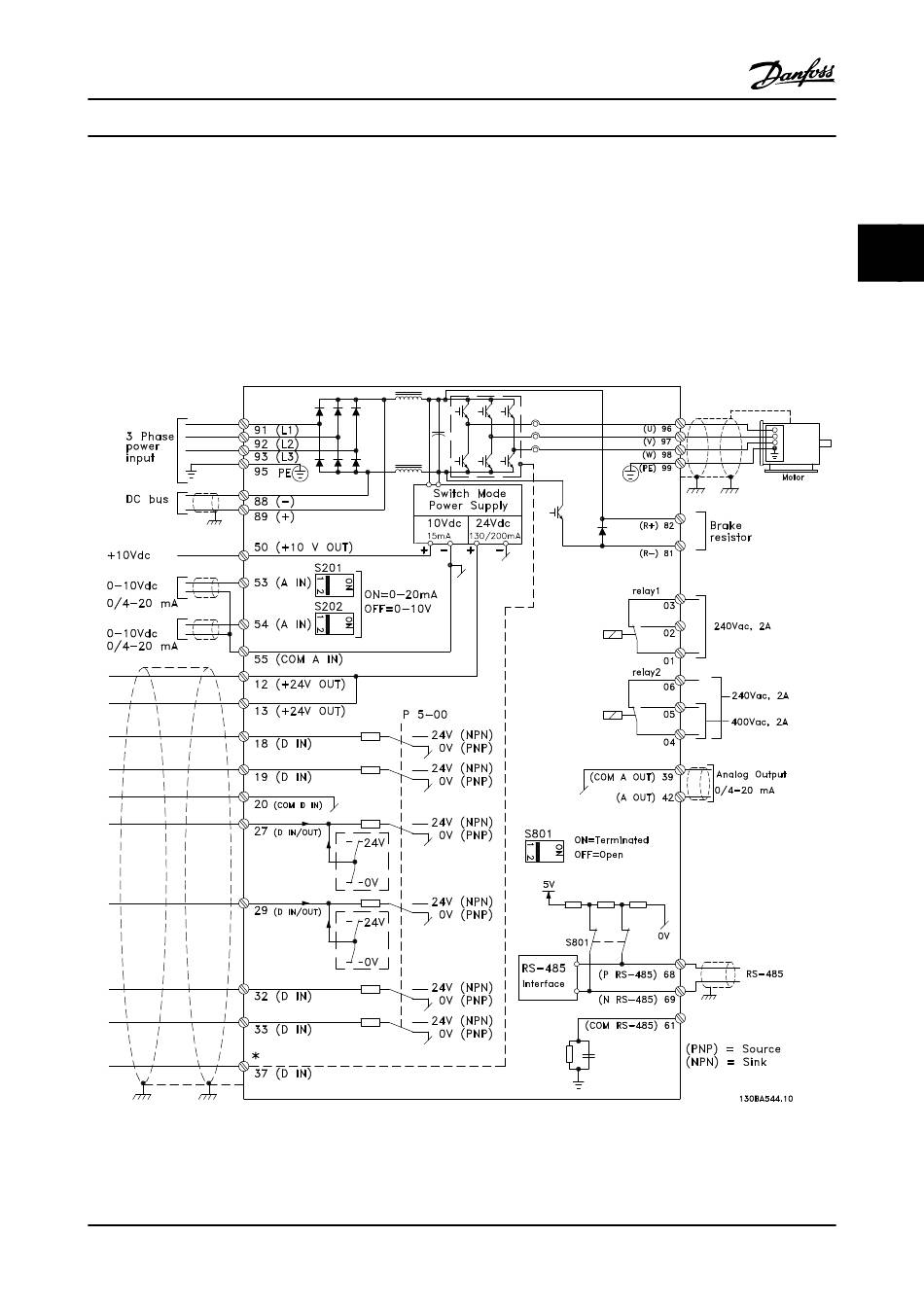

Figure 2.4 Basic Wiring Schematic Drawing.
* Terminal 37 is an option
®
VLT
AQUA Drive
Instruction Manual
Figure 2.4 shows a basic electrical connection.
®
