Installation
•
Ground the cable in accordance with grounding
instructions provided.
•
Torque terminals in accordance with the
information provided in 10.4.1 Connection
Tightening Torques
•
Follow the motor manufacturer wiring
requirements
The three following figures represent line power input,
motor, and ground for basic adjustable frequency drives.
Actual configurations vary with unit types and optional
equipment.

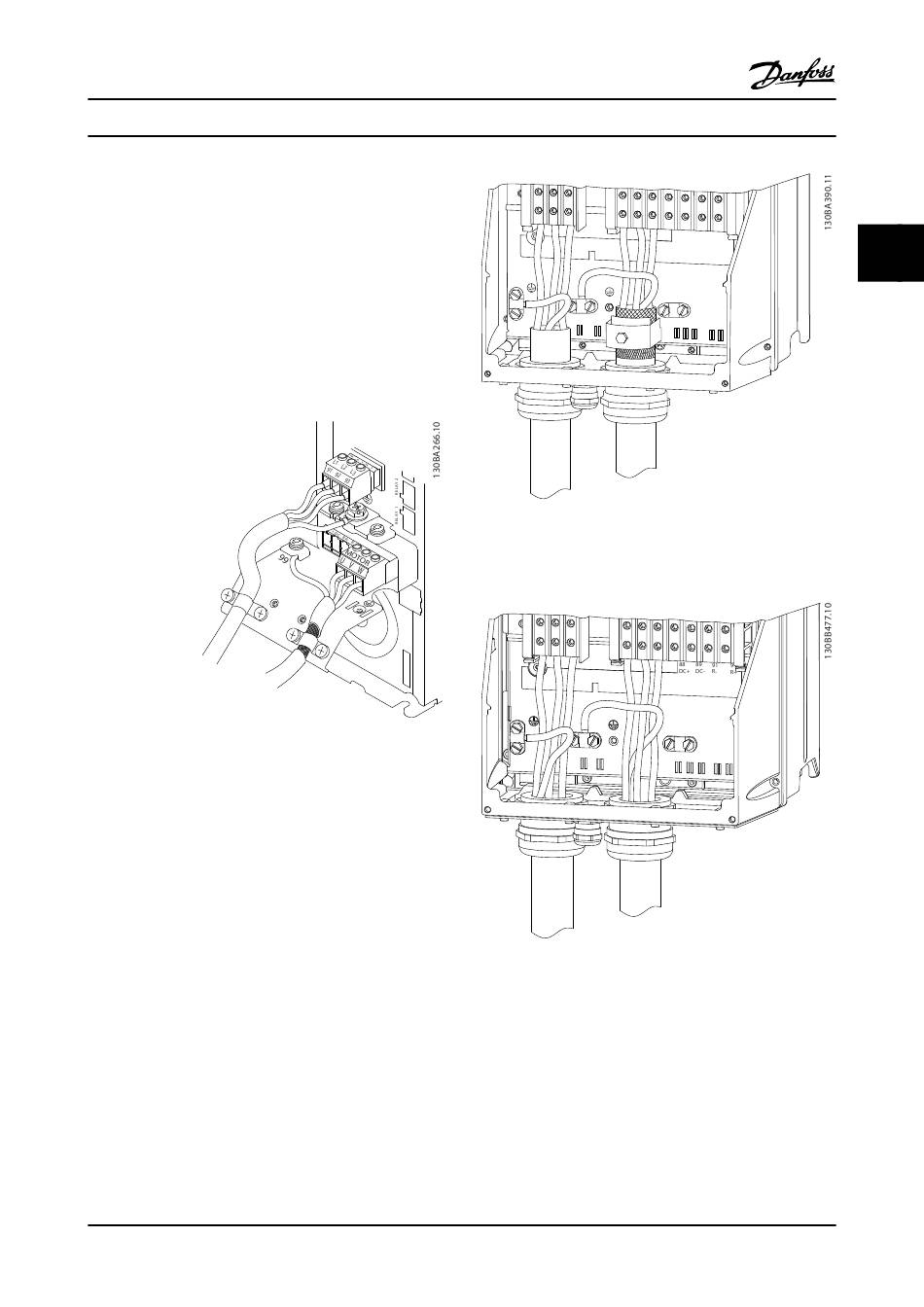

Figure 2.8 Motor, Line Power and Ground
Wiring for A-Frame Sizes
®
VLT AQUA Drive
Instruction Manual
Figure 2.9 Motor, Line Power and Ground Wiring
for B-Frame Sizes and Above Using
Shielded Cable
- LC -
Figure 2.10 Motor, Line Power and Ground Wiring
for B-Frame Sizes and Above Using Conduit
®
