Danfoss VLT AQUA Drive FC 202 Instruction Manual page 58

Application Set-up Examples
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
6 6 55
A OUT
42
COM
39
01
02
03
04
05
06
61
68
69

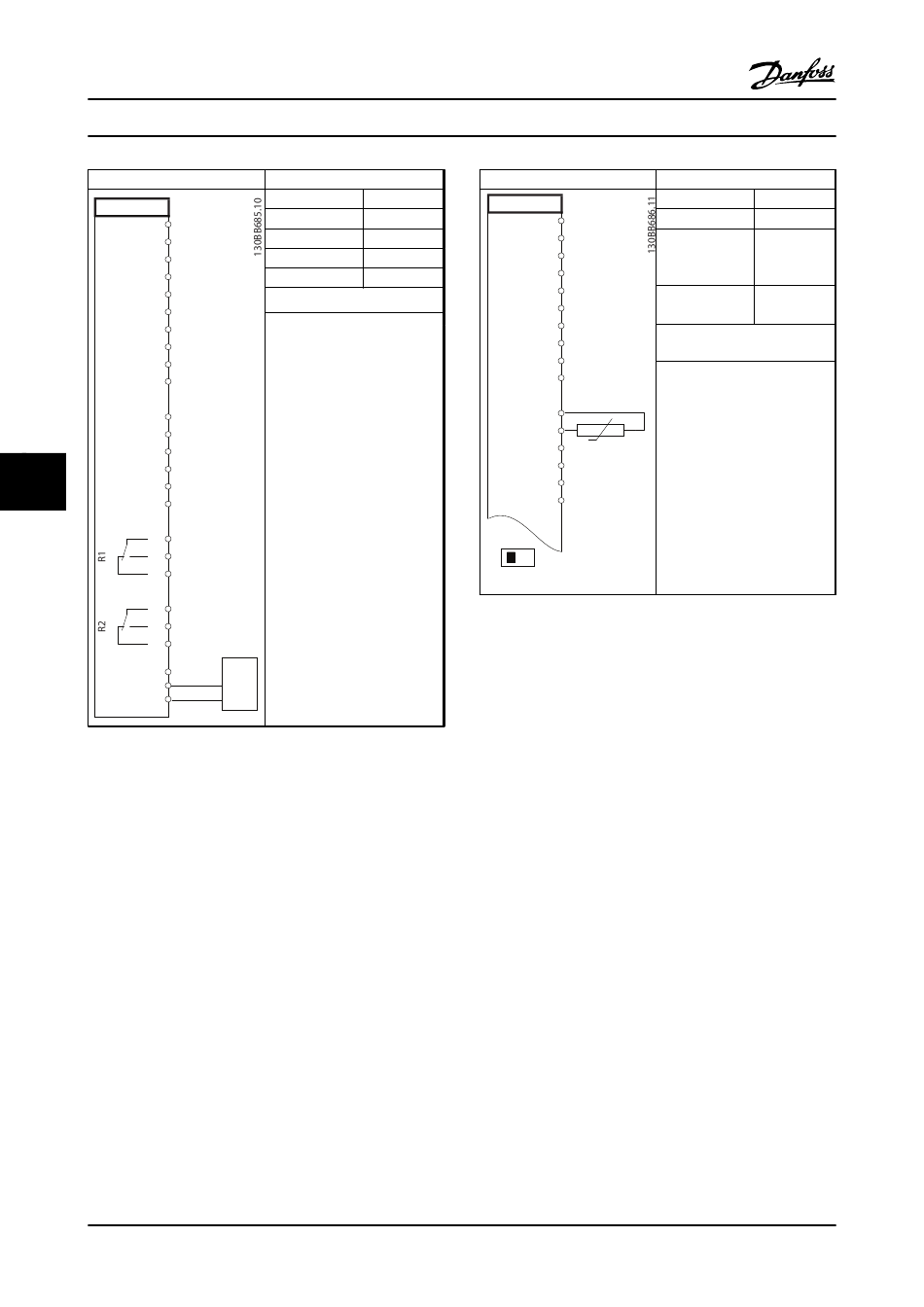

Table 6.11 RS-485 Network Connection (N2, Modbus RTU, FC)
CAUTION
Thermistors must use reinforced or double insulation to
meet PELV insulation requirements.
6-4
®
VLT AQUA Drive
Instruction Manual
Parameters
Function Setting
8-30 Protocol FC*
8-31 Address 1*
8-32 Baud Rate 9600*
* = Default Value
Notes/comments:
Select protocol, address and
baud rate in the above
mentioned parameters.
RS-485
+
-
MG20M922 - VLT
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 6.12 Motor Thermistor
®
is a registered Danfoss trademark
Parameters
Function Setting
1-90 Motor [2]
Thermal Thermistor
Protection trip
1-93 Thermistor [1] Analog
Source input 53
* = Default Value
Notes/comments:
If only a warning is desired,
1-90 Motor Thermal Protection
should be set to [1] Thermistor
warning.
