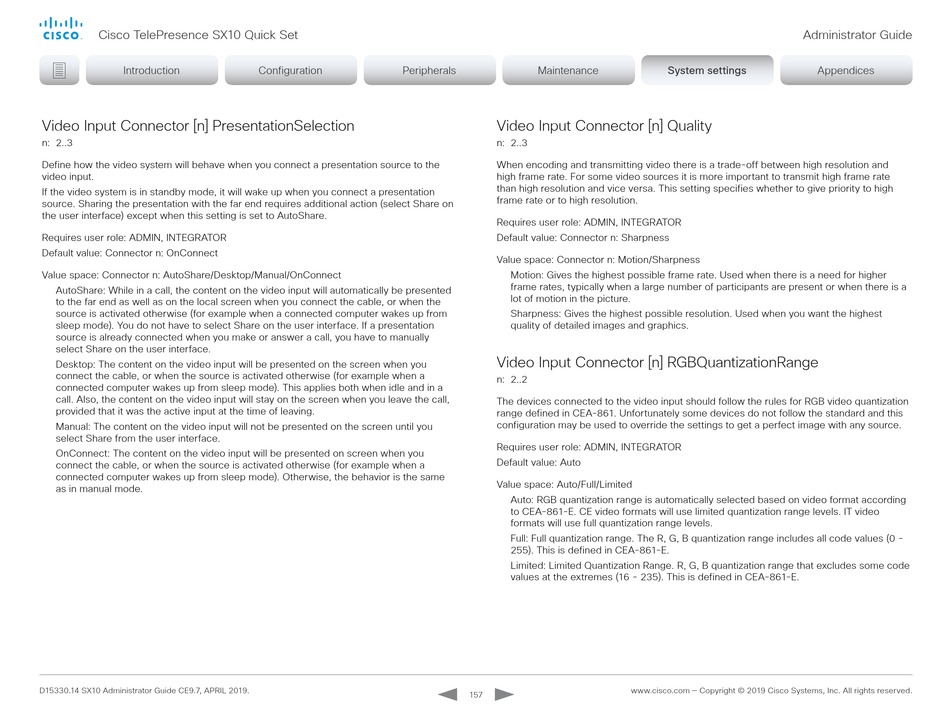

Video Input Connector [n] PresentationSelection

n: 2..3
Define how the video system will behave when you connect a presentation source to the
video input.
If the video system is in standby mode, it will wake up when you connect a presentation
source. Sharing the presentation with the far end requires additional action (select Share on
the user interface) except when this setting is set to AutoShare.
Requires user role: ADMIN, INTEGRATOR
Default value: Connector n: OnConnect
Value space: Connector n: AutoShare/Desktop/Manual/OnConnect
AutoShare: While in a call, the content on the video input will automatically be presented
to the far end as well as on the local screen when you connect the cable, or when the
source is activated otherwise (for example when a connected computer wakes up from
sleep mode). You do not have to select Share on the user interface. If a presentation
source is already connected when you make or answer a call, you have to manually
select Share on the user interface.
Desktop: The content on the video input will be presented on the screen when you
connect the cable, or when the source is activated otherwise (for example when a
connected computer wakes up from sleep mode). This applies both when idle and in a
call. Also, the content on the video input will stay on the screen when you leave the call,
provided that it was the active input at the time of leaving.
Manual: The content on the video input will not be presented on the screen until you
select Share from the user interface.
OnConnect: The content on the video input will be presented on screen when you
connect the cable, or when the source is activated otherwise (for example when a
connected computer wakes up from sleep mode). Otherwise, the behavior is the same
as in manual mode.
D15330.14 SX10 Administrator Guide CE9.7, APRIL 2019.
Configuration Peripherals Maintenance

Video Input Connector [n] Quality

n: 2..3
When encoding and transmitting video there is a trade-off between high resolution and
high frame rate. For some video sources it is more important to transmit high frame rate
than high resolution and vice versa. This setting specifies whether to give priority to high
frame rate or to high resolution.
Requires user role: ADMIN, INTEGRATOR
Default value: Connector n: Sharpness
Value space: Connector n: Motion/Sharpness
Motion: Gives the highest possible frame rate. Used when there is a need for higher
frame rates, typically when a large number of participants are present or when there is a
lot of motion in the picture.
Sharpness: Gives the highest possible resolution. Used when you want the highest
quality of detailed images and graphics.

Video Input Connector [n] RGBQuantizationRange

n: 2..2
The devices connected to the video input should follow the rules for RGB video quantization
range defined in CEA-861. Unfortunately some devices do not follow the standard and this
configuration may be used to override the settings to get a perfect image with any source.
Requires user role: ADMIN, INTEGRATOR
Default value: Auto
Value space: Auto/Full/Limited
Auto: RGB quantization range is automatically selected based on video format according
to CEA-861-E. CE video formats will use limited quantization range levels. IT video
formats will use full quantization range levels.
Full: Full quantization range. The R, G, B quantization range includes all code values (0 -
255). This is defined in CEA-861-E.
Limited: Limited Quantization Range. R, G, B quantization range that excludes some code
values at the extremes (16 - 235). This is defined in CEA-861-E.
