Introduction

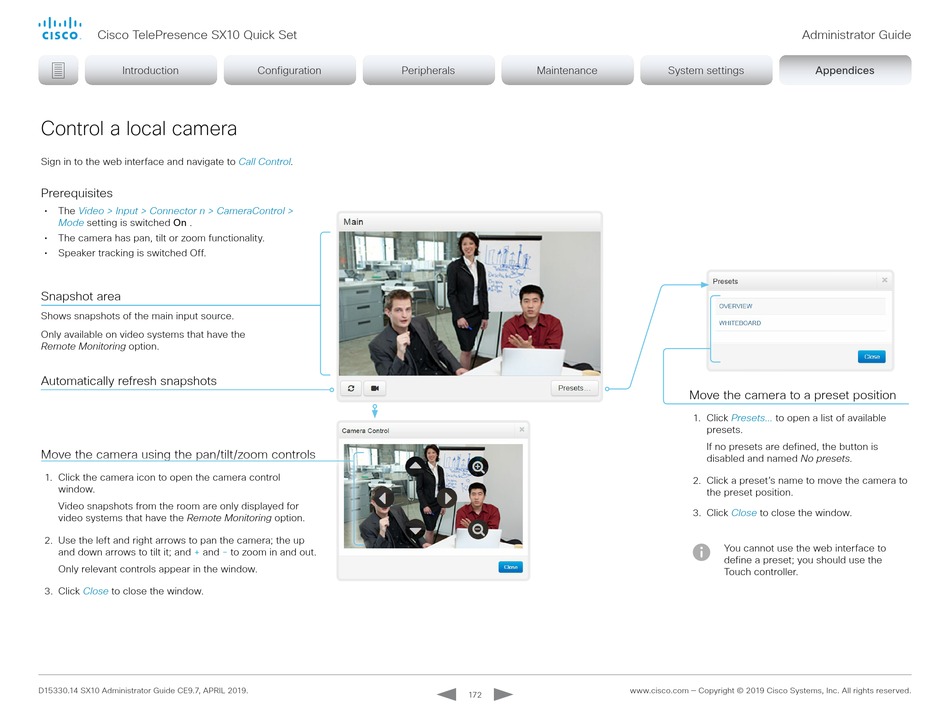

Control a local camera

Sign in to the web interface and navigate to
Prerequisites
• The Video > Input > Connector n > CameraControl >
Mode setting is switched On .
• The camera has pan, tilt or zoom functionality.
• Speaker tracking is switched Off.
Snapshot area
Shows snapshots of the main input source.
Only available on video systems that have the
Remote Monitoring option.
Automatically refresh snapshots
Move the camera using the pan/tilt/zoom controls
1. Click the camera icon to open the camera control
window.
Video snapshots from the room are only displayed for
video systems that have the Remote Monitoring option.
2. Use the left and right arrows to pan the camera; the up
and down arrows to tilt it; and + and
Only relevant controls appear in the window.
3. Click Close to close the window.
D15330.14 SX10 Administrator Guide CE9.7, APRIL 2019.
Configuration Peripherals
Call Control.
- to zoom in and out.
Maintenance
www.cisco.com — Copyright © 2019 Cisco Systems, Inc. All rights reserved.
172
Administrator Guide
System settings Appendices Appendices
Move the camera to a preset position
1. Click Presets... to open a list of available
presets.
If no presets are defined, the button is
disabled and named No presets.
2. Click a preset's name to move the camera to
the preset position.
3. Click Close to close the window.
You cannot use the web interface to
define a preset; you should use the
Touch controller.
