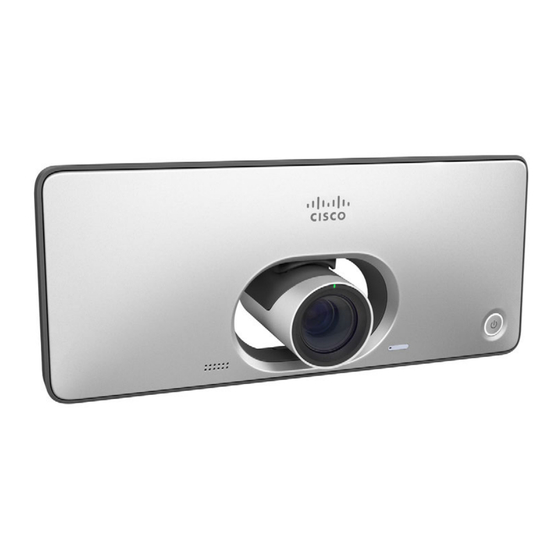

Cisco TelePresence SX10 Installation Manual

1080p teleconference system.
Hide thumbs


Advertisement

Cisco TelePresence
SX10 Quick Set
INSTALLATION GUIDE
78-100213-04A0 | JUNE 2018
© 2018 Cisco Systems, Inc. All rights reserved.

Advertisement

   Summary of Contents for cisco TelePresence SX10

  • Page 1

    Cisco TelePresence SX10 Quick Set INSTALLATION GUIDE 78-100213-04A0 | JUNE 2018 © 2018 Cisco Systems, Inc. All rights reserved.

  • Page 2

    (1.8 m / 5.9 ft) 2 × AAA batteries Accessories (ordered separately): • Cisco Touch 10 controller • VESA screen mounting kit • VGA presentation cable (8 m / 26.2 ft) • HDMI presentation cable (8 m / 26.2 ft)

  • Page 3

    SX10. For more on room guidelines and recommendations for other scenarios visit: collaborationhelp.cisco.com and www.cisco.com/go/projectworkplace Measure screen depth to determine the SX10 installation height The thicker the screen, the further up from the screen you should install the SX10.

  • Page 4

    SX10 wall mount You need: Ø 4 mm • Drill • Tape measure • 2 screws, Ø4 mm • Screwdriver • Level • Pencil Ø 4 mm This type of equipment is to be installed by the submittor’s/dealer’s qualified installer. Installer is respon- sible for obtaining safety inspection of the structural integrity of the installation by the local authority/ inspection department.

  • Page 5

    Connect the cables Monitor output, Ethernet/PoE HDMI Power 1. Connect the SX10 to your screen with the provided HDMI cable. 2. Connect the LAN cable from the SX10 to an Ethernet wall plug. If Power over Ethernet (PoE) is available, the SX10 is powered through this cable. Alternatively you can use a PoE injector.

  • Page 6

    Webex services Cisco Webex If you have a Cisco Webex subscription, you can use the remote control to set it up and the Cisco Webex Teams app to control the system. Lorem ipsum To find more information on how to get started with Webex registered systems, visit collaborationhelp.cisco.com and look for the Getting Started articles for room devices.

  • Page 7: Remote Control

    User guides Cisco Webex To find more information on Webex registered room devices, visit: collaborationhelp.cisco.com Other services For user guides and compliance and safety information for this product, visit: www.cisco.com/go/sx-docs Remote control Volume control and Increase/Decrease control Field selector OK/Enter...

  • Page 8

    San Jose, CA 95134 USA Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners.
