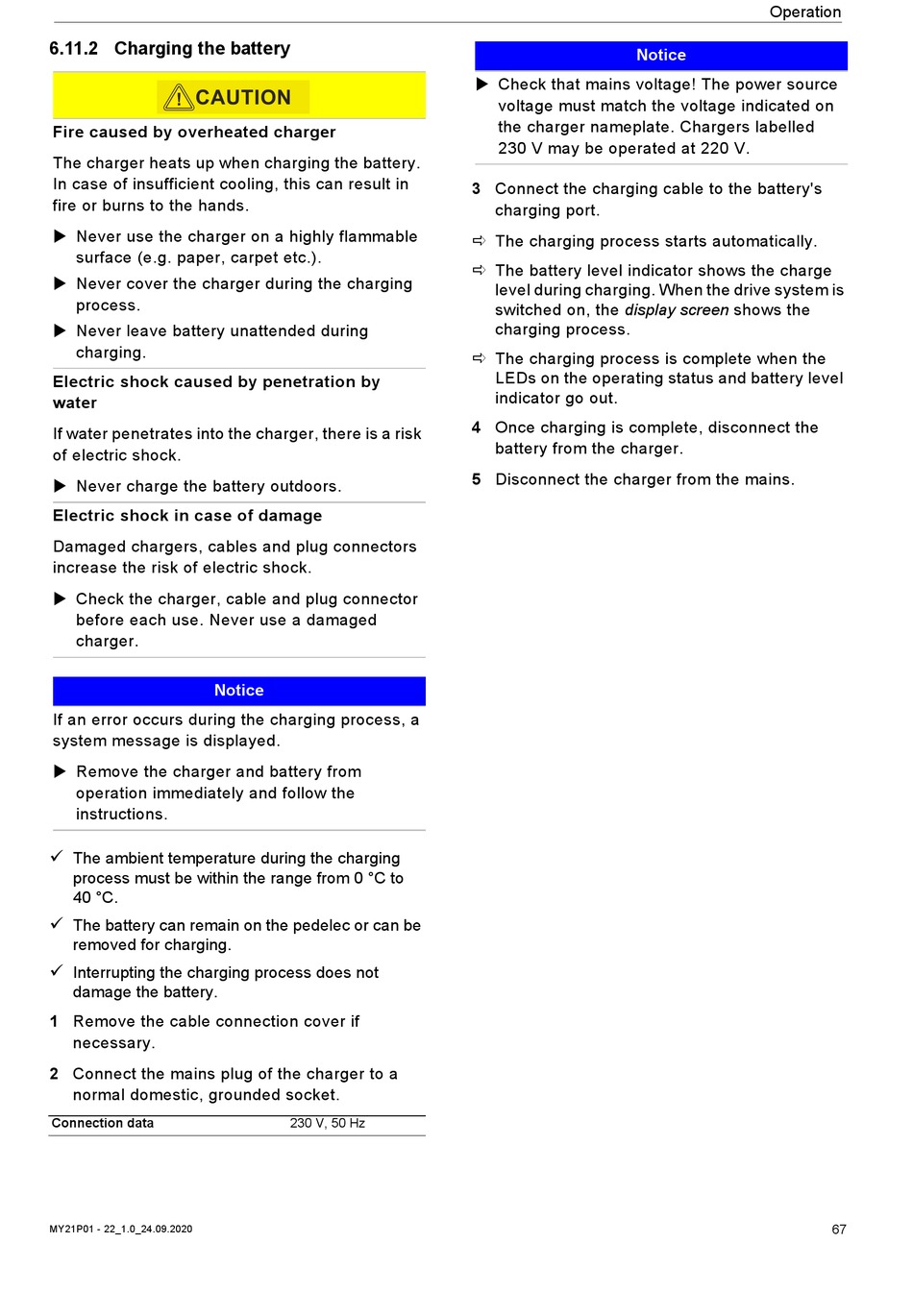

6.11.2 Charging the battery

CAUTION
!
Fire caused by overheated charger
The charger heats up when charging the battery.
In case of insufficient cooling, this can result in
fire or burns to the hands.
 Never use the charger on a highly flammable
surface (e.g. paper, carpet etc.).
 Never cover the charger during the charging
process.
 Never leave battery unattended during
charging.
Electric shock caused by penetration by
water
If water penetrates into the charger, there is a risk
of electric shock.
 Never charge the battery outdoors.
Electric shock in case of damage
Damaged chargers, cables and plug connectors
increase the risk of electric shock.
 Check the charger, cable and plug connector
before each use. Never use a damaged
charger.
Notice
If an error occurs during the charging process, a
system message is displayed.
 Remove the charger and battery from
operation immediately and follow the
instructions.
The ambient temperature during the charging
process must be within the range from 0 °C to
40 °C.
The battery can remain on the pedelec or can be
removed for charging.
Interrupting the charging process does not
damage the battery.
1 Remove the cable connection cover if
necessary.
2 Connect the mains plug of the charger to a
normal domestic, grounded socket.
Connection data
MY21P01 - 22_1.0_24.09.2020
230 V, 50 Hz
Notice
 Check that mains voltage! The power source
voltage must match the voltage indicated on
the charger nameplate. Chargers labelled
230 V may be operated at 220 V.
3 Connect the charging cable to the battery's
charging port.
 The charging process starts automatically.
 The battery level indicator shows the charge
level during charging. When the drive system is
switched on, the display screen shows the
charging process.
 The charging process is complete when the
LEDs on the operating status and battery level
indicator go out.
4 Once charging is complete, disconnect the
battery from the charger.
5 Disconnect the charger from the mains.
Operation
67
