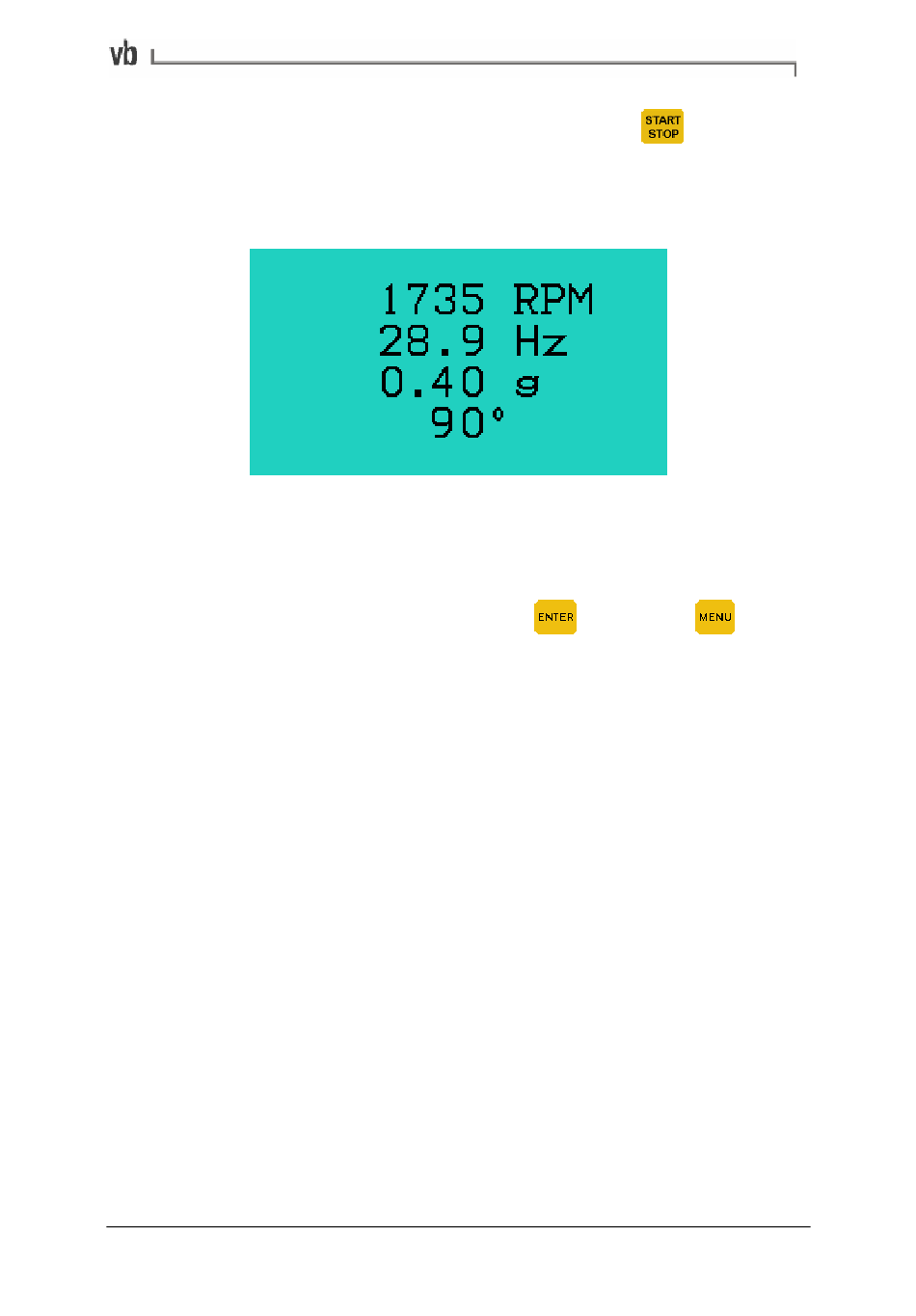

Now test if the tachometer will trigger. Press
the running values screen. (The instrument will beep if it
cannot detect a tachometer signal and a 'No tach. signal'
message will display).
•
Ensure a stable RPM is displayed on the screen. This
indicates that the tachometer is triggering reliably. If the RPM
does not stabilize, adjust the position of the sensor.
•
To return to the Main Menu press

Using a Strobe

If you have a strobe light with an output signal it should be possible
to connect it to the tachometer input of the instrument (however,
there are many strobes on the market with different types of output
signal and connectors). If your strobe light has a BNC connector and
gives a TTL output (0 to 5) V you can purchase a suitable cable from
Commtest Instruments Ltd via your distributor.
For other types of connectors and signals please consult the FAQ
(Frequently Asked Questions) articles on the Commtest website
www.commtest.com.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
to display
then press
Section 2: Basic Operation
twice.
