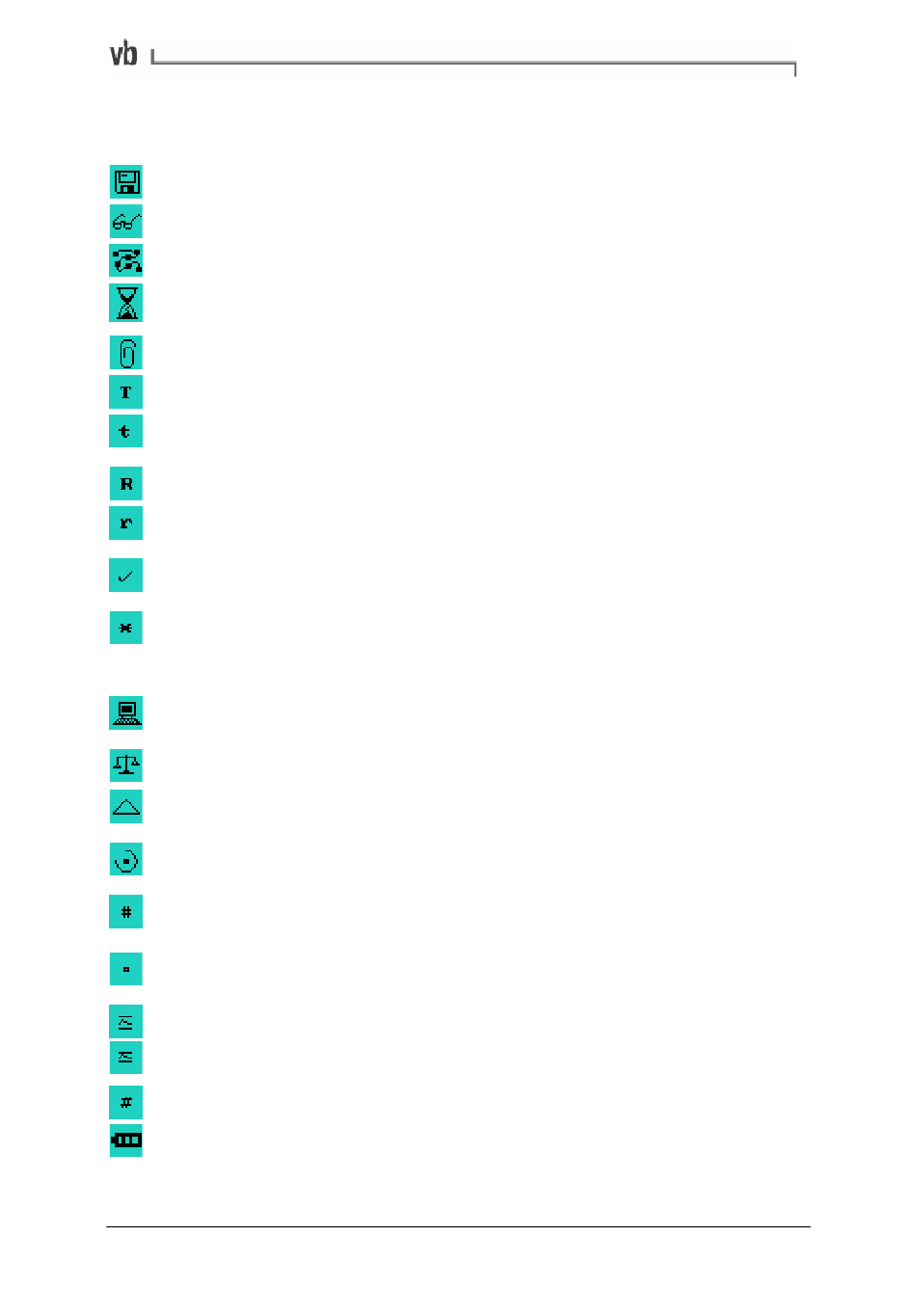

Instrument Icons

The instrument is in spectra recording mode.
The instrument is in spectra review mode.
The instrument is in route mode.
The instrument is waiting for the hardware to stabilize before
taking a measurement.
There is a note attached to this item.
This item is tagged.
Only some items have been tagged on this machine, point
or direction/axis.
Indicates this item is part of a route.
Only some items have been selected for a route on this
machine, point, or direction/axis.
One or more recordings have been taken within this
machine, point, or direction/axis.
This machine structure has been defined (name, point,
direction/axis and parameter set), but no recordings have
been taken.
The instrument is communicating with a PC through the
Ascent software.
This machine has balancing data saved with it.
A delta symbol used to show the frequency or time
difference between two peaks of a spectrum.
Indicates that the circumference arc of the rotor is being
used as a weight position reference for balancing.
Indicates that a fixed number of attachment points are being
used as a weight position reference for balancing.
Indicates that degrees are being used as a weight position
reference for balancing.
The halt after recording 'relaxed' baseline warning is active.
The halt after recording 'tight' baseline warning is active.
This parameter set is used with a keypad schedule entry.
The battery is running low and needs charging.
