Number of Planes

(vb3000 and vb2000 only)
•
Press

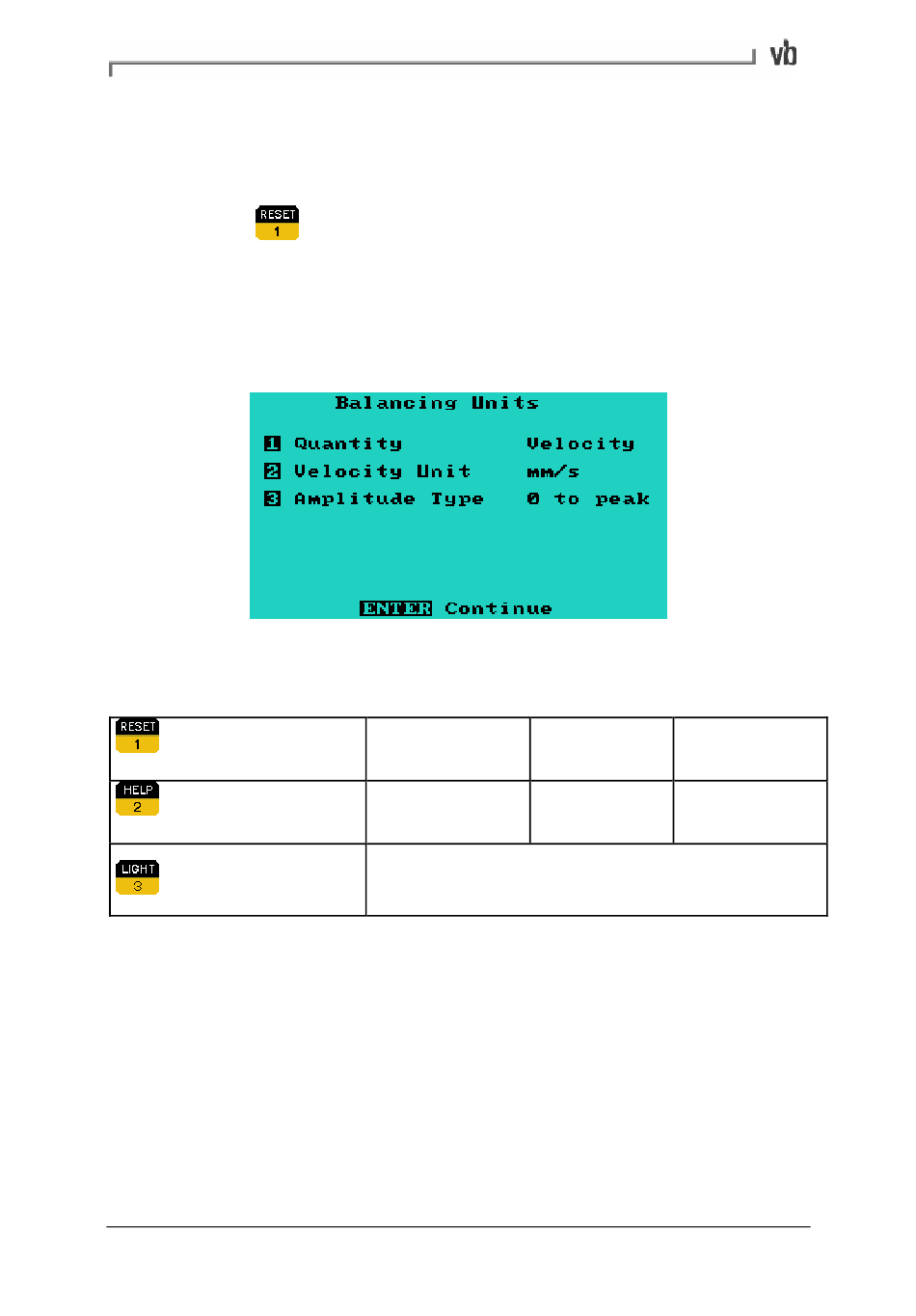

Balancing Units

The Balancing Units Menu allows you to select different balancing
units.
Available units are: (press the appropriate number key to toggle the
setting)
Quantity
Units
Amplitude Type

Weight Orientation

This option allows you to choose where to place balance weights on
a rotor relative to the rotor's direction of rotation.
With rotation (WR) means you choose a reference point then place
your weights forward of that point in the direction of rotation (i.e. in
the same direction as the rotor turns).
