2.3 The Hold-down Clamp

The IPC-610F uses a hold-down clamp to ensure the plug-in cards are securely fastened. It also offers
protection against shock and vibration. To install your cards into the passive backplane, proceed as
follows:
1. Detach the hold-down clamp by removing the two screws located at each end and lifting it off the
chassis. (See Fig. 2-4)
2. Insert the rubber buffers (provided) into the hold-down clamp. These buffers offer the plug-in cards
two levels of protection against vibration. (See Fig. 2-5)

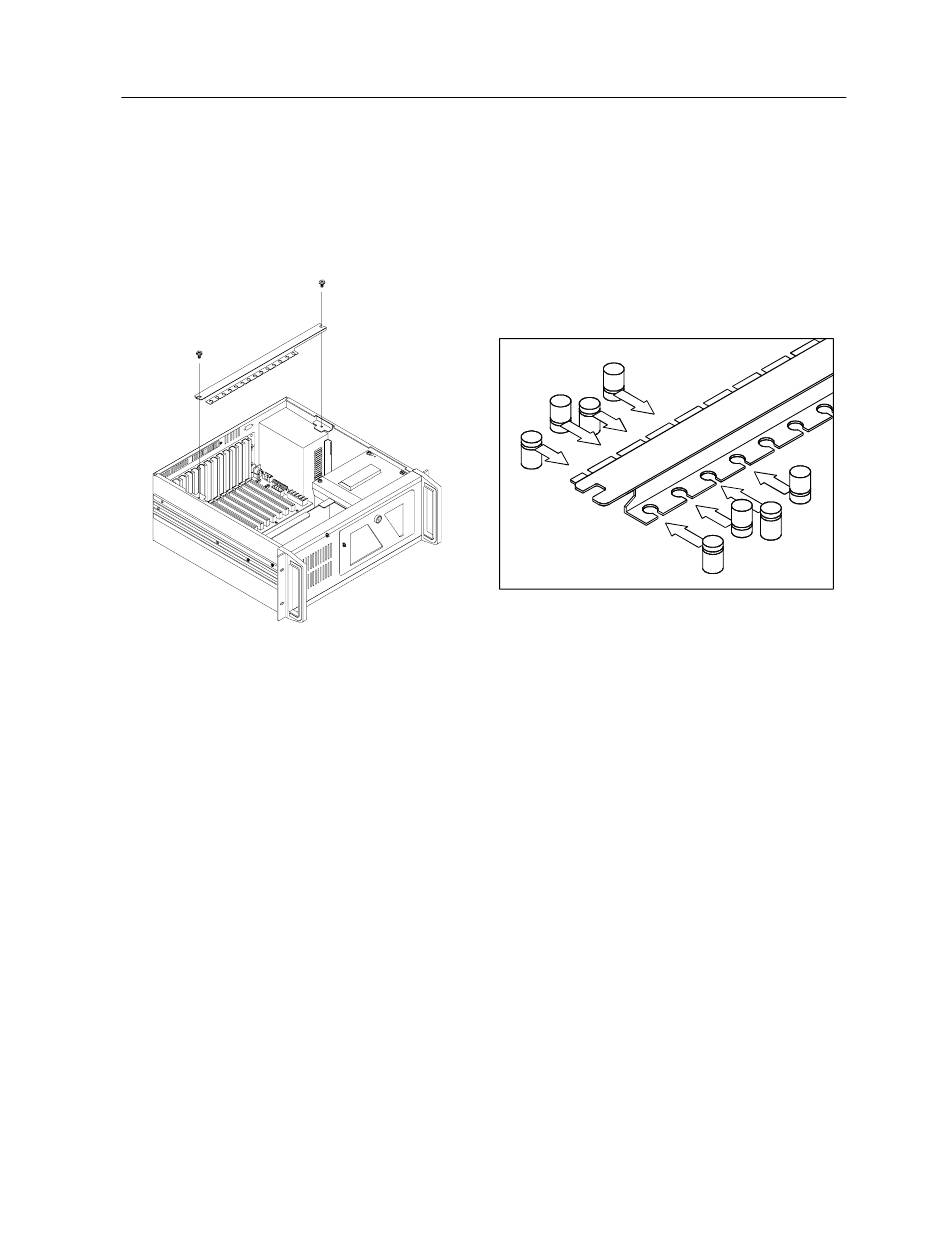

Figure 2-4: Detaching the hold-down clamp
6 IPC-610F User's Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Figure 2-5: Inserting the rubber buffers
