Chapter 2 System Setup

Setting up your IPC-610F requires only a screwdriver and a small amount of time. Before you begin,
you should also gather together all of the cards you plan to install, as well as the keyboard you plan to
use.
A lockable door is located on the chassis front cover, providing access to the control panel. This offers
protection and security against damage and unauthorized access. The control panel functions include
power on/off, keyboard lock, reset switch and three LED indicators (power on, keyboard lock and
HDD) to assist in monitoring system status. On the rear panel there is a grounding point (earthing
point) located on the bottom right hand corner. This provides an earth for the whole system and is
attached via a screw.
WARNING: Disconnect all power from the chassis before you install the CPU cards. Unplug
the power cord from the wall; turning off the power switch alone is not sufficient. If
you are not sure what to do, take the job to an experienced professional.

2.1 Removing the Cover

There are screws which secure the cover to the chassis. They are along the sides, near the top. Re-
move them, and then slide the cover to the rear of the chassis. See Fig. 2-1 below:

2.2 Adding Your Disk Drives

1. Remove the four outer screws which mount the shock-resistant drive-bay to the chassis. (See Fig. 2-2)
2. Slide the drive bay about 2 cm toward the rear, to a location where it is not obstructed by the upper
rim. Lift it free of the chassis.
3. Remove the cover to the drive bay front and insert the drives into their proper locations in the drive
bay. (See Fig. 2-3)
Figure 2-2: Inserting/removing the drive bay
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

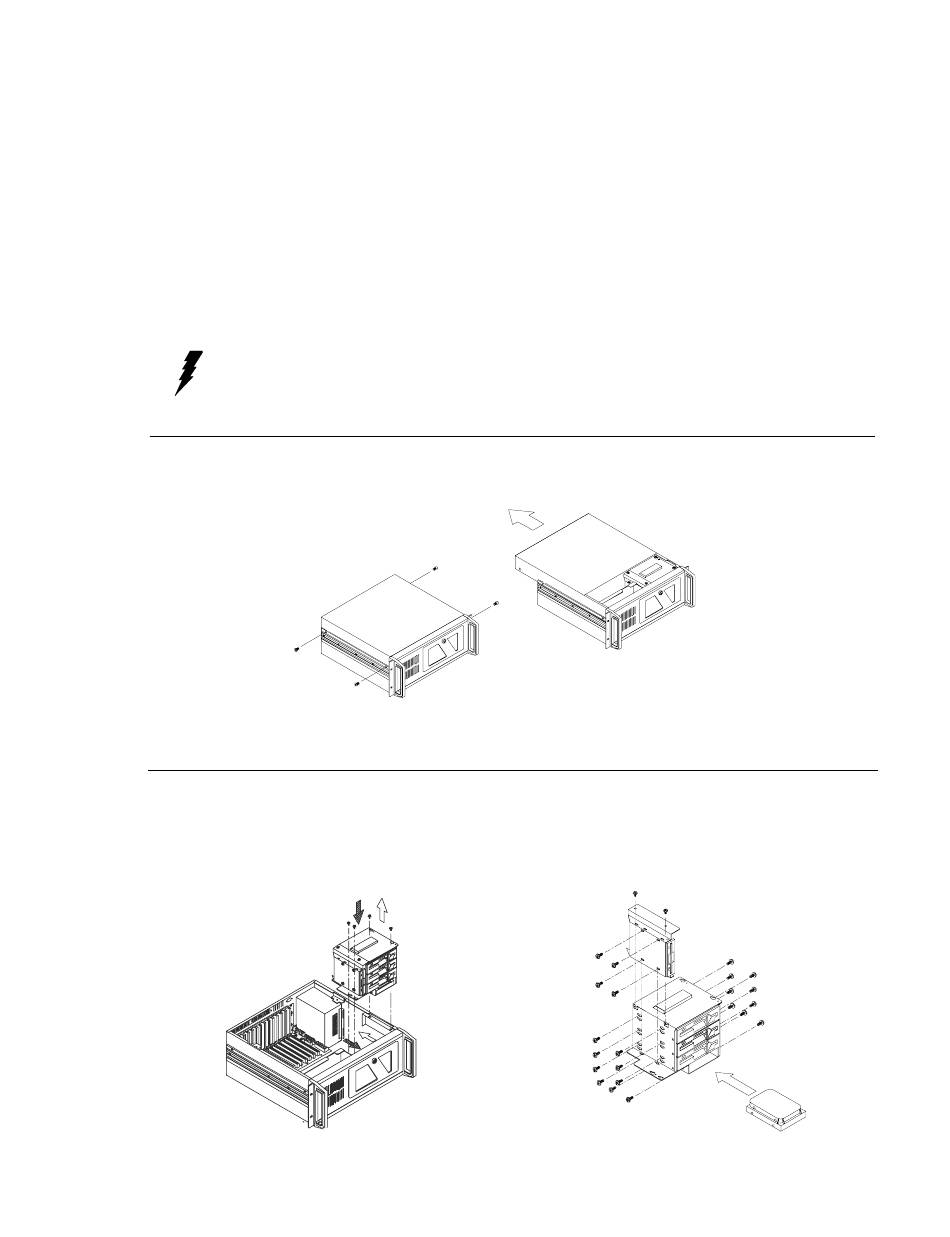

Figure 2-1: Removing the cover
