Goodrive600 series high-performance multifunction VFD

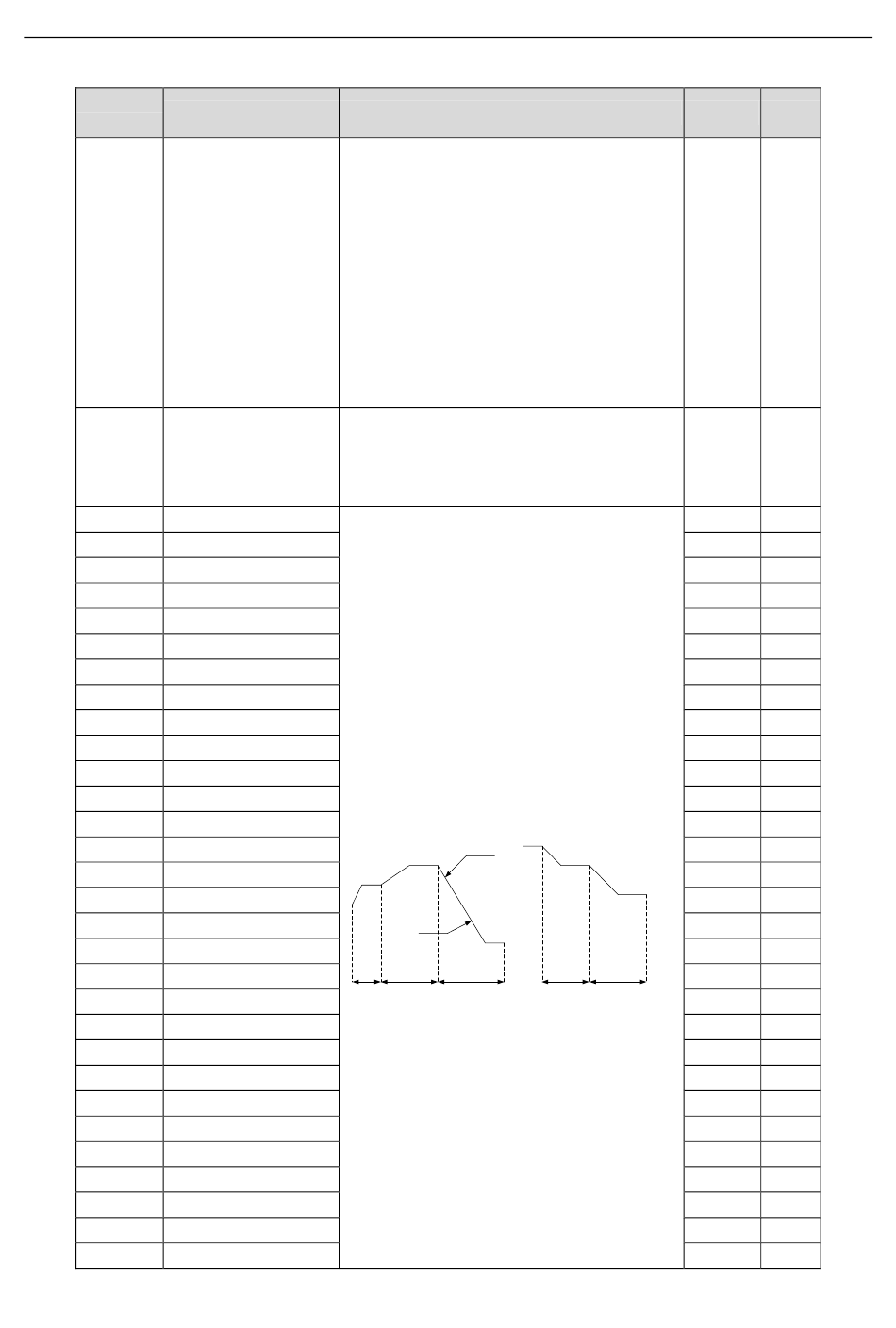

P10 group––Simple PLC and multi-step speed control
Function
code
P10.00 Simple PLC mode
Simple PLC memory
P10.01
P10.02 Multi-step speed 0
P10.03 Running time of step 0
P10.04 Multi-step speed 1
P10.05 Running time of step 1
P10.06 Multi-step speed 2
P10.07 Running time of step 2
P10.08 Multi-step speed 3
P10.09 Running time of step 3
P10.10 Multi-step speed 4
P10.11 Running time of step 4
P10.12 Multi-step speed 5
P10.13 Running time of step 5
P10.14 Multi-step speed 6
P10.15 Running time of step 6
P10.16 Multi-step speed 7
P10.17 Running time of step 7
P10.18 Multi-step speed 8
P10.19 Running time of step 8
P10.20 Multi-step speed 9
P10.21 Running time of step 9
P10.22 Multi-step speed 10
P10.23 Running time of step 10
P10.24 Multi-step speed 11
P10.25 Running time of step 11
P10.26 Multi-step speed 12
P10.27 Running time of step 12
P10.28 Multi-step speed 13
P10.29 Running time of step 13
P10.30 Multi-step speed 14
P10.31 Running time of step 14
Name
0: Stop after running once; the inverter unit stops
automatically after running for one cycle, and it
can be started only after receiving the running
command.
1: Keep running in the final value after running
for one cycle. The inverter unit keeps the running
frequency and direction of the last section after a
single cycle.
2: Cyclic running. The inverter unit enters the
next cycle after completing one cycle until
receiving the stop command.
0: No memory after power-off
1: Memory after power-off. The PLC memories
selection its running stage and running frequency before
power-off.
Frequency setting range for steps from step 0 to
step 15: -100.0–100.0%. 100.0% corresponds to
the max. output frequency P00.03.
Running time setting range for steps from step 0
to step 15: 0.0–6553.5s(min). The time unit is
specified by P10.37.
When simple PLC operation is selected, it is
required to set P10.02–P10.33 to determine the
running frequency and running time of each step.
Note: The symbol of multi-step speed
determines the running direction of simple
PLC, and the negative value means reverse
running.
P10.02
P10.03
When selecting multi-step speed running, the
multi-step speed is within the range of -fmax–
fmax, and it can be set continuously. The
start/stop of multi-step stop running is also
determined by P00.01.
The inverter unit supports the setting of speeds
of 16 steps, which are set by combined codes of
multi-step terminals 1–4 (set by S terminals,
corresponding to function code P05.01–P05.04)
and correspond to multi-step speed 0 to
multi-step speed 15.
Description
DEC time
P10.28
(two steps)
P10.04
ACC time
(two steps)
P10.06
P10.05 P10.07 P10.31
-291-
Function parameter list
Default Modify
0
0
0.0%
0.0s (min)
0.0%
0.0s (min)
0.0%
0.0s (min)
0.0%
0.0s (min)
0.0%
0.0s (min)
0.0%
0.0s (min)
0.0%
0.0s (min)
P10.30
0.0%
P10.32
0.0s (min)
0.0%
0.0s (min)
0.0%
P10.33
0.0s (min)
0.0%
0.0s (min)
0.0%
0.0s (min)
0.0%
0.0s (min)
0.0%
0.0s (min)
0.0%
0.0s (min)
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
