26.2 Piping diagram: Outdoor unit

26.3 Wiring diagram: Outdoor unit

RXMLQ8 + RXYLQ10~14T7Y1B*
VRV IV system air conditioner
4P543427-1A – 2020.10

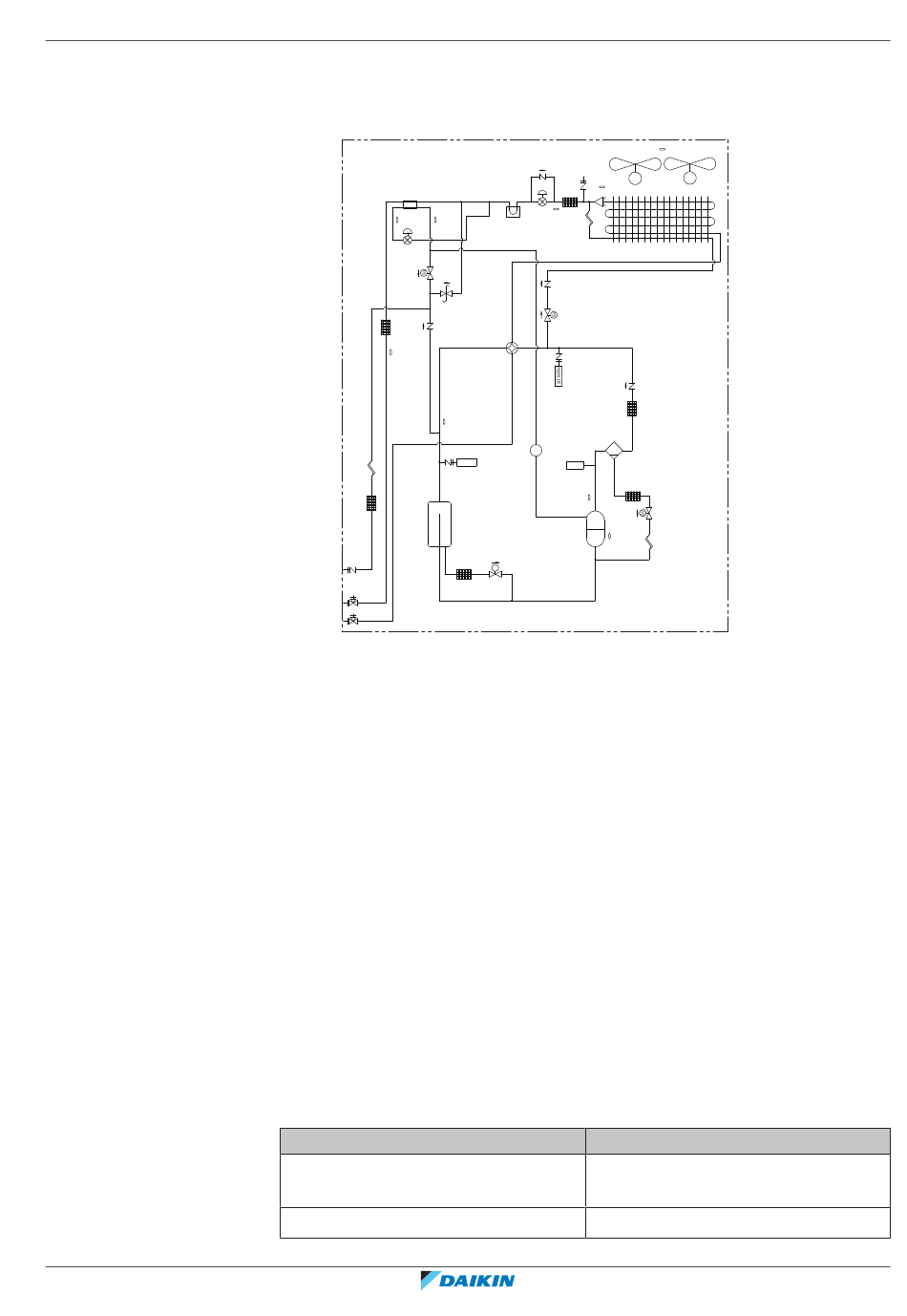

Piping diagram: RXMLQ8 + RXYLQ10~14
h
R10T
R6T
g
m
R5T
R3T
o
p
q
a Compressor (M1C)
b Heat exchanger
c Fan
d Fan motor (M1F, M2F)
e Accumulator
f Expansion valve, main (Y1E)
g Expansion valve, subcool heat exchanger (Y2E)
h Subcool heat exchanger
i Oil separator
j 4‑way valve, main (Y1S)
k Solenoid valve, oil accumulator (Y2S)
l Solenoid valve, oil1 (Y3S)
m Solenoid valve, injection (Y4S)
n Solenoid valve, hot gas (Y5S)
o Service port, refrigerant charge
p Stop valve (liquid)
q Stop valve (gas)
r Service port
The wiring diagram is delivered with the unit, located at the inside of the service
cover.
