24
|

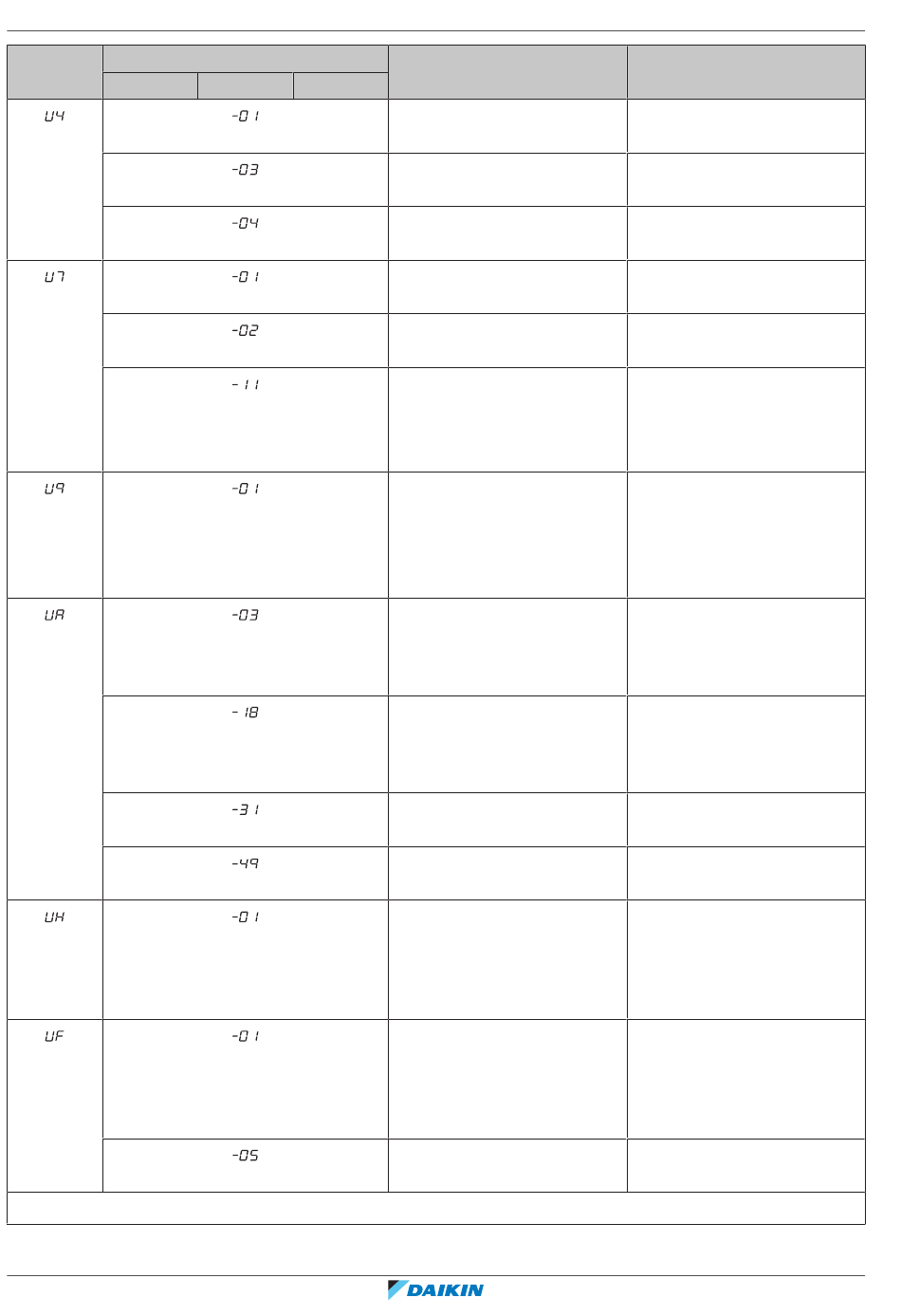

Troubleshooting
Main code
Master
Auto charging related
Installer and user reference guide
146
Sub code
Slave 1
Slave 2
Cause
Faulty wiring to Q1/Q2 or
indoor - outdoor
Faulty wiring to Q1/Q2 or
indoor - outdoor
System test run abnormal
ending
Warning: faulty wiring to Q1/
Q2
Malfunction code: faulty
wiring to Q1/Q2
▪
Too many indoor units are
connected to F1/F2 line
▪
Bad wiring between outdoor
and indoor units
System mismatch. Wrong type
of indoor units combined
(R410A, R407C, RA, Hydrobox,
etc)
Indoor unit malfunction
Connection malfunction over
indoor units or type mismatch
(R410A, R407C, RA, Hydrobox,
etc)
Connection malfunction over
indoor units or type mismatch
(R410A, R407C, RA, Hydrobox,
etc)
Wrong unit combination
(multi system)
Wrong unit combination
(multi system)
Auto address malfunction
(inconsistency)
Auto address malfunction
(inconsistency)
Stop valve closed or wrong
(during system test run)
Solution
Check (Q1/Q2) wiring.
Check (Q1/Q2) wiring.
Execute test run again.
Check Q1/Q2 wiring.
Check Q1/Q2 wiring.
Check indoor unit amount and
total capacity connected.
Check if other indoor units
have malfunction and confirm
indoor unit mix is allowed.
Check if other indoor units
have malfunction and confirm
indoor unit mix is allowed.
Check if other indoor units
have malfunction and confirm
indoor unit mix is allowed.
Check if unit types are
compatible.
Check if unit types are
compatible.
Check if transmission wired
unit amount matches with
powered unit amount (by
monitor mode) or wait till
initialisation is finished.
Check if transmission wired
unit amount matches with
powered unit amount (by
monitor mode) or wait till
initialisation is finished.
Open stop valves.
RXMLQ8 + RXYLQ10~14T7Y1B*
VRV IV system air conditioner
4P543427-1A – 2020.10
- Quick Links:
- Error Codes: Overview
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the VRV IV and is the answer not in the manual?
Questions and answers
Hi, kindly assist me with resolving the problem of the VRV IV series. It pops up from the remote control, and after checking the master and the slaves, both cannot identify their ID number. though the last error was e2. Someone messed up with the wiring, perhaps the communication cable. If we can see what cable goes to the first unit from the master, we have 16 units attached.
The troubleshooting steps for a Daikin VRV IV series system with an E2 error and communication issues between the master and slave units are:
1. Check Q1/Q2 Wiring: Inspect the wiring connections between the master and slave units at the Q1/Q2 terminals. Faulty or incorrect wiring can cause communication failures.
2. Verify Indoor-Outdoor Wiring: Ensure that the wiring between the indoor and outdoor units is correctly connected at the Q1/Q2 and F1/F2 terminals. Incorrect connections can lead to system malfunctions.
3. Check System Test Run: If the system test run was not executed or ended abnormally, perform the test run again to identify potential issues.
4. Confirm Indoor Unit Configuration: Ensure that the number of indoor units connected to the F1/F2 line does not exceed the system's capacity. Too many units can cause communication failures.
5. Inspect System Compatibility: Verify that the indoor units connected are compatible with the system (e.g., R410A, R407C, Hydrobox). Mixing incompatible units may cause communication issues.
6. Examine Outdoor Unit Wiring: Ensure that the interconnecting wiring between outdoor units in the same piping system is connected to the Q1/Q2 (Out Multi) terminals. Incorrect wiring to the F1/F2 terminals can cause system malfunctions.
Following these steps should help diagnose and resolve communication issues in the VRV IV system.
