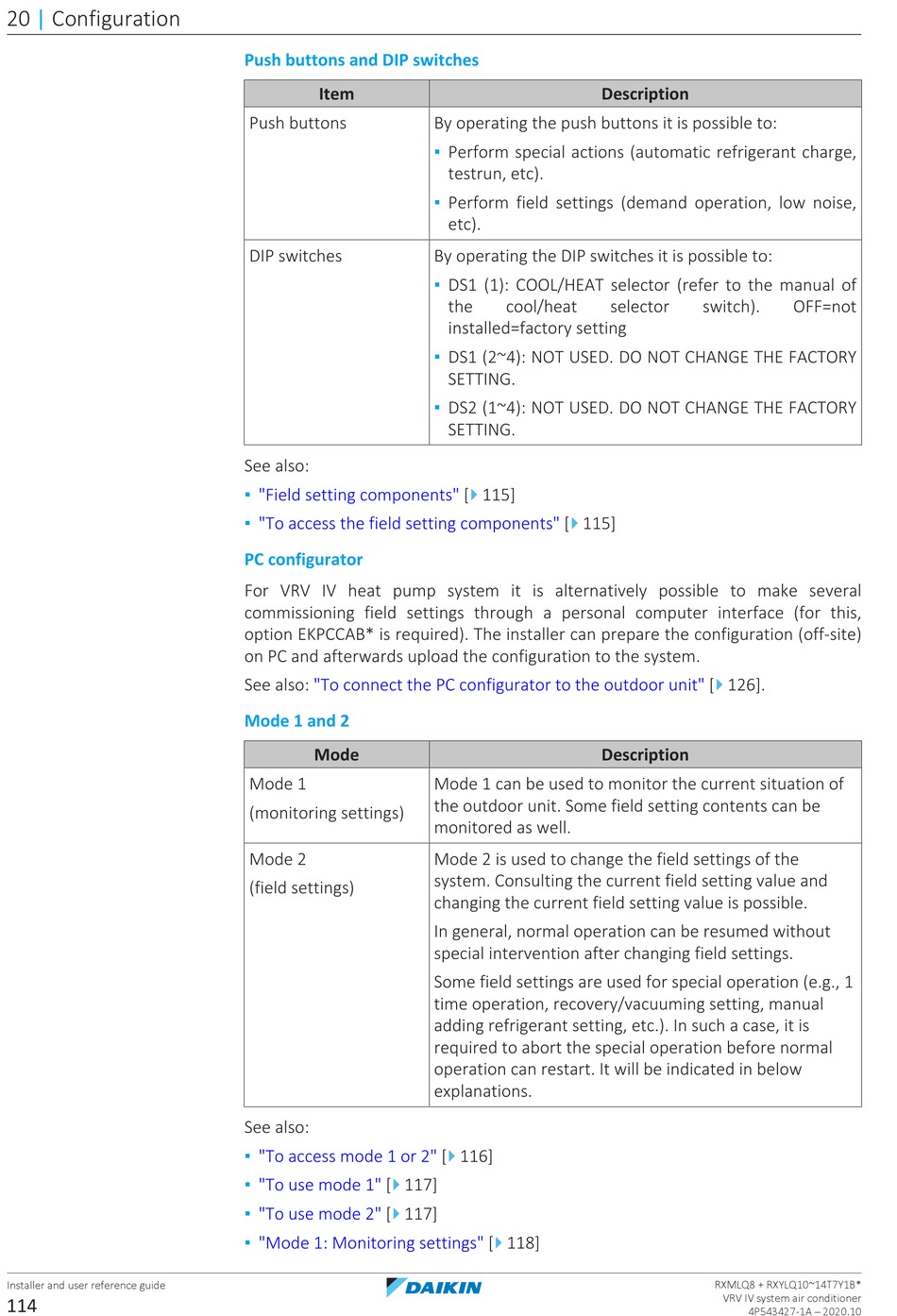

Configuration
Installer and user reference guide
114
Push buttons and DIP switches
Item
Push buttons
DIP switches
See also:
▪
"Field setting
components" [
▪
"To access the field setting
PC configurator
For VRV IV heat pump system it is alternatively possible to make several
commissioning field settings through a personal computer interface (for this,
option EKPCCAB* is required). The installer can prepare the configuration (off-site)
on PC and afterwards upload the configuration to the system.
See also:
"To connect the PC configurator to the outdoor
Mode 1 and 2
Mode
Mode 1
(monitoring settings)
Mode 2
(field settings)
See also:
▪
"To access mode 1 or
4
▪
"To use mode
1" [
117]
4
▪
"To use mode
2" [
117]
▪
"Mode 1: Monitoring
By operating the push buttons it is possible to:
▪
Perform special actions (automatic refrigerant charge,
testrun, etc).
▪
Perform field settings (demand operation, low noise,
etc).
By operating the DIP switches it is possible to:
▪
DS1 (1): COOL/HEAT selector (refer to the manual of
the
cool/heat
installed=factory setting
▪
DS1 (2~4): NOT USED. DO NOT CHANGE THE FACTORY
SETTING.
▪
DS2 (1~4): NOT USED. DO NOT CHANGE THE FACTORY
SETTING.
4
115]
4
components" [
115]
Mode 1 can be used to monitor the current situation of
the outdoor unit. Some field setting contents can be
monitored as well.
Mode 2 is used to change the field settings of the
system. Consulting the current field setting value and
changing the current field setting value is possible.
In general, normal operation can be resumed without
special intervention after changing field settings.
Some field settings are used for special operation (e.g., 1
time operation, recovery/vacuuming setting, manual
adding refrigerant setting, etc.). In such a case, it is
required to abort the special operation before normal
operation can restart. It will be indicated in below
explanations.
4
2" [
116]
4
settings" [
118]
Description
selector
switch).
4
unit" [
126].
Description
RXMLQ8 + RXYLQ10~14T7Y1B*
VRV IV system air conditioner
4P543427-1A – 2020.10
