26
|
Technical data
Installer and user reference guide
152
English
X1M
15
**
/12.2
1
1
Refer to the installation or service manual on how to use BS1~BS3 push
buttons, and DS1+DS2 DIP switches.
2
Do not operate the unit by short-circuiting protection device S1PH.
3
For connection of indoor-outdoor F1-F2 transmission wiring, and outdoor-
outdoor F1-F2 transmission wiring, refer to the service manual.
Position in switch box
English
Position in switch box

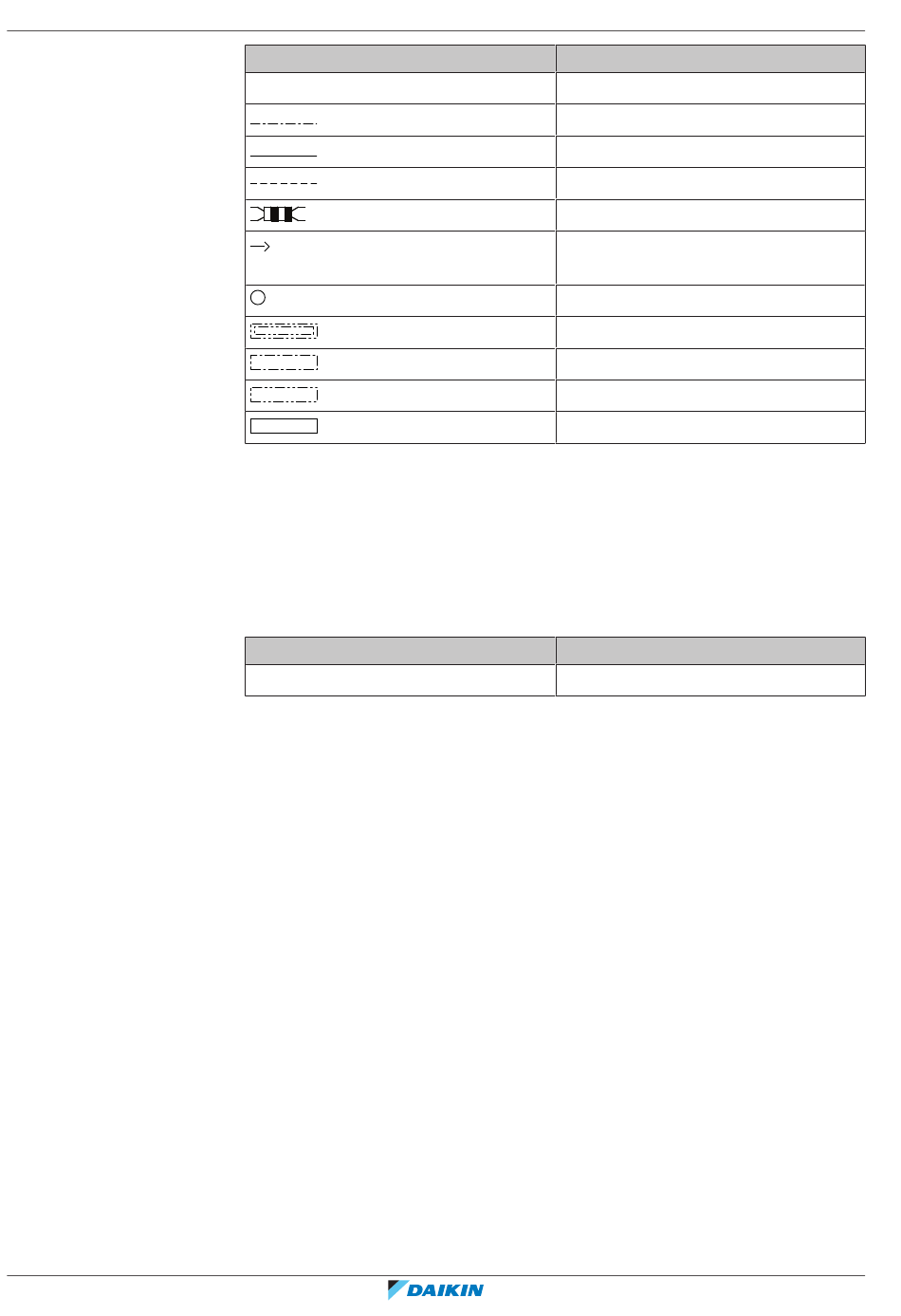

Legend
A1P
A2P
A3P
A4P
A8P
A9P
BS* (A1P)
C* (A3P)
DS* (A1P)
E1HC
F1S (A2P)
F1U (A4P)
F401U (A2P)
F402U (A2P)
F403U (A2P)
F410U (A2P)
Main terminal
Earth wiring
Wire number 15
Field wire
Field cable
Connection ** continues on page 12
column 2
Several wiring possibilities
Option
Not mounted in switch box
Wiring depending on model
PCB
Position in switch box
Main PCB
Noise filter PCB
Inverter PCB
SUB PCB
Adapter PCB
*
Cool/heat selector PCB
Push buttons (mode, set, return)
Capacitor
DIP switch
Crankcase heater
Surge arrestor
Fuse (T, 3.15 A, 250 V)
Fuse (T, 6.3 A, 250 V)
Fuse (T, 6.3 A, 250 V)
Fuse (T, 6.3 A, 250 V)
Fuse (T, 63 A, 600 V)
Translation
Translation
RXMLQ8 + RXYLQ10~14T7Y1B*
VRV IV system air conditioner
4P543427-1A – 2020.10

Hide quick links:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VRV IV and is the answer not in the manual?

Questions and answers

MUHAMMAD SHAMSUDDEEN
March 21, 2025

Hi, kindly assist me with resolving the problem of the VRV IV series. It pops up from the remote control, and after checking the master and the slaves, both cannot identify their ID number. though the last error was e2. Someone messed up with the wiring, perhaps the communication cable. If we can see what cable goes to the first unit from the master, we have 16 units attached.

1 comments:
Mr. Anderson
March 21, 2025

The troubleshooting steps for a Daikin VRV IV series system with an E2 error and communication issues between the master and slave units are:

1. Check Q1/Q2 Wiring: Inspect the wiring connections between the master and slave units at the Q1/Q2 terminals. Faulty or incorrect wiring can cause communication failures.

2. Verify Indoor-Outdoor Wiring: Ensure that the wiring between the indoor and outdoor units is correctly connected at the Q1/Q2 and F1/F2 terminals. Incorrect connections can lead to system malfunctions.

3. Check System Test Run: If the system test run was not executed or ended abnormally, perform the test run again to identify potential issues.

4. Confirm Indoor Unit Configuration: Ensure that the number of indoor units connected to the F1/F2 line does not exceed the system's capacity. Too many units can cause communication failures.

5. Inspect System Compatibility: Verify that the indoor units connected are compatible with the system (e.g., R410A, R407C, Hydrobox). Mixing incompatible units may cause communication issues.

6. Examine Outdoor Unit Wiring: Ensure that the interconnecting wiring between outdoor units in the same piping system is connected to the Q1/Q2 (Out Multi) terminals. Incorrect wiring to the F1/F2 terminals can cause system malfunctions.

Following these steps should help diagnose and resolve communication issues in the VRV IV system.
