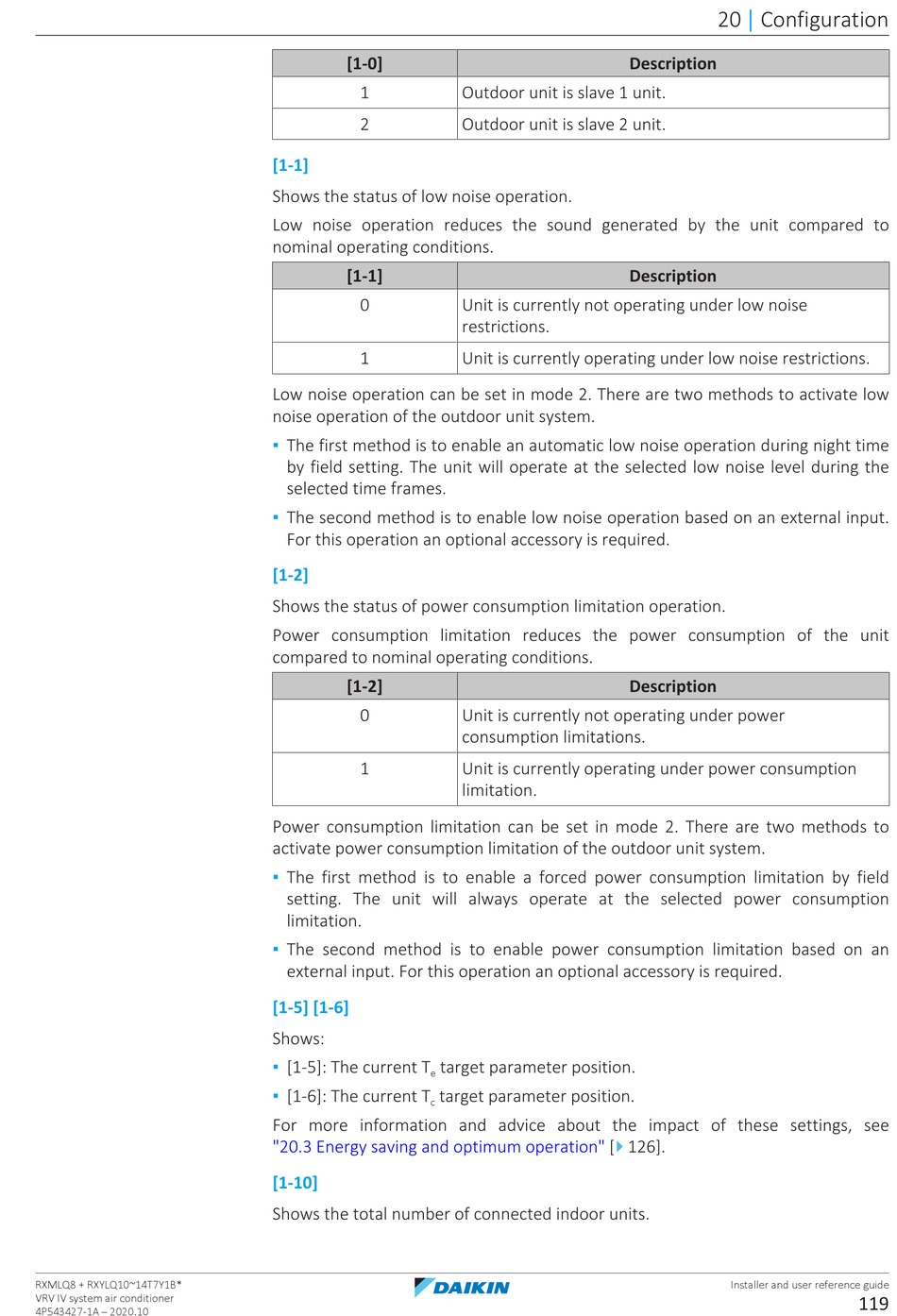

[1‑1]
Shows the status of low noise operation.
Low noise operation reduces the sound generated by the unit compared to
nominal operating conditions.
[1‑1]
0
1
Low noise operation can be set in mode 2. There are two methods to activate low
noise operation of the outdoor unit system.
▪
The first method is to enable an automatic low noise operation during night time
by field setting. The unit will operate at the selected low noise level during the
selected time frames.
▪
The second method is to enable low noise operation based on an external input.
For this operation an optional accessory is required.
[1‑2]
Shows the status of power consumption limitation operation.
Power consumption limitation reduces the power consumption of the unit
compared to nominal operating conditions.
[1‑2]
0
1
Power consumption limitation can be set in mode 2. There are two methods to
activate power consumption limitation of the outdoor unit system.
▪
The first method is to enable a forced power consumption limitation by field
setting. The unit will always operate at the selected power consumption
limitation.
▪
The second method is to enable power consumption limitation based on an
external input. For this operation an optional accessory is required.
[1‑5] [1‑6]
Shows:
▪
[1‑5]: The current T
target parameter position.
e
▪
[1‑6]: The current T
target parameter position.
c
For more information and advice about the impact of these settings, see
"20.3 Energy saving and optimum
[1‑10]
Shows the total number of connected indoor units.
Description
Outdoor unit is slave 1 unit.
Outdoor unit is slave 2 unit.
Description
Unit is currently not operating under low noise
restrictions.
Unit is currently operating under low noise restrictions.
Description
Unit is currently not operating under power
consumption limitations.
Unit is currently operating under power consumption
limitation.
4
operation" [
126].
20
Configuration
|
Installer and user reference guide
119
