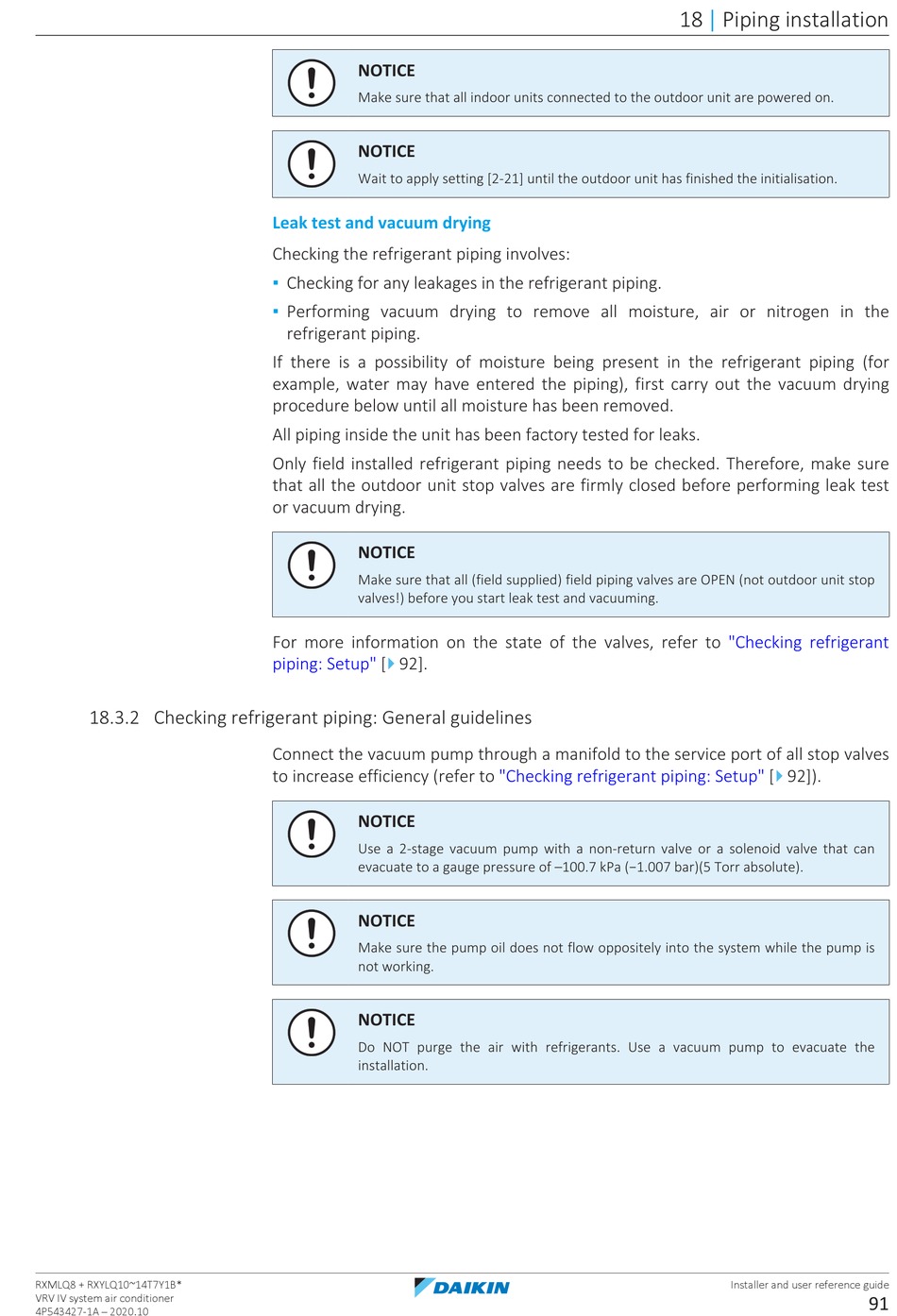

18.3.2 Checking refrigerant piping: General guidelines
RXMLQ8 + RXYLQ10~14T7Y1B*
VRV IV system air conditioner
4P543427-1A – 2020.10
NOTICE
Make sure that all indoor units connected to the outdoor unit are powered on.
NOTICE
Wait to apply setting [2‑21] until the outdoor unit has finished the initialisation.
Leak test and vacuum drying
Checking the refrigerant piping involves:
▪
Checking for any leakages in the refrigerant piping.
▪
Performing vacuum drying to remove all moisture, air or nitrogen in the
refrigerant piping.
If there is a possibility of moisture being present in the refrigerant piping (for
example, water may have entered the piping), first carry out the vacuum drying
procedure below until all moisture has been removed.
All piping inside the unit has been factory tested for leaks.
Only field installed refrigerant piping needs to be checked. Therefore, make sure
that all the outdoor unit stop valves are firmly closed before performing leak test
or vacuum drying.
NOTICE
Make sure that all (field supplied) field piping valves are OPEN (not outdoor unit stop
valves!) before you start leak test and vacuuming.
For more information on the state of the valves, refer to
4
piping:
Setup" [
92].
Connect the vacuum pump through a manifold to the service port of all stop valves
to increase efficiency (refer to
NOTICE
Use a 2-stage vacuum pump with a non-return valve or a solenoid valve that can
evacuate to a gauge pressure of – 1 00.7 kPa (− 1 .007 bar)(5 Torr absolute).
NOTICE
Make sure the pump oil does not flow oppositely into the system while the pump is
not working.
NOTICE
Do NOT purge the air with refrigerants. Use a vacuum pump to evacuate the
installation.
"Checking refrigerant piping:
18
Piping installation
|
"Checking refrigerant
4
Setup" [
92]).
Installer and user reference guide
91
- Quick Links:
- Error Codes: Overview
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the VRV IV and is the answer not in the manual?
Questions and answers
Hi, kindly assist me with resolving the problem of the VRV IV series. It pops up from the remote control, and after checking the master and the slaves, both cannot identify their ID number. though the last error was e2. Someone messed up with the wiring, perhaps the communication cable. If we can see what cable goes to the first unit from the master, we have 16 units attached.
The troubleshooting steps for a Daikin VRV IV series system with an E2 error and communication issues between the master and slave units are:
1. Check Q1/Q2 Wiring: Inspect the wiring connections between the master and slave units at the Q1/Q2 terminals. Faulty or incorrect wiring can cause communication failures.
2. Verify Indoor-Outdoor Wiring: Ensure that the wiring between the indoor and outdoor units is correctly connected at the Q1/Q2 and F1/F2 terminals. Incorrect connections can lead to system malfunctions.
3. Check System Test Run: If the system test run was not executed or ended abnormally, perform the test run again to identify potential issues.
4. Confirm Indoor Unit Configuration: Ensure that the number of indoor units connected to the F1/F2 line does not exceed the system's capacity. Too many units can cause communication failures.
5. Inspect System Compatibility: Verify that the indoor units connected are compatible with the system (e.g., R410A, R407C, Hydrobox). Mixing incompatible units may cause communication issues.
6. Examine Outdoor Unit Wiring: Ensure that the interconnecting wiring between outdoor units in the same piping system is connected to the Q1/Q2 (Out Multi) terminals. Incorrect wiring to the F1/F2 terminals can cause system malfunctions.
Following these steps should help diagnose and resolve communication issues in the VRV IV system.
