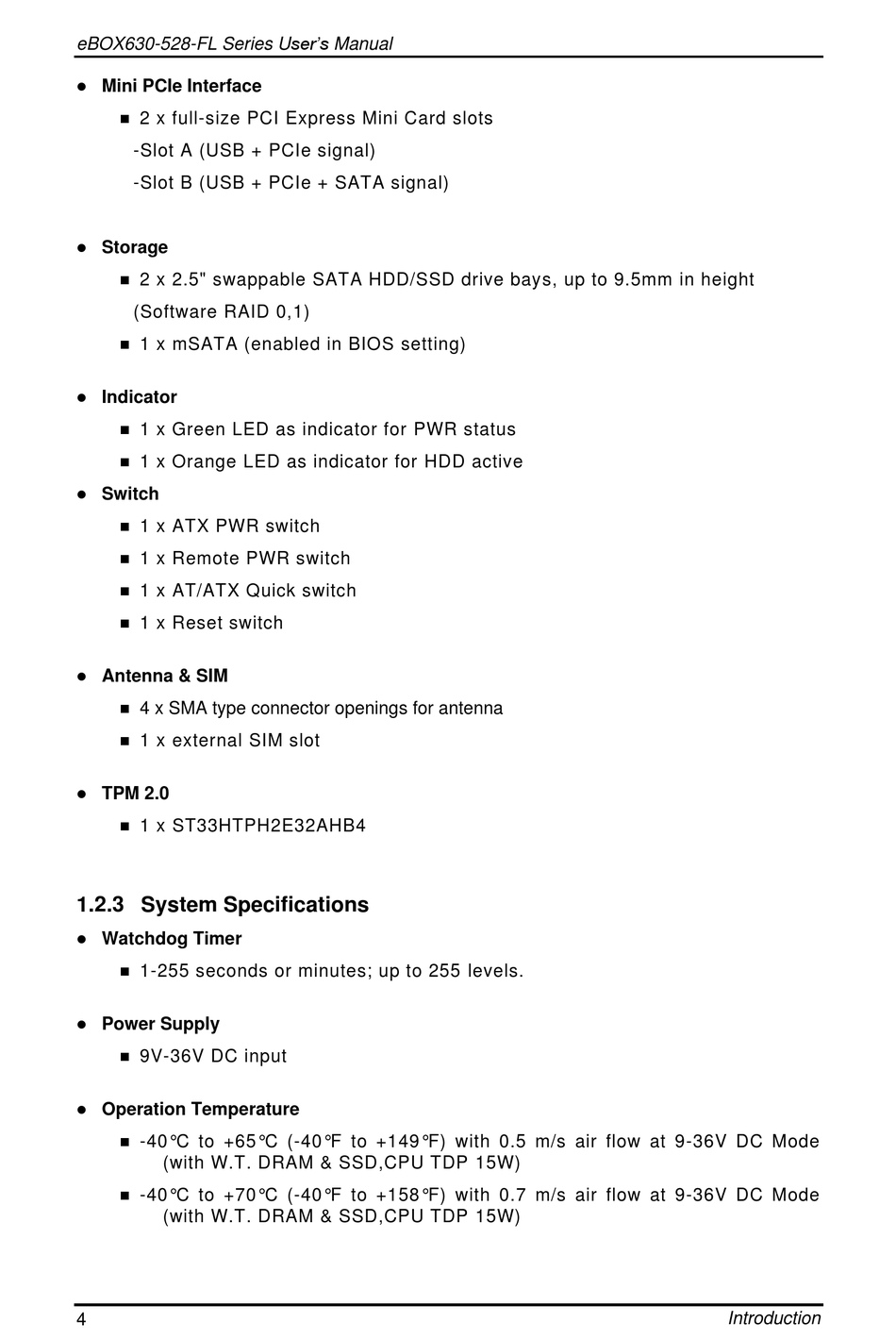

eBOX630-528-FL Series User's Manual
⚫ Mini PCIe Interface
◼ 2 x full-size PCI Express Mini Card slots
-Slot A (USB + PCIe signal)
-Slot B (USB + PCIe + SATA signal)
⚫ Storage
◼ 2 x 2.5" swappable SATA HDD/SSD drive bays, up to 9.5mm in height
(Software RAID 0,1)
◼ 1 x mSATA (enabled in BIOS setting)
⚫
Indicator
◼ 1 x Green LED as indicator for PWR status
◼ 1 x Orange LED as indicator for HDD active
⚫ Switch
◼ 1 x ATX PWR switch
◼
1 x Remote PWR switch
◼ 1 x AT/ATX Quick switch
◼ 1 x Reset switch
⚫ Antenna & SIM
◼ 4 x SMA type connector openings for antenna
◼ 1 x external SIM slot
⚫ TPM 2.0
◼ 1 x ST33HTPH2E32AHB4

1.2.3 System Specifications

⚫ Watchdog Timer
◼ 1-255 seconds or minutes; up to 255 levels.
⚫ Power Supply
◼ 9V-36V DC input
⚫ Operation Temperature
◼ -40°C to +65°C (-40°F to +149°F) with 0.5 m/s air flow at 9-36V DC Mode
(with W.T. DRAM & SSD,CPU TDP 15W)
◼ -40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow at 9-36V DC Mode
(with W.T. DRAM & SSD,CPU TDP 15W)
