on computer, please enter the default IP address 192.168.11.1 in the above dialog
box. (The IP address of your wireless adapter network should be DHCP mode)

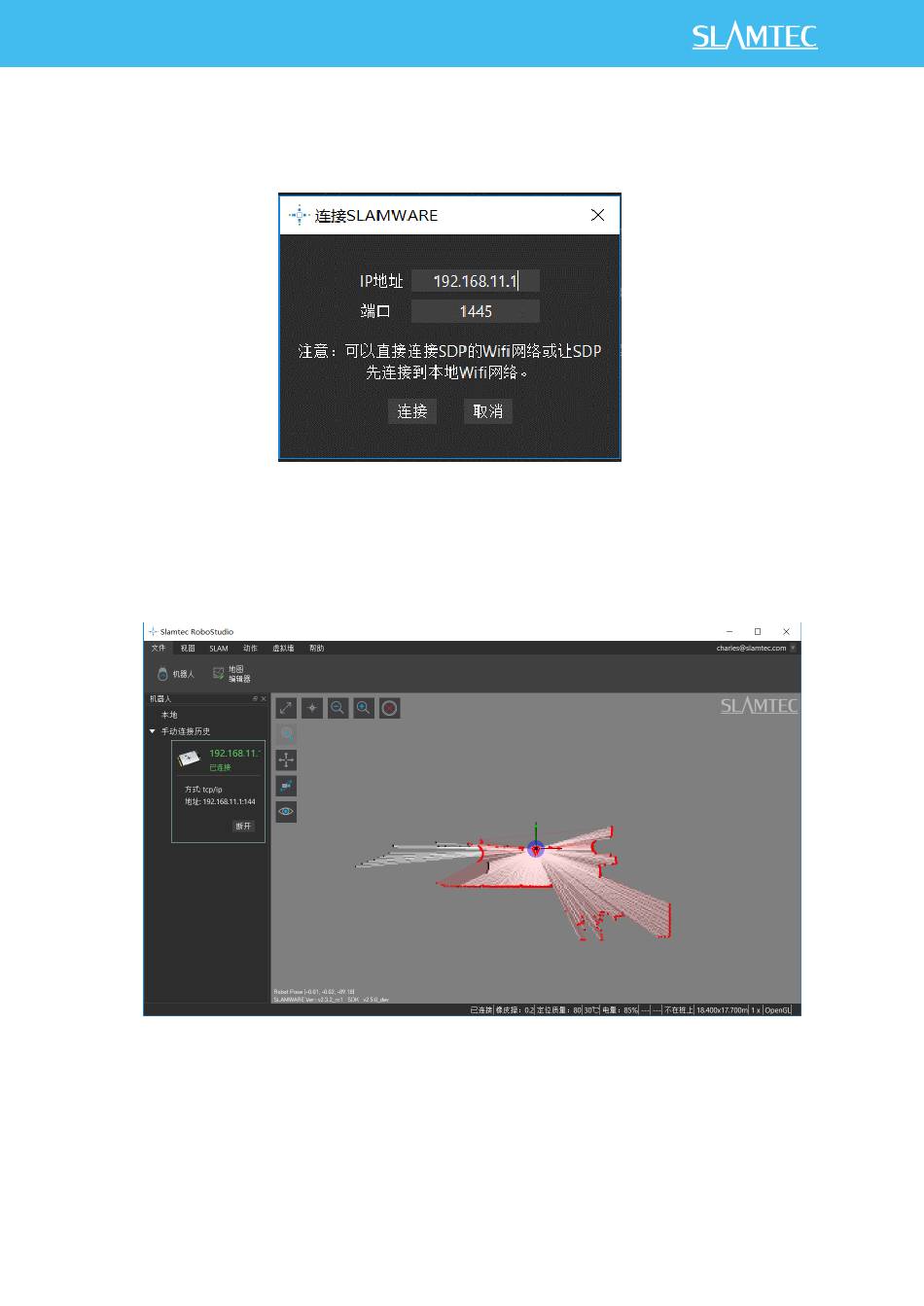

Figure 4-3 RoboStudio Robot Connection Dialog Box
Once connected successfully, the major work area will show the robot, map
information and its status. The robot name will turn to green and the robot status
will turn to Connected as below.
Figure 4-4 RoboStudio Robot Connection
Right click a point in the place where you want to build a map, and Apollo will
follow the point to build map. After mapping, add virtual walls to the places where
you want to isolate them from robot. Click File->MapEditor and choose saving
the map file to local or uploading it to the firmware.
