Extended Platform

Introduction

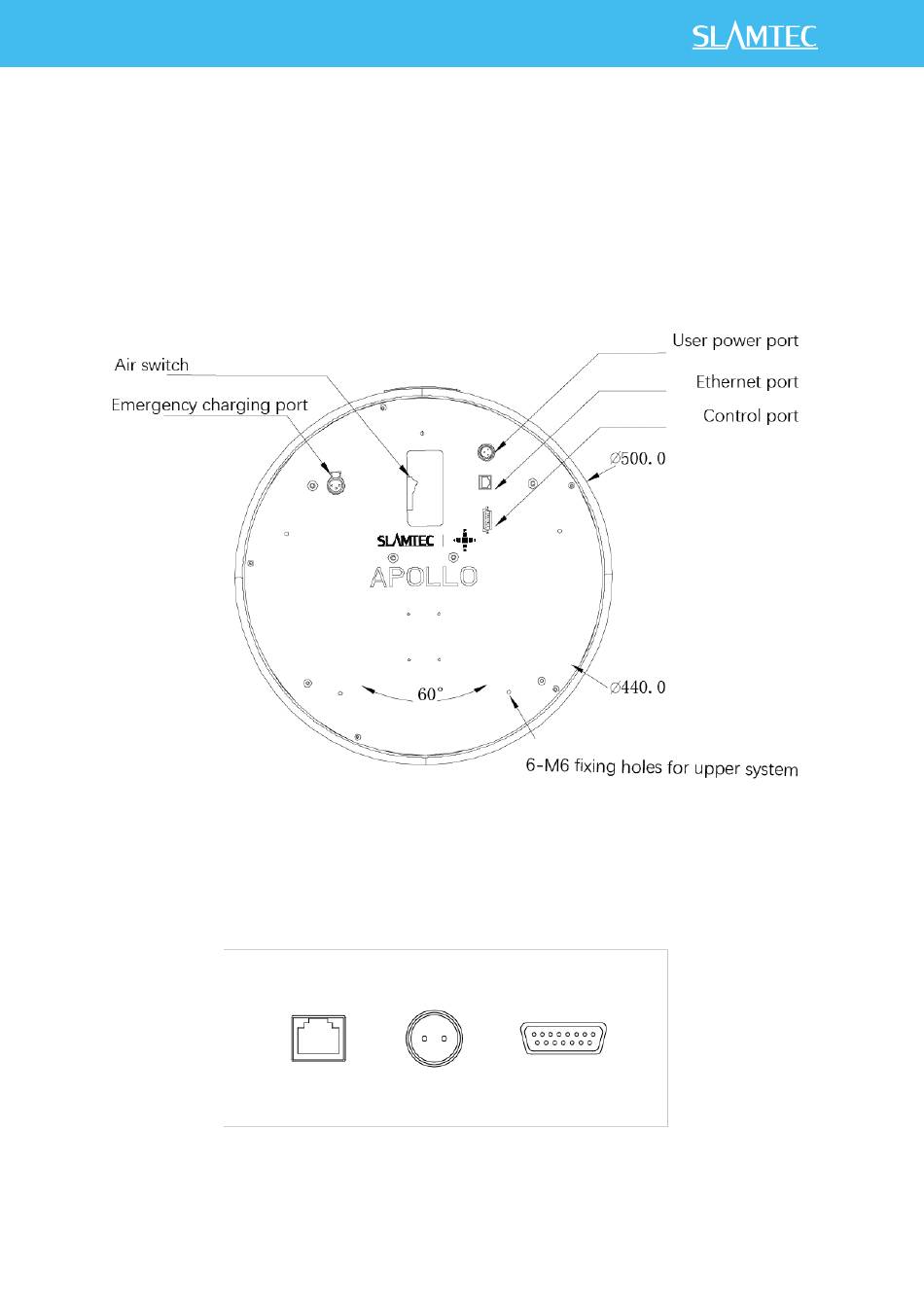

As shown in the following figure, the extended platform of Apollo is a rounded
table with 220mm in radius. The whole top surface is all-steel and is processed
by black phosphating solution. There are five M6 threaded holes regularly
distributed on the table, which can meet various requirements of fixing the upper
module on the Apollo. Please refer to the following figure for the specific position
of threaded holes and the port dimensions.
Figure 3-1 Apollo Extended Platform

Port Definition
