3.7.1 Lifting the C5G packaged in closed crate

30
Operating procedure with crane or bridge crane(A)

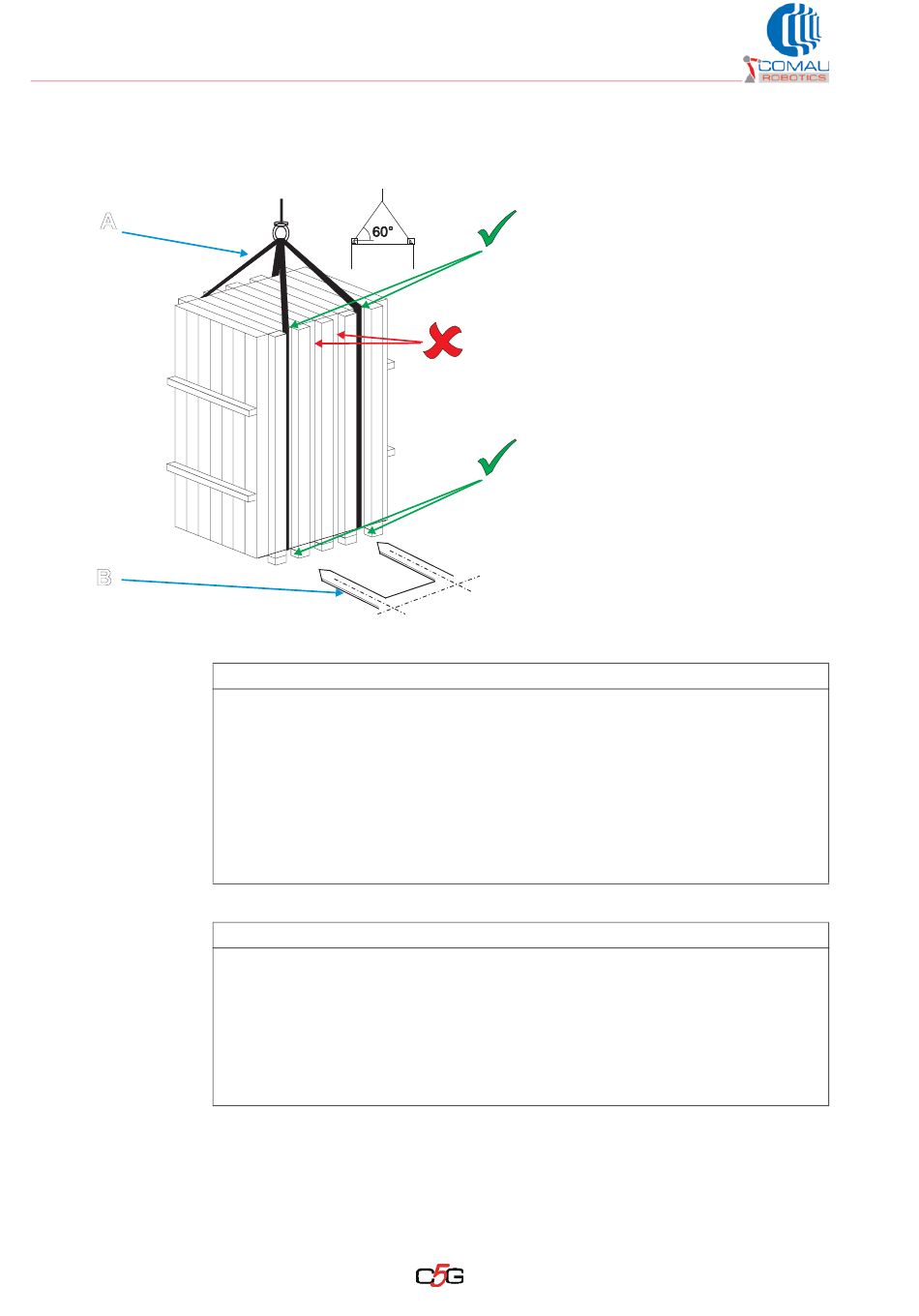

a. Place the 2 ropes underneath the crate as shown in the drawing.
b. Join the ends by the lifting hook.
c. Lift and move near the installation position.
d. After reaching the installation position, remove the ropes.
e. Carry out the procedure described in
protection cloth and pallet on page
Operating procedure with lift truck (B)
a. Place the forks as required.
b. Make sure the fork ends jut out the crate opposite side.
c. Lift and move near the installation position.
d. Carry out the procedure described in
protection cloth and pallet on page
Lifting data
Weight to be lifted *¹:
*¹The weight may differ depending on the
version, in particular in case it deals with the
one supplied with Application Box. Always
refer to the plate posted on the Control Unit.
With crane or bridge crane (A)
Rope no.:
Rope length (approx.):
*²Adjust in case of version with Application
Box, keeping the 60° inclination angle
unaltered as shown in the picture
With lift truck (B)
Fork length:
Distance between fork
centers:
par. 3.8 Procedure to remove the crate,
33.
par. 3.8 Procedure to remove the crate,
33.
190 to 270
kg
419 to 595
lb
2
6000 mm*²
>1000 mm
530 mm
