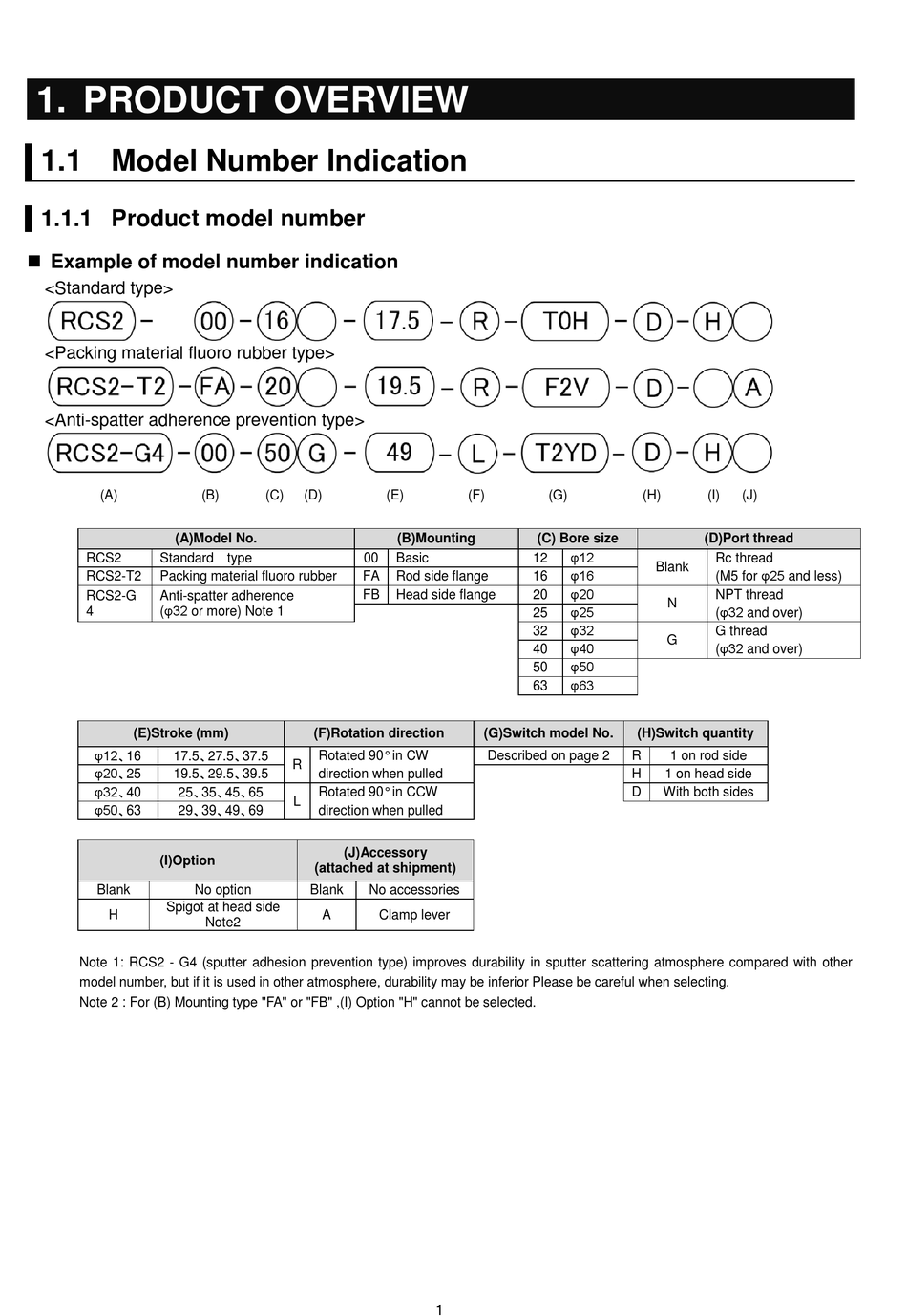

1. PRODUCT OVERVIEW

1.1 Model Number Indication

1.1.1

Product model number

 Example of model number indication
<Standard type>
<Packing material fluoro rubber type>
<Anti-spatter adherence prevention type>
(A)
(A)Model No.
RCS2 Standard type
RCS2-T2 Packing material fluoro rubber
RCS2-G Anti-spatter adherence
4 (φ32 or more) Note 1
(E)Stroke (mm)
φ12、16
17.5、27.5、37.5
φ20、25
19.5、29.5、39.5
φ32、40
25、35、45、65
φ50、63
29、39、49、69
(I)Option
Blank No option
Spigot at head side
H
Note 1: RCS2 - G4 (sputter adhesion prevention type) improves durability in sputter scattering atmosphere compared with other
model number, but if it is used in other atmosphere, durability may be inferior Please be careful when selecting.
Note 2 : For (B) Mounting type "FA" or "FB" ,(I) Option "H" cannot be selected.
(B) (C) (D)
00
FA
FB
(F)Rotation direction
Rotated 90° in CW
R
direction when pulled
Rotated 90° in CCW
L
direction when pulled
(J)Accessory
(attached at shipment)
Blank No accessories
A
Note2
(E) (F) (G)
(B)Mounting (C) Bore size
Basic 12
Rod side flange 16
Head side flange 20
25
32
40
50
63
(G)Switch model No.
Described on page 2
Clamp lever
1
(H) (I) (J)
(D)Port thread
φ12
Rc thread
Blank
φ16 (M5 for φ25 and less)
φ20
NPT thread
N
φ25
(φ32 and over)
φ32
G thread
G
φ40
(φ32 and over)
φ50
φ63
(H)Switch quantity
R 1 on rod side
H 1 on head side
D With both sides
