2.3.2

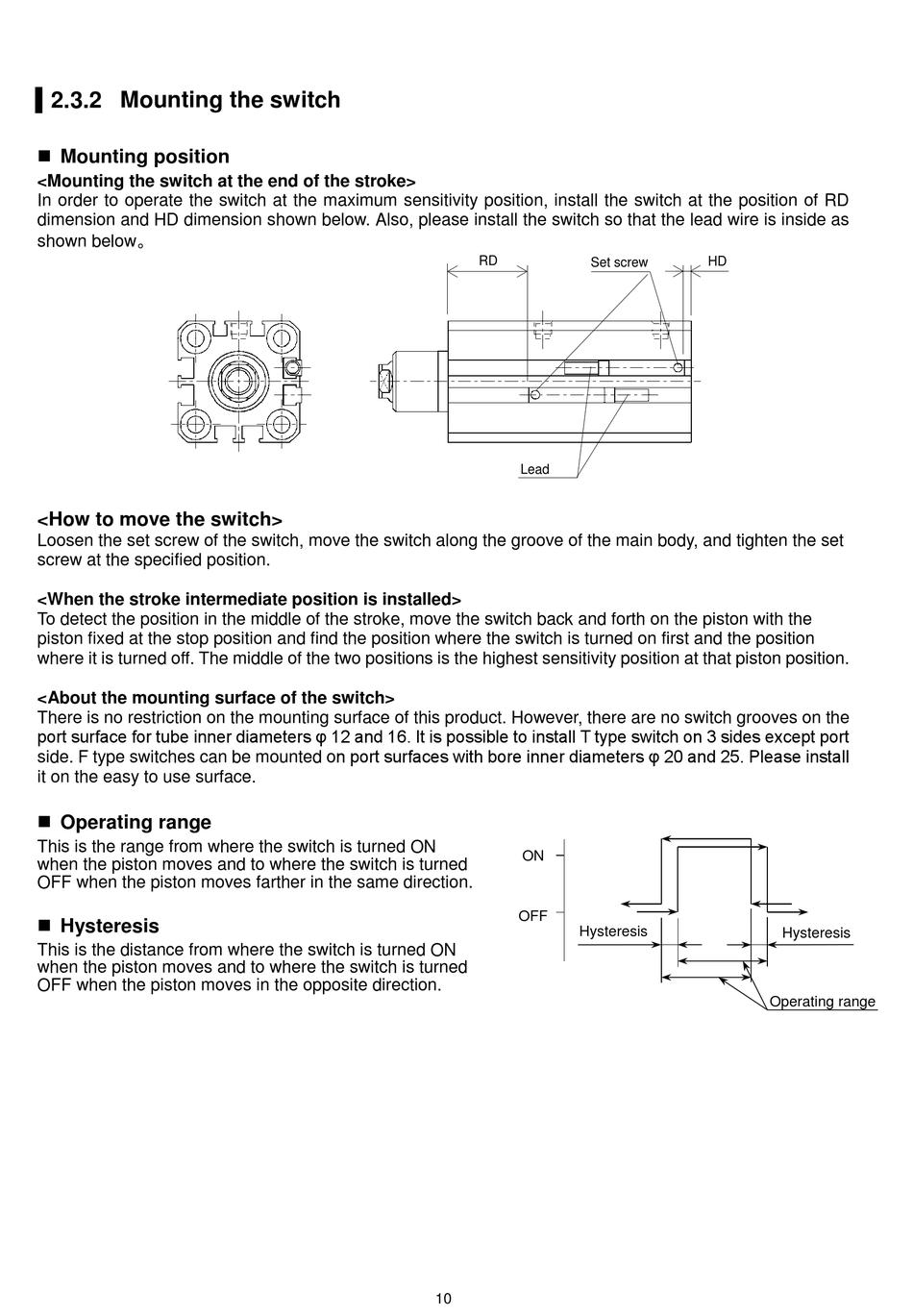

Mounting the switch

 Mounting position
<Mounting the switch at the end of the stroke>
In order to operate the switch at the maximum sensitivity position, install the switch at the position of RD
dimension and HD dimension shown below. Also, please install the switch so that the lead wire is inside as
shown below。
RD
HD
Set screw
Lead
<How to move the switch>
Loosen the set screw of the switch, move the switch along the groove of the main body, and tighten the set
screw at the specified position.
<When the stroke intermediate position is installed>
To detect the position in the middle of the stroke, move the switch back and forth on the piston with the
piston fixed at the stop position and find the position where the switch is turned on first and the position
where it is turned off. The middle of the two positions is the highest sensitivity position at that piston position.
<About the mounting surface of the switch>
There is no restriction on the mounting surface of this product. However, there are no switch grooves on the
port surface for tube inner diameters φ 12 and 16. It is possible to install T type switch on 3 sides except port
side. F type switches can be mounted on port surfaces with bore inner diameters φ 20 and 25. Please install
it on the easy to use surface.
 Operating range
This is the range from where the switch is turned ON
ON
when the piston moves and to where the switch is turned
OFF when the piston moves farther in the same direction.
OFF
 Hysteresis
Hysteresis
Hysteresis
This is the distance from where the switch is turned ON
when the piston moves and to where the switch is turned
OFF when the piston moves in the opposite direction.
Operating range
