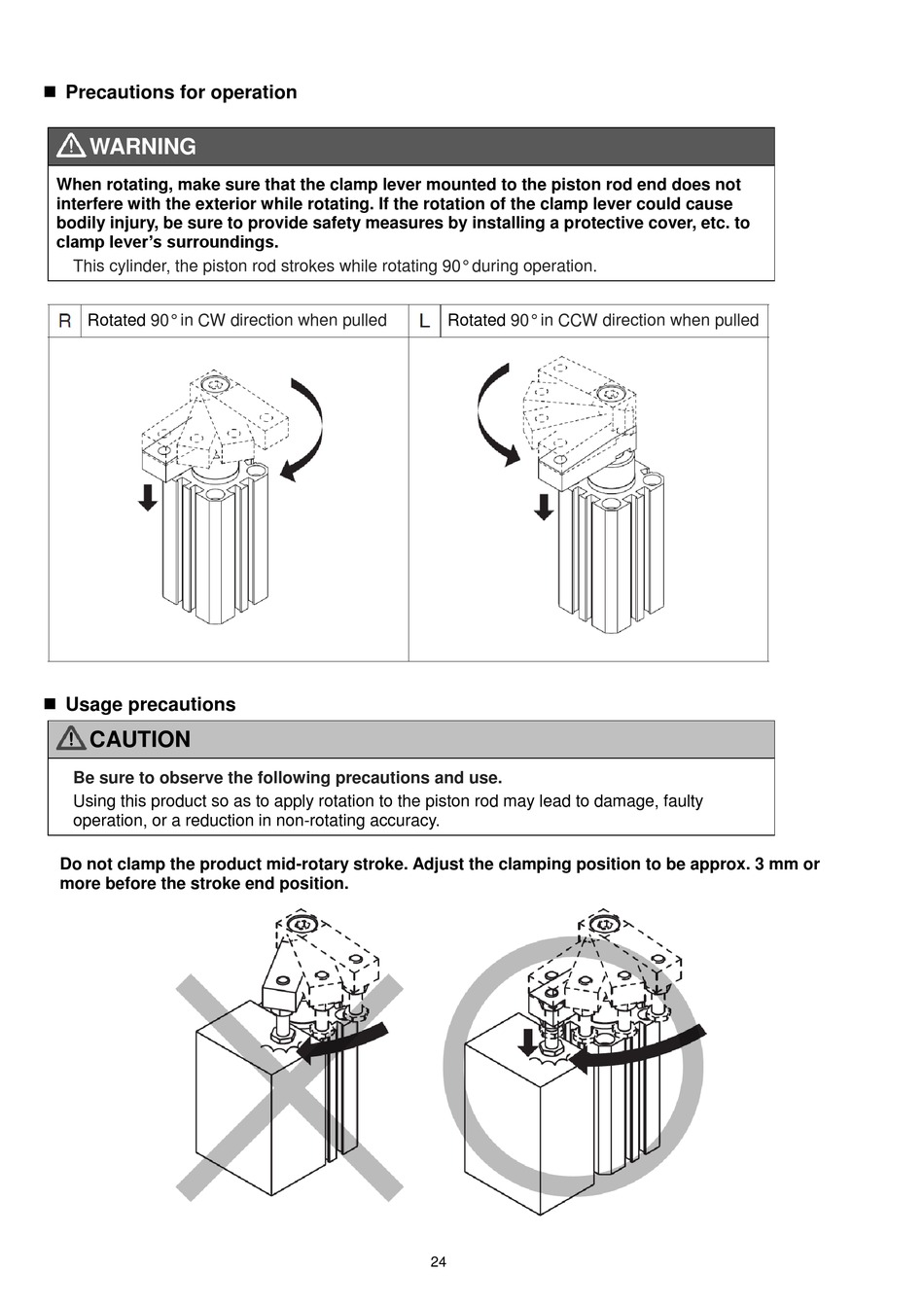

 Precautions for operation
WARNING
When rotating, make sure that the clamp lever mounted to the piston rod end does not
interfere with the exterior while rotating. If the rotation of the clamp lever could cause
bodily injury, be sure to provide safety measures by installing a protective cover, etc. to
clamp lever's surroundings.
This cylinder, the piston rod strokes while rotating 90° during operation.
Rotated 90° in CW direction when pulled
 Usage precautions
CAUTION
Be sure to observe the following precautions and use.
Using this product so as to apply rotation to the piston rod may lead to damage, faulty
operation, or a reduction in non-rotating accuracy.
Do not clamp the product mid-rotary stroke. Adjust the clamping position to be approx. 3 mm or
more before the stroke end position.
Rotated 90° in CCW direction when pulled
