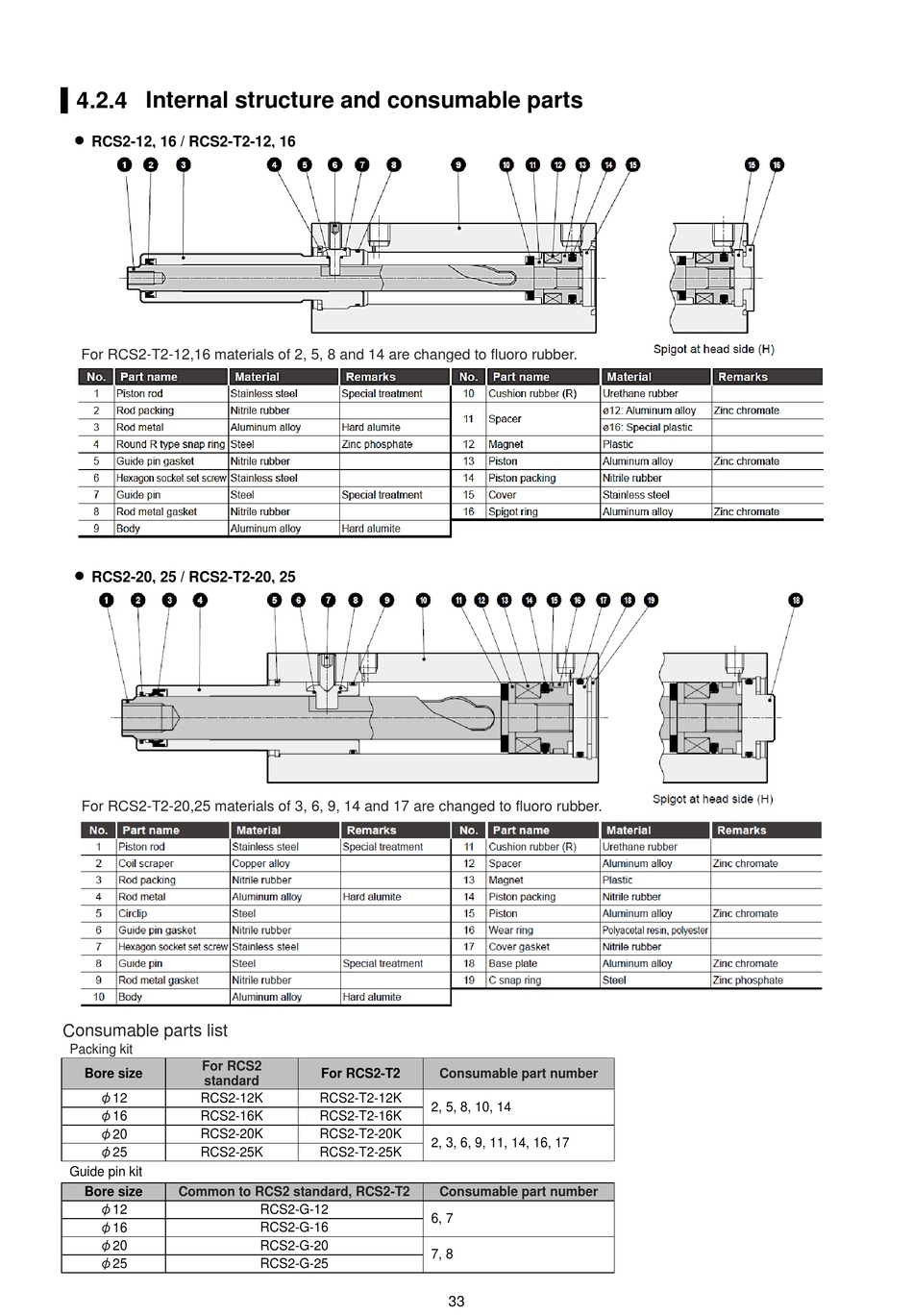

4.2.4

Internal structure and consumable parts


RCS2-12, 16 / RCS2-T2-12, 16
For RCS2-T2-12,16 materials of 2, 5, 8 and 14 are changed to fluoro rubber.

RCS2-20, 25 / RCS2-T2-20, 25
For RCS2-T2-20,25 materials of 3, 6, 9, 14 and 17 are changed to fluoro rubber.
Consumable parts list
Packing kit
For RCS2
Bore size
standard
φ12
RCS2-12K
φ16
RCS2-16K
φ20
RCS2-20K
φ25
RCS2-25K
Guide pin kit
Bore size Common to RCS2 standard, RCS2-T2
φ12
φ16
φ20
φ25
For RCS2-T2
RCS2-T2-12K
2, 5, 8, 10, 14
RCS2-T2-16K
RCS2-T2-20K
2, 3, 6, 9, 11, 14, 16, 17
RCS2-T2-25K
RCS2-G-12
6, 7
RCS2-G-16
RCS2-G-20
7, 8
RCS2-G-25
Consumable part number
Consumable part number
33
