CKD RCS2 Series Instruction Manual page 8

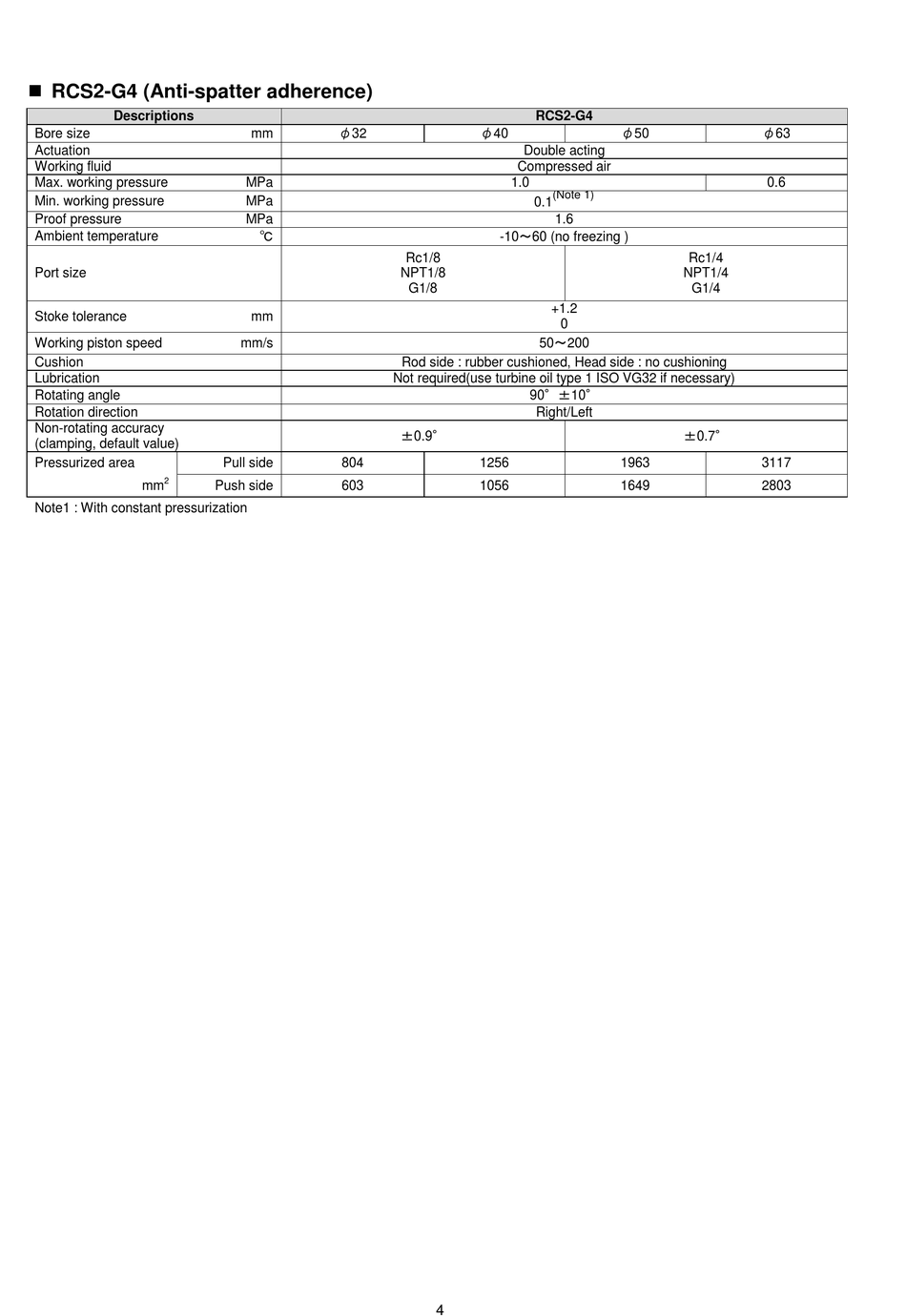

 RCS2-G4 (Anti-spatter adherence)
Descriptions
Bore size
Actuation
Working fluid
Max. working pressure
Min. working pressure
Proof pressure
Ambient temperature
Port size
Stoke tolerance
Working piston speed
Cushion
Lubrication
Rotating angle
Rotation direction
Non-rotating accuracy
(clamping, default value)
Pressurized area
2
mm
Note1 : With constant pressurization
φ32
mm
MPa
MPa
MPa
℃
mm
mm/s
Pull side 804
Push side 603
RCS2-G4
φ40
Double acting
Compressed air
1.0
(Note 1)
0.1
1.6
-10～60 (no freezing )
Rc1/8
NPT1/8
G1/8
+1.2
0
50～200
Rod side : rubber cushioned, Head side : no cushioning
Not required(use turbine oil type 1 ISO VG32 if necessary)
90°±10°
Right/Left
±0.9°
1256
1056
4
φ50 φ63
0.6
Rc1/4
NPT1/4
G1/4
±0.7°
1963 3117
1649 2803
