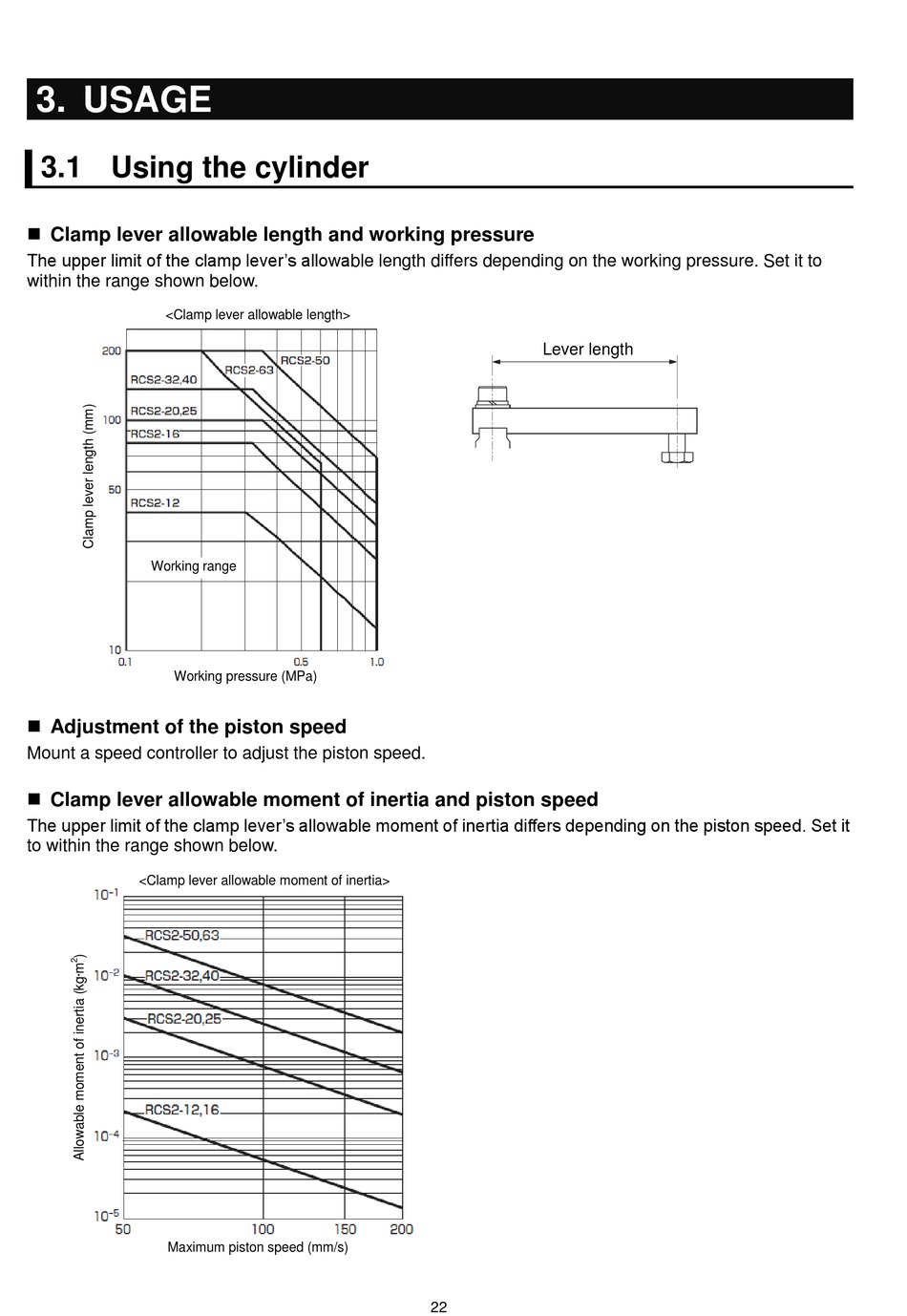

3. USAGE

3.1 Using the cylinder

 Clamp lever allowable length and working pressure
The upper limit of the clamp lever's allowable length differs depending on the working pressure. Set it to
within the range shown below.
<Clamp lever allowable length>
Lever length
Working range
Working pressure (MPa)
 Adjustment of the piston speed
Mount a speed controller to adjust the piston speed.
 Clamp lever allowable moment of inertia and piston speed
The upper limit of the clamp lever's allowable moment of inertia differs depending on the piston speed. Set it
to within the range shown below.
<Clamp lever allowable moment of inertia>
Maximum piston speed (mm/s)
