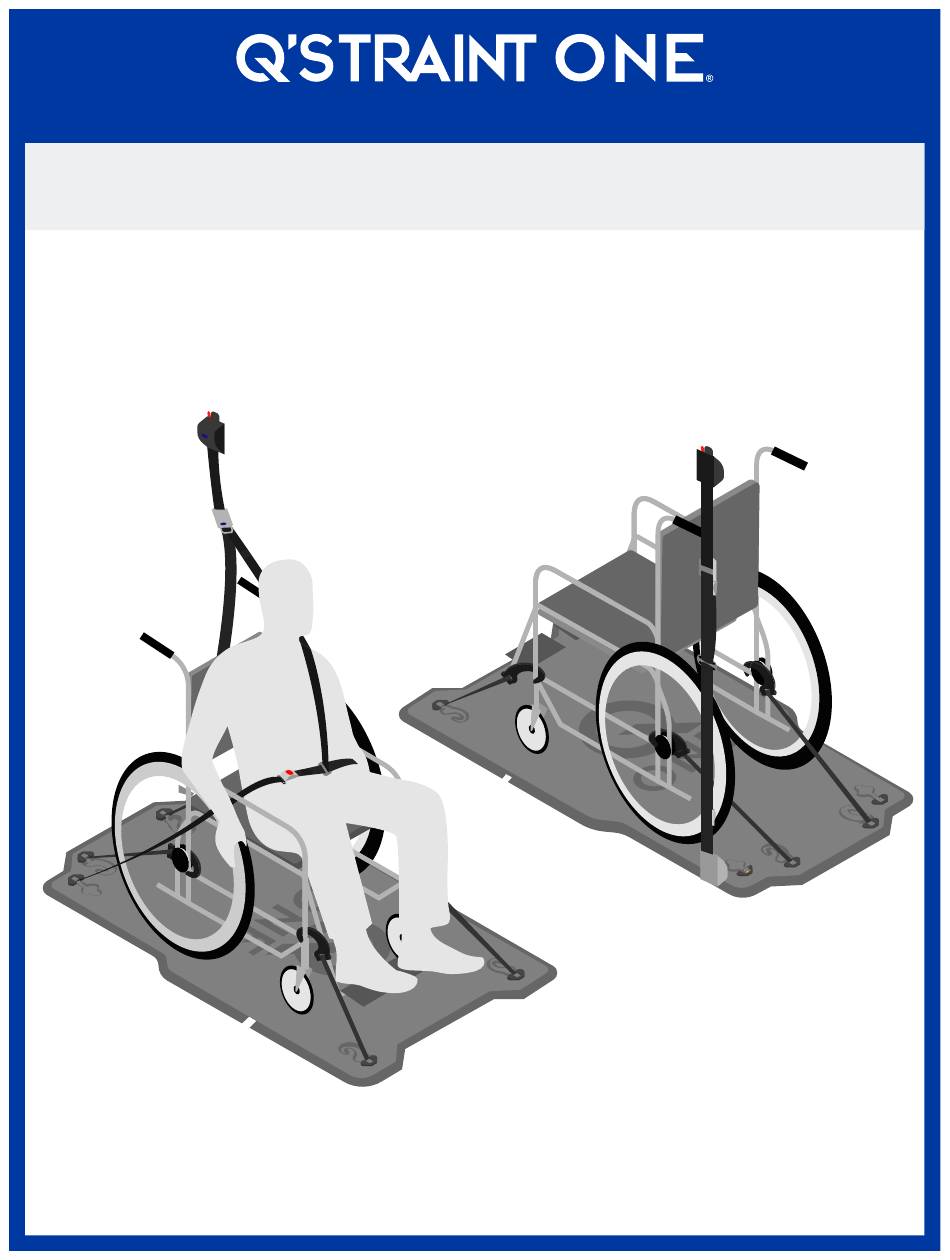

  • Page 1 SYSTEM Use and Care Manual...

  • Page 2: Electrical Requirements

    The interlocked parking break signal 12v is a requirement for the system to function. 1. 12v Parking Break Interlock signal (Pink). 2. 12v/10amp minimum power supply (Red). 3. Negative ground connection to vehicle (Black). System Definitions A. Q’STRAINT ONE system platform B. Hook C. Occupant male lap belt buckle D.

  • Page 3: General Sequence

    SYSTEM General Sequence 1. Passenger enters securement area. 2. Operator presses wall button to release all in- floor securements (button will remain red while in release mode). 3. After the button is pressed the operator will have 4. After the 2min pass the button will turn green 2min to attach front belts, rear belts, and the indicating the retractors are latched.

  • Page 4: Securing The Wheelchair

    SYSTEM OPERATING INSTRUCTIONS Securing The Wheelchair 1. Position user in securement zone, making sure the wheels do not obstruct any of the hooks or slots in the platform. You can use the preset or stored position for the occupant belt before you position the wheelchair. Preset Stored 2.
  • Page 5 SYSTEM OPERATING INSTRUCTIONS Securing The Passenger 1. Attach female pin connector to In-floor male pin connector 2. Grab the floating buckle and pass it in front of the passenger’s shoulder until it reaches the far-side hip and connect it to the occupant belt. Shoulder and Lap Belt must go across occupant’s shoulder and hip, and not be held away from the occupant’s body by wheelchair components.

  • Page 6: Maintenance And Care

    Inspect entire system to make sure everything is working properly and replace anything that is needed. 2. Any deficiencies shall be noted below and rectified before the Q’STRAINT ONE is released to the consumer for use. 3. If the repairing technician has any issues not covered by this document or is not clear on what corrective action needs to be taken, they MUST consult the nearest Q’STRAINT...
  • Page 8 All other brand names, trademarks or registered trademarks are the property of their respective owners. © 2021 Q’STRAINT . All Rights Reserved. Q’STRAINT ONE™ is a trademark of Q’STRAINT , Inc. ®...
