INTRODUCTION

This manual will show how to measure oxygen easily using the XTP601 Oxygen Analyzer.
The following sections contain information about:
• Analyzer components
• Operating instructions
• Calibration and maintenance of the Analyzer
• Installation
Please read this manual carefully and pay special attention to the safety warnings and
notifications.
NOTE: Warnings and important notifications are marked with bold text.
The 3 versions of the XTP601 available are shown below:
The 5 versions of the XTP601 available as described below:
The XTP601 Oxygen Analyzer is based on Michell Instruments' advanced proprietary
Thermo-Paramagnetic technology. It measures the percentage of oxygen in a wide
range of gases, including nitrogen, hydrogen, carbon dioxide methane and biogas.
The sensor is housed in a weather-proof (GP version) or explosion-proof (EX version)
casing - both IP66 & NEMA 4X rated. It is suitable for a range of applications in safe or
hazardous areas.
EX1, EX3 and GP2 models are supplied with flame arrestors for use with flammable
gases or in hazardous areas.
NOTE: this manual relates to products with firmware version V1.07.
Michell Instruments
GP1, GP2 or EX1
Analyzer with touch screen
(capacitive buttons)

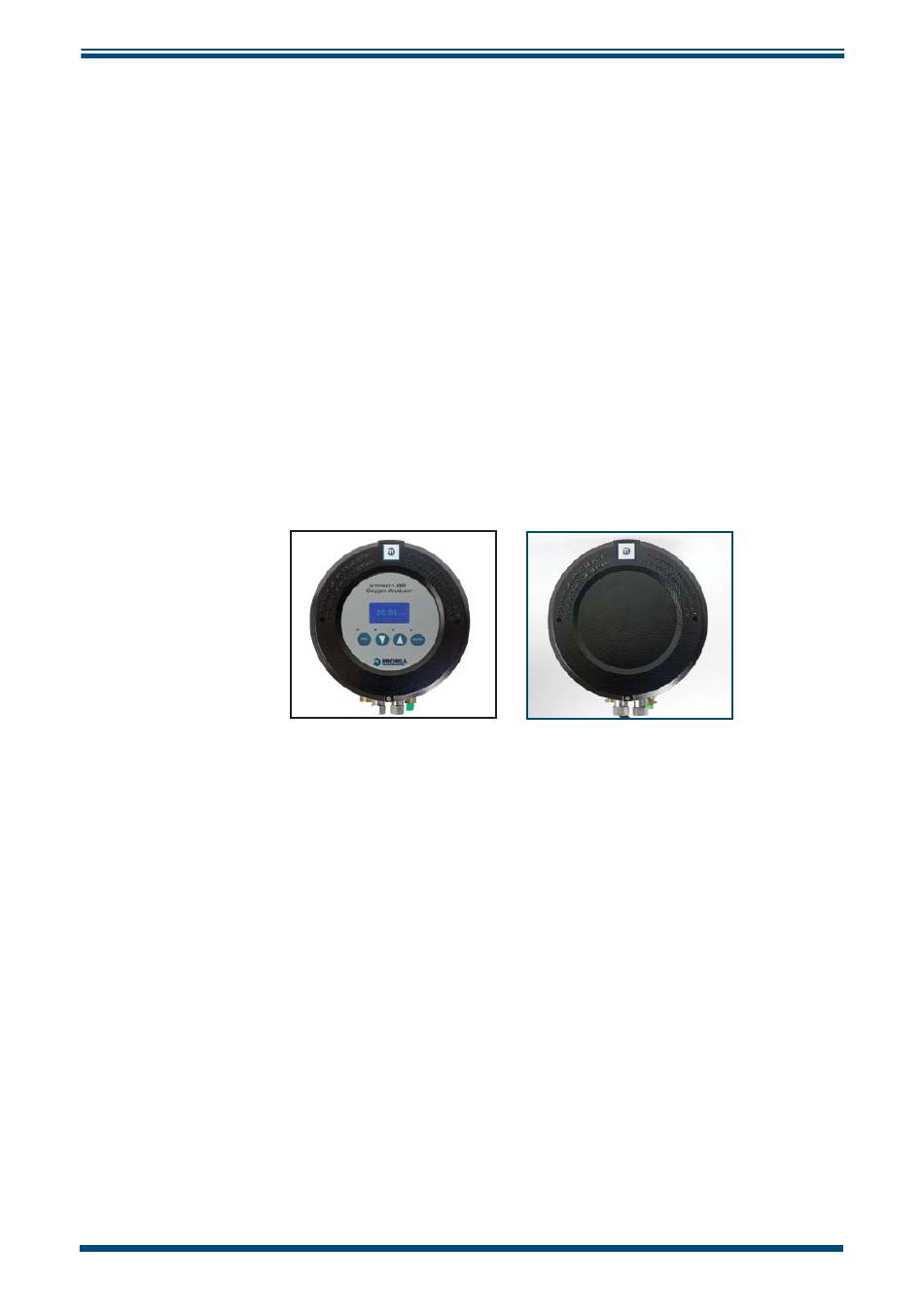

Figure 1 XPT601 Oxygen Analyzer Versions
INTRODUCTION
GP3 or EX3
Oxygen transmitter
1
