INSTALLATION AND CONNECTION

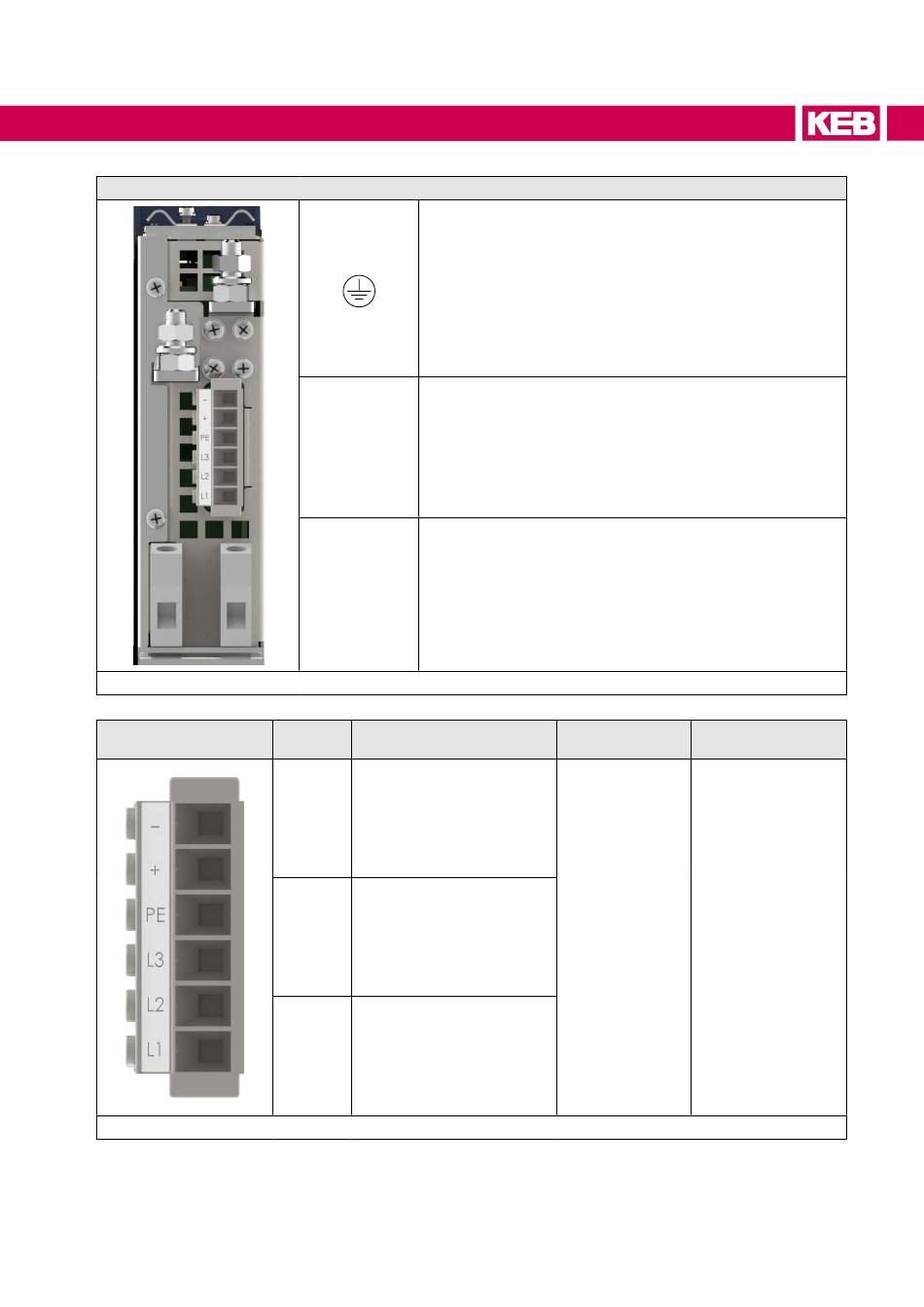

Figure 21:

View rear side of the device

X1A

Figure 22:

Terminal block X1A

View rear side of the device

Protective earth and function earth

X1A

Power unit terminal strip

X1B

Connection for braking resistor

Name

Function

Mains connection for pre-

L1, L2, L3

charging

Connection for protective

earth

DC link connection for sine-

+, -

wave EMC filter

Conductor

Tightening torque

cross-section

0.2...6 mm²

0.7 Nm

AWG 24-10

6.2 lb inch
