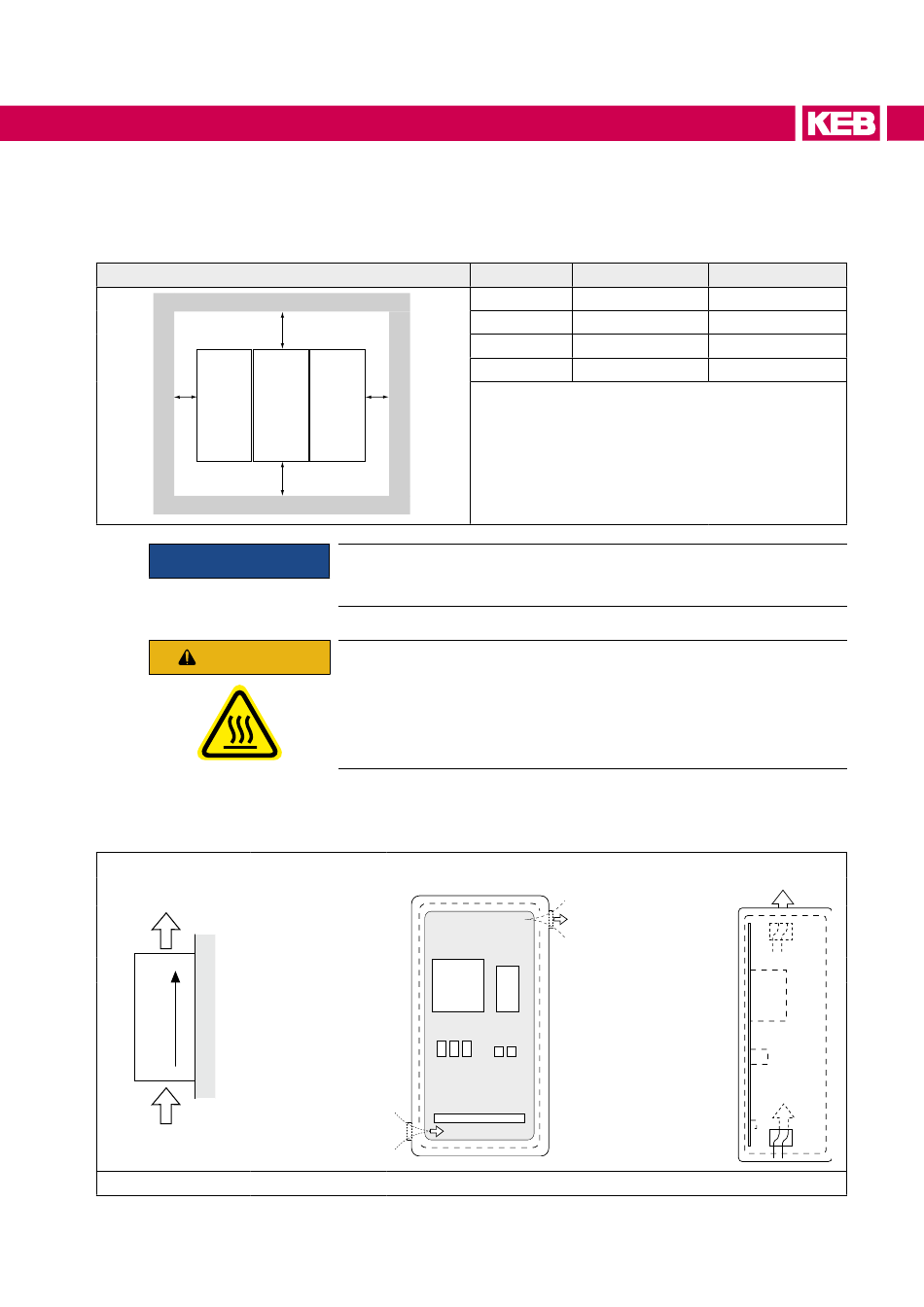

Mechanical Installation; Control Cabinet Installation; Figure 1: Control Cabinet Installation - KEB COMBIVERT H6 Series Instructions For Use Manual

MECHANICAL INSTALLATION

3.4 Mechanical installation

3.4.1 Control cabinet installation

Mounting distances
C
ATTENTION
CAUTION
If construction-conditioned the control cabinet cannot be without indoor ventilation, ap-
propriate filters must avoid suction of foreign objects.
Direction of the air
flow
Figure 1: Control cabinet installation
A
C
B
Horizontal installation in the control cabinet must be done with special
care and the displacement between the units must be kept to a minimum.
Hot Surface
Heat sinks can reach temperatures, which can cause burns when touch-
ing. If in case of structural measures a direct contact cannot be avoided,
a warning notice "hot surface" must be mounted at the machine.
Coolant inlet
Dimension Distance in mm
A 150
B 100
1)
C 30
X 50
2)
1) Minimum distance for cooling
2) Distance to preceding elements in the cabinet
door.
Front and side view of the coolant inlet
Coolant outlet
Distance in inch
6
4
1.2
2
31
