Summary of Contents for Automatic Technology SecuraLift GDO-9v3

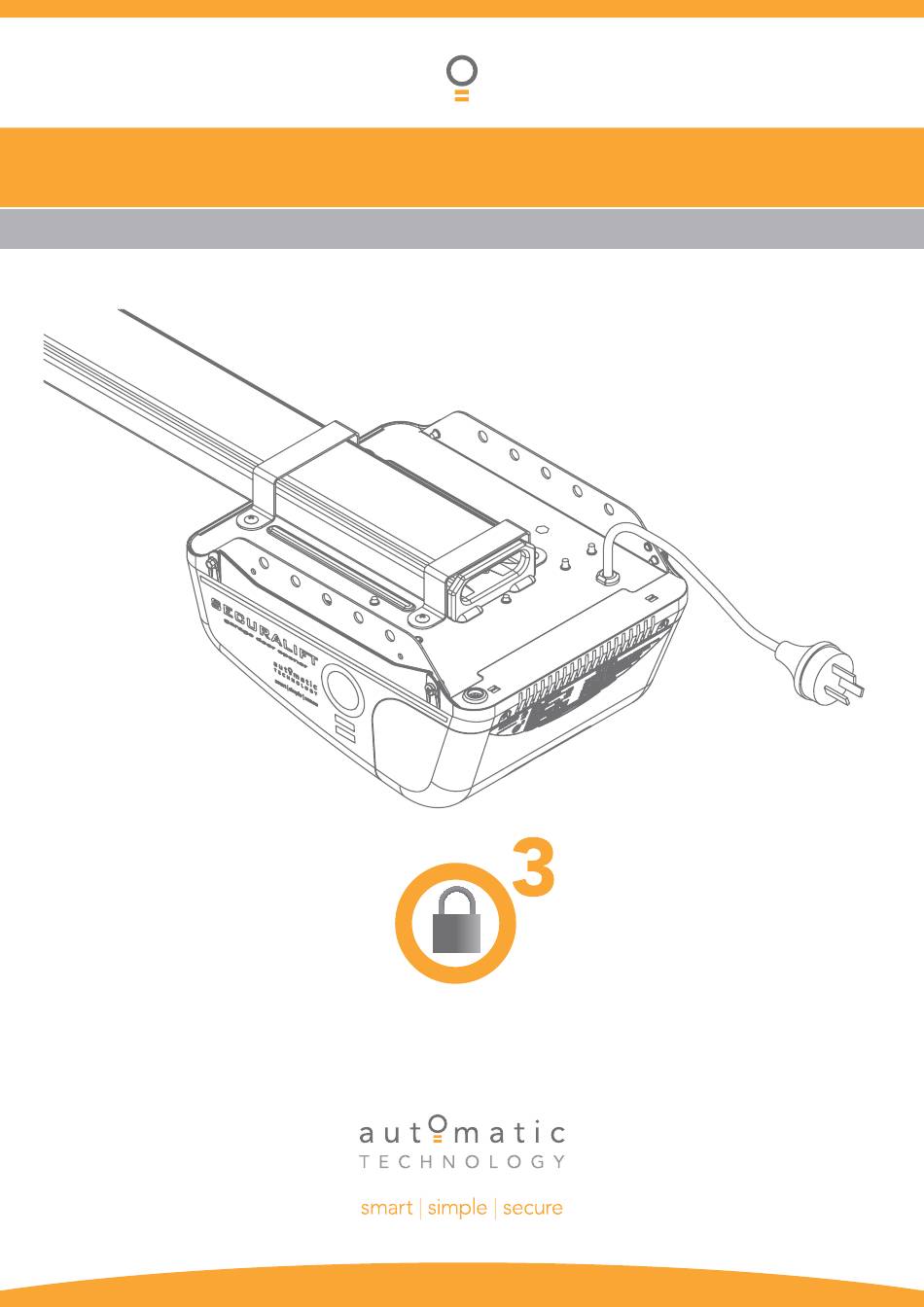

- Page 1 GDO-9v3 SecuraLift ® Overhead Garage Door Opener Featuring TrioCode ™ Technology # 13213 (Manual v1.00) INSTALLATION INSTRUCTIONS | OWNERS COPY...
- Page 2 Automatic Technology (Australia) Pty Ltd Garage Door Opener in accordance with these installation instructions.
-
Page 3: Table Of Contents
GDO-9v3 SecuraLift ® Overhead Garage Door Opener Important Safety Instructions Features Operating Controls Kit Contents Installation Knockdown C-Rail Assembly C-Rail Attachment Accessories Determine Door Type Photo Electric Beam Installation Mounting - Track Type Door Auto-Close Setup Mounting - Spring Loaded Door SmartSolar™... -
Page 4: Important Safety Instructions
Beam. In most countries P.E. Beams are mandatory on all garage doors fi tted with automatic openers. For a small additional outlay Automatic Technology recommends that Photo Electric Beams be installed with the automatic opener ensuring additional safety and peace of mind. - Page 5 If the power supply cord is damaged, it must be replaced by an Automatic Technology service agent or suitably qualifi ed person. Make sure that the door is fully open before driving in or out of the garage and fully closed before leaving the driveway.
-
Page 6: Features
Features Thank you for purchasing the Automatic Technology ® GDO-9v3 SecuraLift Overhead Garage Door Opener. Designed to suit sectional overhead and one piece tilt up doors, the components and materials used ensure this opener will provide years of smart, simple and secure operation. Listed... - Page 7 SmartSolar™ and Battery Back Up Compatibility (optional) The opener can be fi tted with a SmartSolar™ or Battery Back Up kit for operation in the event of a power outage, or where mains power access is not available. NOTE: If the door is the only entrance to the garage, and a battery back up kit is not fi...
-
Page 8: Operating Controls
JP1 SOLAR CONNECTOR onto this the shunt must be fi tted for solar operation. PROG INPUT is used to connect the Automatic Technology Handheld Programmer “PG-3” for editing control and receiver functions, accessing diagnostic tools, and activating special features and operating modes. - Page 9 fi g 10A FUSE GDO-9v3 SecuraLift ® Owner Installation Instructions...
-
Page 10: Kit Contents
Kit contents Drive Unit 1 x GDO-9v3 SecuraLift® Trio drive unit (Fig. 02) 1 x TrioCode™ Transmitter pack (Fig. 02) (Pack includes two keyring transmitters and batteries) 1 x Wall mount transmitter with battery (Fig. 02) 2 x Door attachment arms (Fig. 02) fi... -
Page 11: Installation
Knockdown C-Rail Assembly Step 1 - Knockdown C-Rail Assembly Note: If your opener came with a one piece track, proceed to Assembly step 2, page 13. Place track pieces on fl at surface for assembly. All the track sections are interchangeable. Slide sleeve onto the track section (Fig. - Page 12 Knockdown C-Rail Assembly Note: Use the 12 teeth sprocket with Gdo-9v3 opener. Engage the shuttle with the chain index and move shuttle assembly to the centre of track. Make sure the chain is engaged into the sprocket and also wrapped around the centre of the pulley. Use a spring scale to measure required force to pull fi...
-
Page 13: C-Rail Attachment
C-Rail Attachment Step 2 - Secure C-Rail to Drive Unit Locate and insert the shaft of drive unit into the Shaft track’s sprocket (Fig. 11). Fix the two track brackets with four screws supplied in accessory pack (Fig. 12). fi g Locate shaft into sprocket Hex fl... -
Page 14: Determine Door Type
Determine the Door Type Step 3 - Determine Door Type Determine which type of garage door you have as illustrated below. (Fig. 13 to Fig. 15) . For a sectional (panel) door on tracks (Fig. 13) proceed with the installation from Step 4. Track fi... -
Page 15: Mounting - Track Type Door
Mounting on a Track Type Door WARNING: The opener must be securely fastened to structural supports, otherwise opener failure may ensue causing serious personal injury Level Level and/or property damage. Track Track fi g Step 4 - Determine Bracket Position Door Open the door and fi... -
Page 16: Mounting - Spring Loaded Door
Mounting on a non-Track Type Door WARNING: The opener must be securely fastened to Centre of Door structural supports, otherwise opener failure may ensue causing serious personal injury and/or property damage. Step 8 - Determine the Door’s Centre Find the centre of the door and mark this location fi... -
Page 17: Mounting Door Bracket & Arms
Mounting Door Bracket & Arms Step 12 - Mounting Door Bracket The door bracket comes in two parts. The bottom plate with two mounting holes is used on its own for one piece doors. For sectional doors, the top plate is placed over the bottom plate and is fi... -
Page 18: Programming The Opener
Setting Limits Step 14.1 - Setting Travel Limits NOTE: If P.E. Beams are to be used they must be installed before setting the travel limits. WARNING! Use caution when operating the manual release with the door open since it may fall rapidly due to weak or broken springs, or an improperly fi... -
Page 19: Setting Travel Limits - Transmitter
Setting Limits: via Transmitter The GDO-9v3 has the alternate ability to set travel limits using the transmitter, allowing free movement around the garage to better assess the desired limit positions. Step 15.1 - Code a Transmitter for Limit Setting Ensure the opener is powered up. Press and hold the DOOR CODE button (Fig. -
Page 20: Safety Obstruction Forces
Safety Obstruction Force Test WARNING! Take care when testing or adjusting the Safety Obstruction Force. Excessive force may cause SERIOUS PERSONAL INJURY and/or PROPERTY DAMAGE. WARNING! Photo electric beams must be installed if the closing force at the bottom edge of the door exceeds 400N (40kgf). -
Page 21: Adjusting Safety Obstruction Forces
Adjusting Safety Obstruction Forces Adjusting Safety Obstruction Force The Safety Obstruction Force is calculated automatically during setup. Adjusting this is normally only necessitated by environmental conditions such as windy or dusty areas, and areas with extreme temperature changes. WARNING! Photo electric beams must be installed if the closing force at the bottom edge of the door fi... -
Page 22: Coding Transmitters
Coding Transmitters Step 18.1 - Code a Transmitter Button for Door Operation Press and hold the DOOR CODE button (Fig. 38). Press one of the four buttons on the transmitter for two (2) seconds, pause for two (2) seconds, then press the same button again for two (2) seconds. -
Page 23: Courtesy Light
Coding Transmitters Step 18.5 - Coding a Transmitter Button to the Courtesy Light The transmitter can be programmed to operate the courtesy light on the opener independently of the door moving. Press and hold LIGHT CODE button (Fig. 42). Press one of the four buttons on the transmitter for fi... -
Page 24: Remotely Coding Transmitters
Remote Coding & Deleting Transmitters Step 19 - Remotely Coding Transmitters Using this method transmitters can be coded without access to the opener’s control panel as long as a pre- coded transmitter is available. IMPORTANT NOTE: The door or courtesy light fi... -
Page 25: Accessories
P.E. Beam & Auto-Close WARNING! Photo electric beams must be installed Receiver Transmitter Model PE-2 if the closing force at the bottom edge of the door exceeds 400N (40kgf). 2K2, 0.25 WATT RESISTOR Step 20 - Fitting the P.E. Beams (optional) Affi... -
Page 26: Smartsolar™ Installation
SmartSolar™ Installation WARNING: Do not connect batteries until Step 22.3 Screws taptite ‘P’ M4x8 Step 22.1 - Mount the Charger Board Solar charger board Unplug the drive unit from mains power. Screws taptite ‘S’ M4x8 Remove the screws, swing open the main cover. Then Pcb support remove the transformer, EMC board (if fi... -
Page 27: Battery Back Up Installation
Battery Back Up Installation Wiring diagram fi g Item Description Qty Order Code Batteries cover 16460 Batteries support 16480 Battery 12v sec 12-2.2Agm type 15470 Battery coupling wire esv 24 12005 Battery harness 15670 Pan head screw w/washer m4x8 10320 Cable clamp acc-1.5(3/16”) 11750 SBY-3 version 1.00... -
Page 28: Final Set Up
Final Set Up Step 24 - Setting of Courtesy Light Time The preset courtesy light time is three minutes. This time can only be changed by “PG3” programmer. Step 25 - Setting the Pet Mode position The default Pet Mode height can be changed as follows: fi... -
Page 29: Parameters
Default Settings & Specifi cations Factory default settings Default Step Maximum Maximum motor run time 60 Secs. Courtesy light time 3 Mins. 4 Mins. Obstruction force margin Auto close time 0 Secs 1 Sec. 255 Secs. Technical specifi cations Power supply 230V - 240V AC 50Hz Transformer rating 24V DC... -
Page 30: Door Status Indicators
Parameters Door Status Indicators Door Opener State OPEN LED CLOSE LED STATUS Beeper (Green) (Red) (Yellow) Open Close Opening Flashing Closing Flashing Door travel stopped Flashing Flashing Door obstructed Flashing when opening Door obstructed Flashing Beeps as door moves when closing Opener overloaded Alternating fl... -
Page 31: Button Functions
Parameters Button Functions Buttons Function OPERATE Opens/Stops/Closes the door DOOR CODE Codes a transmitter button for operate, vocation, auxiliary and pedestrian functions LIGHT CODE Codes a transmitter button for light function FORCE MARGIN SET & PLUS (+) Increases the obstruction force margin setting FORCE MARGIN SET &... -
Page 32: Troubleshooting Guide
Troubleshooting guide Symptom Possible cause Remedy Door will not operate Mains power not switched on Switch on mains power Door is obstructed Remove obstruction Door is locked or motor jammed Unlock door or remove jam Door tracks/hardware damaged Door requires service/repair by qualifi... -
Page 33: Maintenance Record
Maintenance Maintenance Yearly Whilst your opener does not require any periodic Automatic Technology suggests you contact your maintenance, the door that it is fi tted to does. installer to perform an annual door service. Your garage door is a large, heavy, moving object... -
Page 34: Parts Listing
Parts Listing fi g GDO-9v3 SecuraLift ® Owner Installation Instructions... -
Page 35: Warranty
Trade Practices Act 1974 (Cwth). 2. Subject to all of the matters set out below, Automatic Technology Australia Pty Ltd (“ATA”) warrants: (a) overhead door opener drive units for twenty four (24) months or 5000 cycles, whichever occurs fi rst; and (b) all accessories for twelve (12) months, from the date of purchase (specifi... - Page 36 ® are trademarks of Automatic Technology (Australia) Pty Ltd. No part of this document may be reproduced without prior permission. In an ongoing commitment to product quality we reserve the right to change specifi cation without notice. E&OE. Automatic Technololgy (Australia) Pty Ltd...
