SHB212 PICMG1.3 Half-Size SBC User's Manual

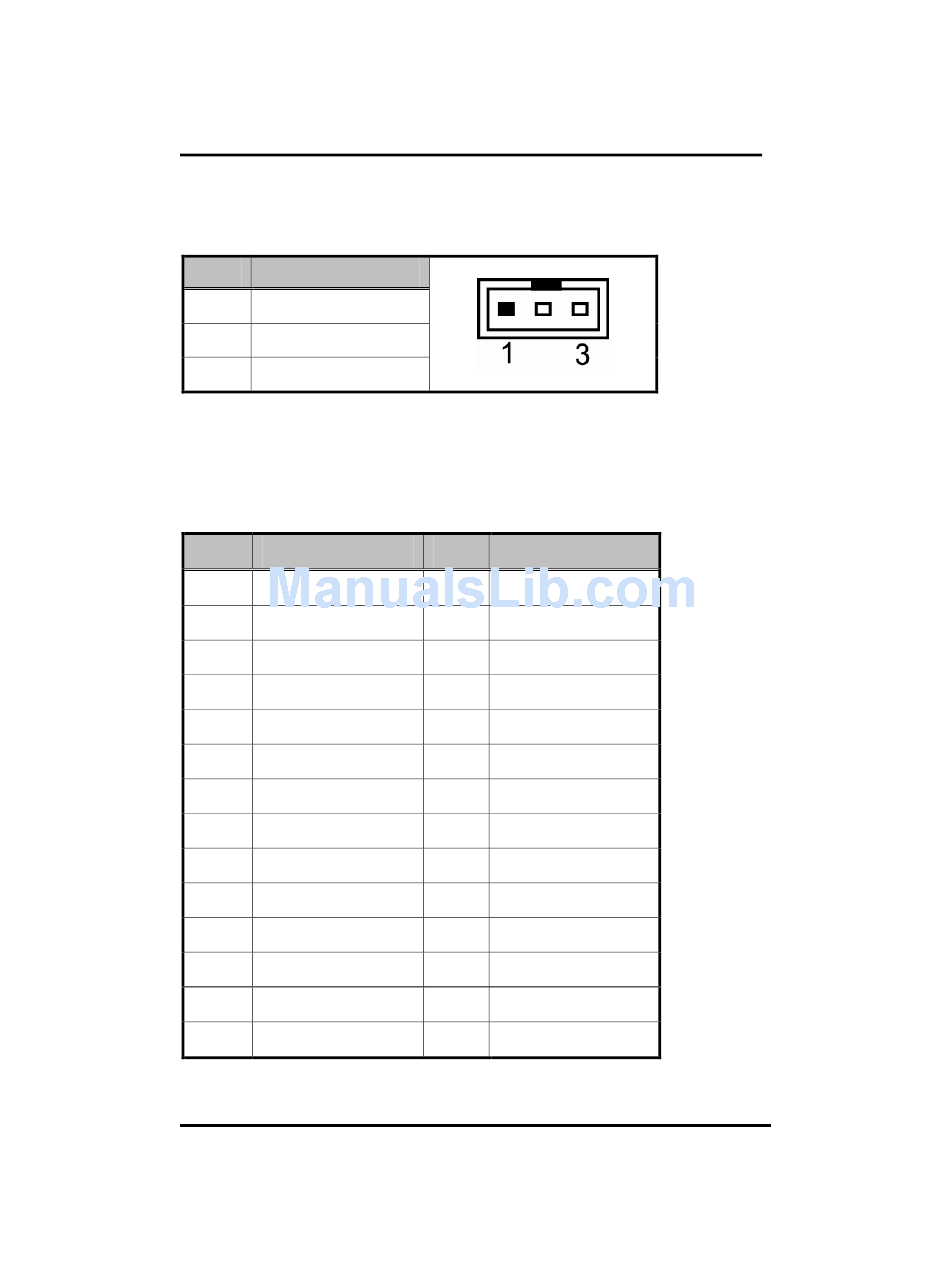

2.4.5 SMBus Connector (CN5)

Connector CN5 is for SMBus interface support.
Pin Signal
1 CLOCK
2 DATA
3
GND

2.4.6 LVDS LCD Connector (CN6)

The board has a 40-pin connector CN6 for LVDS LCD Interface. It is
strongly recommended to use the matching GLA1001WV-S-2X20P 40-
pin connector for LVDS LCD on the board.Pin1~6 VCCM can be set
+3.3V level or +5V level by JP14
Pin Signal
1 VCCM
3 VCCM
5 VCCM
7 N.C
9 GND
11 N.C
13 N.C
15 GND
17 N.C
21 GND
23 Channel A D0-
25 Channel A D0+
27 GND
29 Channel A D1-
20
Pin Signal
2 VCCM
4 VCCM
6 VCCM
8 N.C
10 GND
12 N.C
14 N.C
16 GND
18 N.C
22 GND
24 N.C
26 N.C
28 GND
30 N.C
JUMPERS AND CONNECTORS
