UPS5000-E-(25 kVA-75 kVA)-SM
User Manual (Half Height)



Connect the EPO button to the dry contacts on the UPS, as shown in

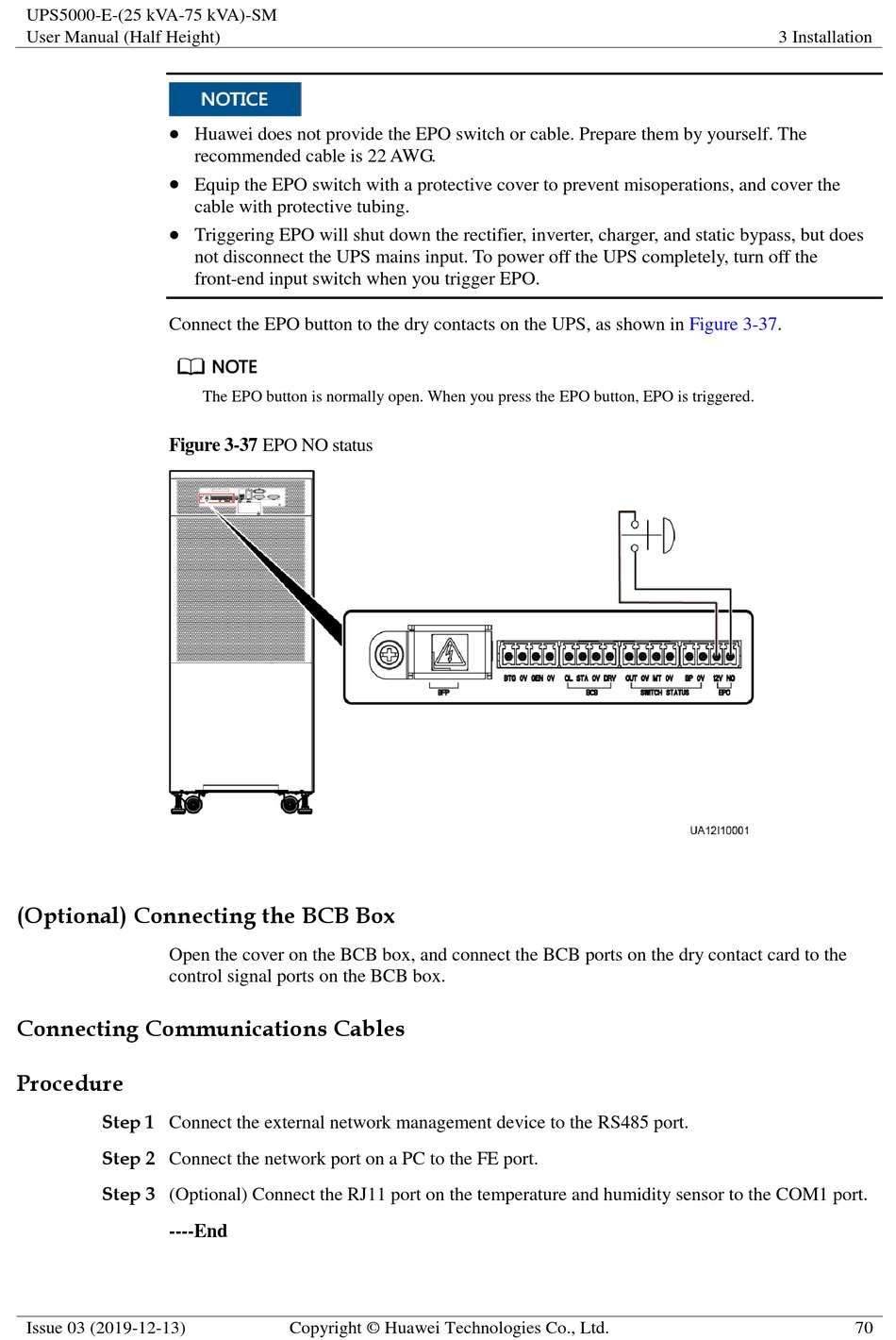

Figure 3-37 EPO NO status
(Optional) Connecting the BCB Box
Open the cover on the BCB box, and connect the BCB ports on the dry contact card to the
control signal ports on the BCB box.
Connecting Communications Cables
Procedure
Step 1 Connect the external network management device to the RS485 port.
Step 2 Connect the network port on a PC to the FE port.
Step 3 (Optional) Connect the RJ11 port on the temperature and humidity sensor to the COM1 port.
----End
Issue 03 (2019-12-13)
Huawei does not provide the EPO switch or cable. Prepare them by yourself. The
recommended cable is 22 AWG.
Equip the EPO switch with a protective cover to prevent misoperations, and cover the
cable with protective tubing.
Triggering EPO will shut down the rectifier, inverter, charger, and static bypass, but does
not disconnect the UPS mains input. To power off the UPS completely, turn off the
front-end input switch when you trigger EPO.
The EPO button is normally open. When you press the EPO button, EPO is triggered.
Copyright © Huawei Technologies Co., Ltd.
3 Installation
Figure 3-37.
70
