Bender ISOMETER isoCHA425 Manual page 12

4. Installation, connection and commissioning
Only qualified personnel are permitted to carry out the work necessary to in-
stall, commission and run a device or system.
Risk of electric shock!
Touching live parts of the system carries the risk of:
• An electric shock
DANGER
• Damage to the electrical installation
• Destruction of the device
Before installing and connecting the device, make sure that the installati-
on has been de-energised. Observe the rules for working on electrical ins-
tallations.
4.1 Installation
• DIN rail mounting:
Snap the mounting clip at the rear of the device onto the DIN rail so that it sits secu-
rely.
• Screw mounting:
Use a tool to position the rear mounting clips so that they project beyond the enclo-
sure (a second mounting clip is required, see ordering information). Fix the device
with two M4 screws, see the following sketch.
12
Installation, connection and commissioning

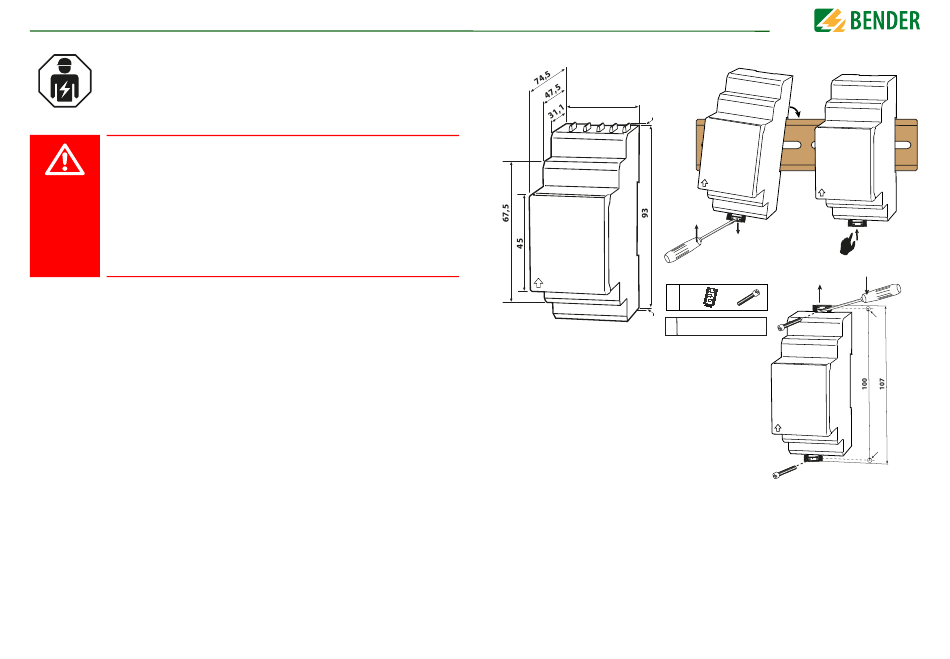

Dimension diagram, sketch for screw mounting, DIN rail mounting:
36
2
&
2
!
All dimensions in mm
The front plate cover can be opened at the lower part marked with an arrow.
2.
3.
1.
Click
2 x
1 x
isoCHA425_D00352_01_M_XXEN/10.2019
Click!
M4
M4
