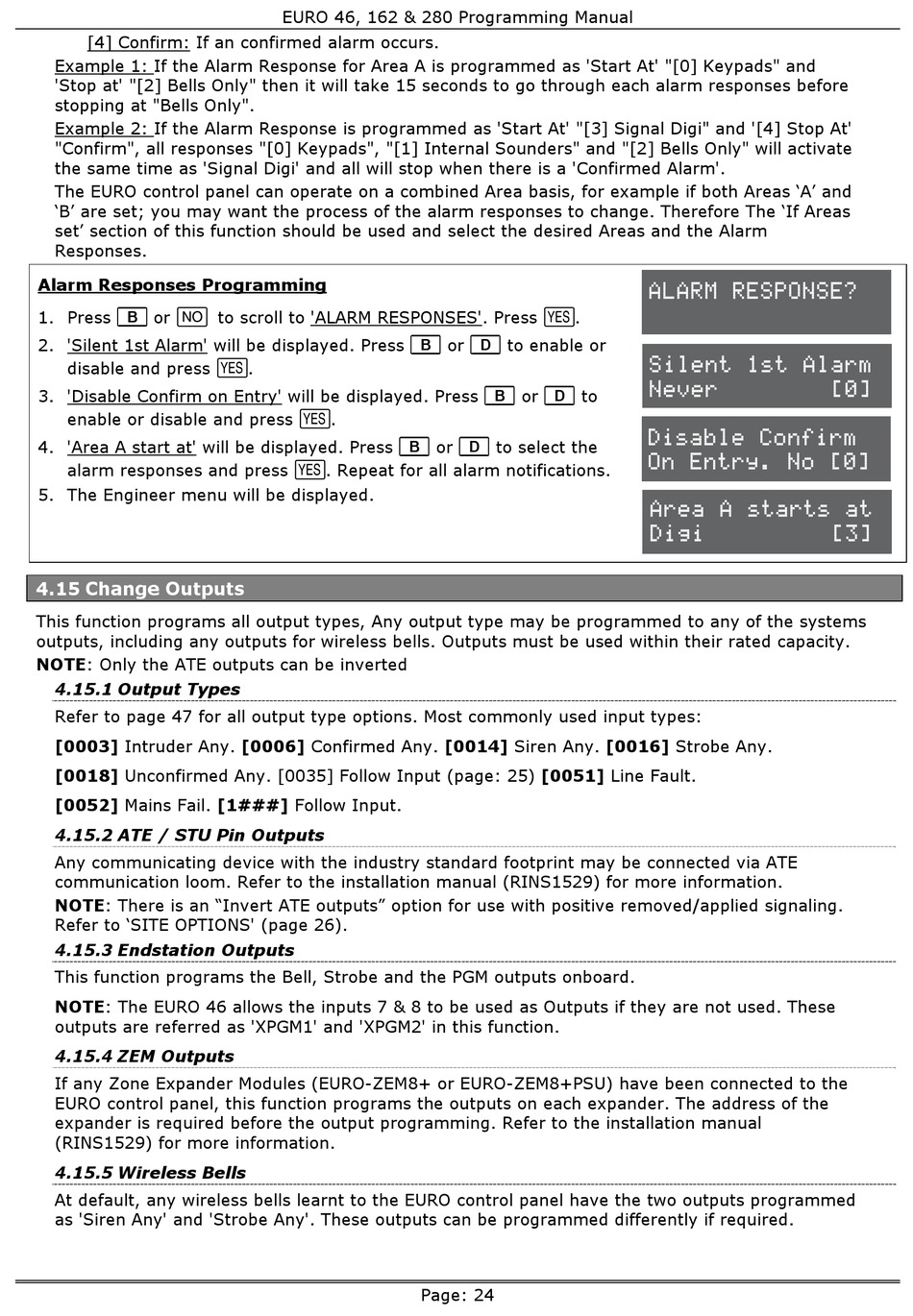

[4] Confirm: If an confirmed alarm occurs.
Example 1: If the Alarm Response for Area A is programmed as 'Start At' "[0] Keypads" and
'Stop at' "[2] Bells Only" then it will take 15 seconds to go through each alarm responses before
stopping at "Bells Only".
Example 2: If the Alarm Response is programmed as 'Start At' "[3] Signal Digi" and '[4] Stop At'
"Confirm", all responses "[0] Keypads", "[1] Internal Sounders" and "[2] Bells Only" will activate
the same time as 'Signal Digi' and all will stop when there is a 'Confirmed Alarm'.
The EURO control panel can operate on a combined Area basis, for example if both Areas 'A' and
'B' are set; you may want the process of the alarm responses to change. Therefore The 'If Areas
set' section of this function should be used and select the desired Areas and the Alarm
Responses.
Alarm Responses Programming
1. Press or to scroll to 'ALARM RESPONSES'. Press .
2. 'Silent 1st Alarm' will be displayed. Press  or  to enable or
disable and press .
3. 'Disable Confirm on Entry' will be displayed. Press  or  to
enable or disable and press .
4. 'Area A start at' will be displayed. Press  or  to select the
alarm responses and press . Repeat for all alarm notifications.
5. The Engineer menu will be displayed.

4.15 Change Outputs

This function programs all output types, Any output type may be programmed to any of the systems
outputs, including any outputs for wireless bells. Outputs must be used within their rated capacity.
NOTE: Only the ATE outputs can be inverted
4.15.1 Output Types
Refer to page 47 for all output type options. Most commonly used input types:
[0003] Intruder Any. [0006] Confirmed Any. [0014] Siren Any. [0016] Strobe Any.
[0018] Unconfirmed Any. [0035] Follow Input (page: 25) [0051] Line Fault.
[0052] Mains Fail. [1###] Follow Input.
4.15.2 ATE / STU Pin Outputs
Any communicating device with the industry standard footprint may be connected via ATE
communication loom. Refer to the installation manual (RINS1529) for more information.
NOTE: There is an "Invert ATE outputs" option for use with positive removed/applied signaling.
Refer to 'SITE OPTIONS' (page 26).
4.15.3 Endstation Outputs
This function programs the Bell, Strobe and the PGM outputs onboard.
NOTE: The EURO 46 allows the inputs 7 & 8 to be used as Outputs if they are not used. These
outputs are referred as 'XPGM1' and 'XPGM2' in this function.
4.15.4 ZEM Outputs
If any Zone Expander Modules (EURO-ZEM8+ or EURO-ZEM8+PSU) have been connected to the
EURO control panel, this function programs the outputs on each expander. The address of the
expander is required before the output programming. Refer to the installation manual
(RINS1529) for more information.
4.15.5 Wireless Bells
At default, any wireless bells learnt to the EURO control panel have the two outputs programmed
as 'Siren Any' and 'Strobe Any'. These outputs can be programmed differently if required.
