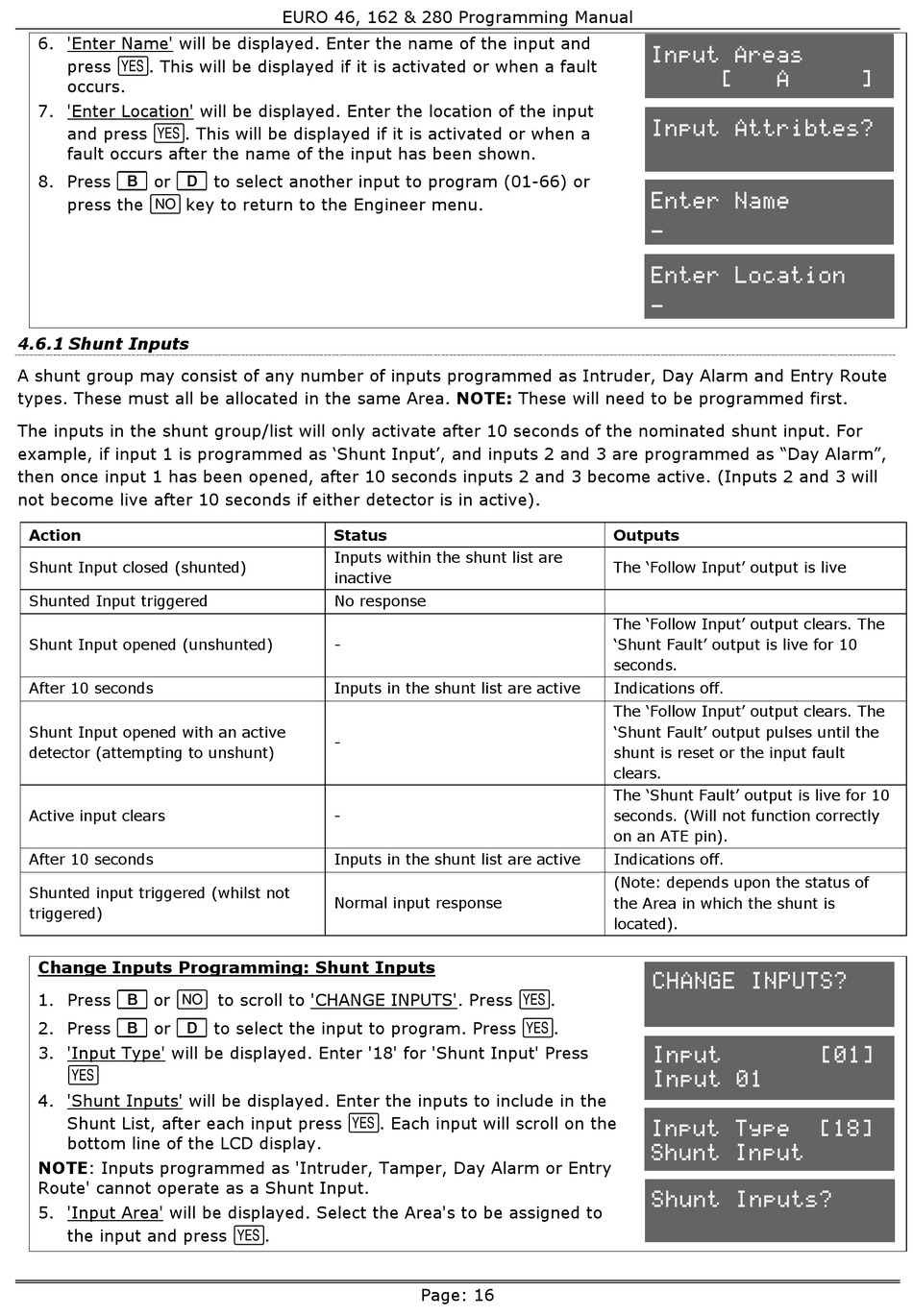

Pyronix Castle EURO 46 Series Programming Reference Manual page 16

6. 'Enter Name' will be displayed. Enter the name of the input and
press . This will be displayed if it is activated or when a fault
occurs.
7. 'Enter Location' will be displayed. Enter the location of the input
and press . This will be displayed if it is activated or when a
fault occurs after the name of the input has been shown.
8. Press  or  to select another input to program (01-66) or
press the key to return to the Engineer menu.
4.6.1 Shunt Inputs
A shunt group may consist of any number of inputs programmed as Intruder, Day Alarm and Entry Route
types. These must all be allocated in the same Area. NOTE: These will need to be programmed first.
The inputs in the shunt group/list will only activate after 10 seconds of the nominated shunt input. For
example, if input 1 is programmed as 'Shunt Input', and inputs 2 and 3 are programmed as "Day Alarm",
then once input 1 has been opened, after 10 seconds inputs 2 and 3 become active. (Inputs 2 and 3 will
not become live after 10 seconds if either detector is in active).
Action
Shunt Input closed (shunted)
Shunted Input triggered
Shunt Input opened (unshunted)
After 10 seconds
Shunt Input opened with an active
detector (attempting to unshunt)
Active input clears
After 10 seconds
Shunted input triggered (whilst not
triggered)
Change Inputs Programming: Shunt Inputs
1. Press or to scroll to 'CHANGE INPUTS'. Press .
2. Press  or  to select the input to program. Press .
3. 'Input Type' will be displayed. Enter '18' for 'Shunt Input' Press

4. 'Shunt Inputs' will be displayed. Enter the inputs to include in the
Shunt List, after each input press . Each input will scroll on the
bottom line of the LCD display.
NOTE: Inputs programmed as 'Intruder, Tamper, Day Alarm or Entry
Route' cannot operate as a Shunt Input.
5. 'Input Area' will be displayed. Select the Area's to be assigned to
the input and press .
EURO 46, 162 & 280 Programming Manual
Status
Inputs within the shunt list are
inactive
No response
-
Inputs in the shunt list are active
-
-
Inputs in the shunt list are active
Normal input response
Page: 16
Input Areas
[ A
Input Attribtes?
Enter Name
_
Enter Location
_
Outputs
The 'Follow Input' output is live
The 'Follow Input' output clears. The
'Shunt Fault' output is live for 10
seconds.
Indications off.
The 'Follow Input' output clears. The
'Shunt Fault' output pulses until the
shunt is reset or the input fault
clears.
The 'Shunt Fault' output is live for 10
seconds. (Will not function correctly
on an ATE pin).
Indications off.
(Note: depends upon the status of
the Area in which the shunt is
located).
CHANGE INPUTS?
Input
Input 01
Input Type
Shunt Input
Shunt Inputs?
]
[01]
[18]
