Choose Mode Programming
1. Press or to scroll to 'CHOOSE MODE'. Press
.
2. Press or to select the 'EOL Range' for all
wired inputs. Press .
3. Press or to select the 'EOL Mode' for all wired
. Press .
*
inputs
4. Press or to select the 'Input Response Mode'
for all wired inputs. Press twice to return to the
Engineer menu.
4.4 Install ZEMs
If any wired or wireless Zone Expander Modules (ZEMs) are installed on the EURO control panel, they
must be addressed in this function.
4.4.1 ZEM Address
Refer to 'System Overview' (page: 4) for how many wired/wireless ZEMs can be installed.
4.4.2 ZEM Installed
[0] No [1] ZEM8 / EURO37R (Wired ZEMs) [2] ZEM32WE (Wireless ZEMs)
4.4.3 Enter Location
The text entered here will be displayed on the LCD display if a fault occurs on the ZEM, so the
ZEM can be easily located or referenced. For example, the location text maybe "ZEM Kitchen",
"ZEM Loft" etc.
Install ZEMS Programming
1. Press or to scroll to 'INSTALL ZEMS'. Press
.
2. Press or to select the 'ZEM Address' . Press
.
3. Press or to select the 'ZEM8 or EURO37R' ,
ZEM32WE or No' to 'ZEM Installed'. Press .
4. Enter the location of the ZEM. This is so it is
referenced and will appear on the display if a fault
occurs. Press to return to ZEM addressing.
5. Press to return to the Engineers menu.
4.5 Wireless Device Control
If a wireless ZEM (EURO-ZEM32-WE) is installed on the EURO control panel, the learning (and
deleting) procedure for the wireless inputs and bells are performed in this function. It is
recommended that all wireless devices are learnt at the wireless ZEM before any
installation/mounting are completed. The signal strength plays an important part in maintaining a
reliable wireless system, refer to page: 31 for more information.
4.5.1 Control Inputs
'Control Inputs' learns and deletes wireless inputs. Refer to 'System Overview' (page: 4) for the
maximum wireless inputs and wireless input mappings.
4.5.2 Control Bells
'Control Bells' learns and deletes wireless Deltabell external sounders. A maximum of 2 wireless
bells may be learnt.

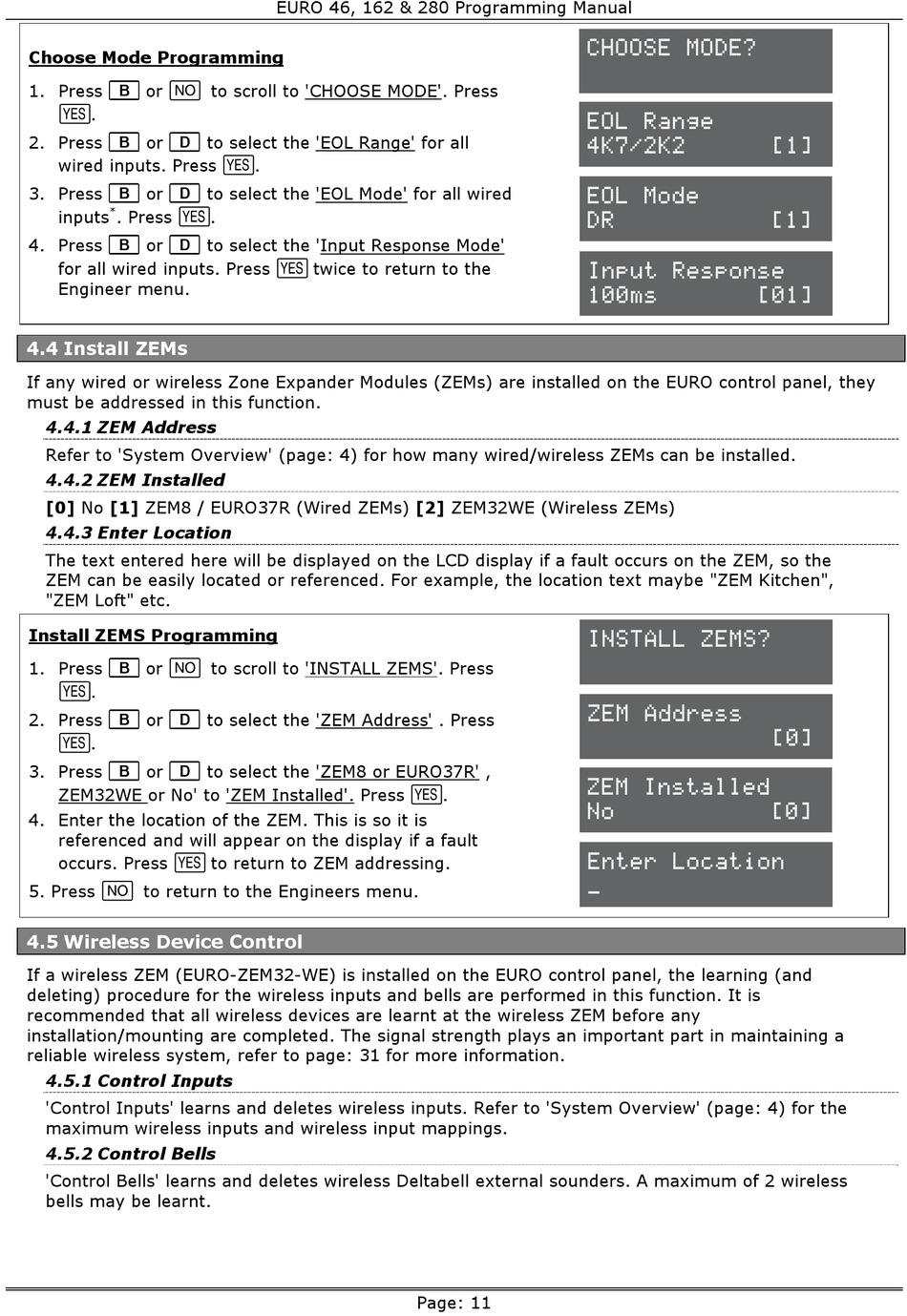

EURO 46, 162 & 280 Programming Manual
Page: 11
CHOOSE MODE?
EOL Range
4K7/2K2
EOL Mode
DR
Input Response
100ms
[01]
INSTALL ZEMS?
ZEM Address
ZEM Installed
No
Enter Location
_
[1]
[1]
[0]
[0]
