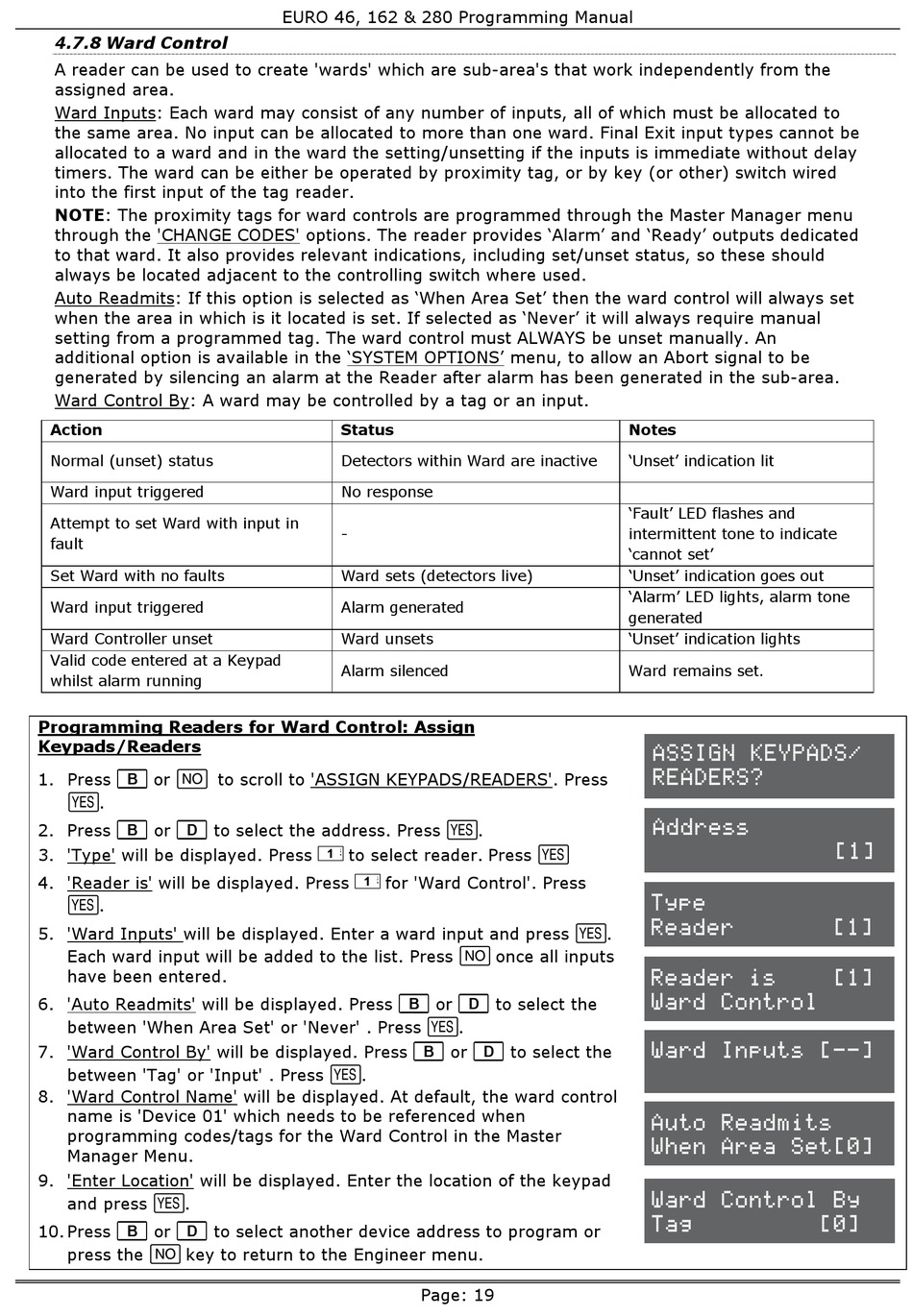

Pyronix Castle EURO 46 Series Programming Reference Manual page 19

4.7.8 Ward Control
A reader can be used to create 'wards' which are sub-area's that work independently from the
assigned area.
Ward Inputs: Each ward may consist of any number of inputs, all of which must be allocated to
the same area. No input can be allocated to more than one ward. Final Exit input types cannot be
allocated to a ward and in the ward the setting/unsetting if the inputs is immediate without delay
timers. The ward can be either be operated by proximity tag, or by key (or other) switch wired
into the first input of the tag reader.
NOTE: The proximity tags for ward controls are programmed through the Master Manager menu
through the 'CHANGE CODES' options. The reader provides 'Alarm' and 'Ready' outputs dedicated
to that ward. It also provides relevant indications, including set/unset status, so these should
always be located adjacent to the controlling switch where used.
Auto Readmits: If this option is selected as 'When Area Set' then the ward control will always set
when the area in which is it located is set. If selected as 'Never' it will always require manual
setting from a programmed tag. The ward control must ALWAYS be unset manually. An
additional option is available in the 'SYSTEM OPTIONS' menu, to allow an Abort signal to be
generated by silencing an alarm at the Reader after alarm has been generated in the sub-area.
Ward Control By: A ward may be controlled by a tag or an input.
Action
Normal (unset) status
Ward input triggered
Attempt to set Ward with input in
fault
Set Ward with no faults
Ward input triggered
Ward Controller unset
Valid code entered at a Keypad
whilst alarm running
Programming Readers for Ward Control: Assign
Keypads/Readers
1. Press or to scroll to 'ASSIGN KEYPADS/READERS'. Press
.
2. Press  or  to select the address. Press .
3. 'Type' will be displayed. Press 1 to select reader.Press 
4. 'Reader is' will be displayed. Press 1 for 'Ward Control'. Press
.
5. 'Ward Inputs' will be displayed. Enter a ward input and press .
Each ward input will be added to the list. Press once all inputs
have been entered.
6. 'Auto Readmits' will be displayed. Press  or  to select the
between 'When Area Set' or 'Never' . Press .
7. 'Ward Control By' will be displayed. Press  or  to select the
between 'Tag' or 'Input' . Press .
8. 'Ward Control Name' will be displayed. At default, the ward control
name is 'Device 01' which needs to be referenced when
programming codes/tags for the Ward Control in the Master
Manager Menu.
9. 'Enter Location' will be displayed. Enter the location of the keypad
and press .
10. Press  or  to select another device address to program or
press the key to return to the Engineer menu.
EURO 46, 162 & 280 Programming Manual
Status
Detectors within Ward are inactive
No response
-
Ward sets (detectors live)
Alarm generated
Ward unsets
Alarm silenced
Page: 19
Notes
'Unset' indication lit
'Fault' LED flashes and
intermittent tone to indicate
'cannot set'
'Unset' indication goes out
'Alarm' LED lights, alarm tone
generated
'Unset' indication lights
Ward remains set.
ASSIGN KEYPADS/
READERS?
Address
Type
Reader
Reader is
Ward Control
Ward Inputs [--]
Auto Readmits
When Area Set[0]
Ward Control By
Tag
[1]
[1]
[1]
[0]
