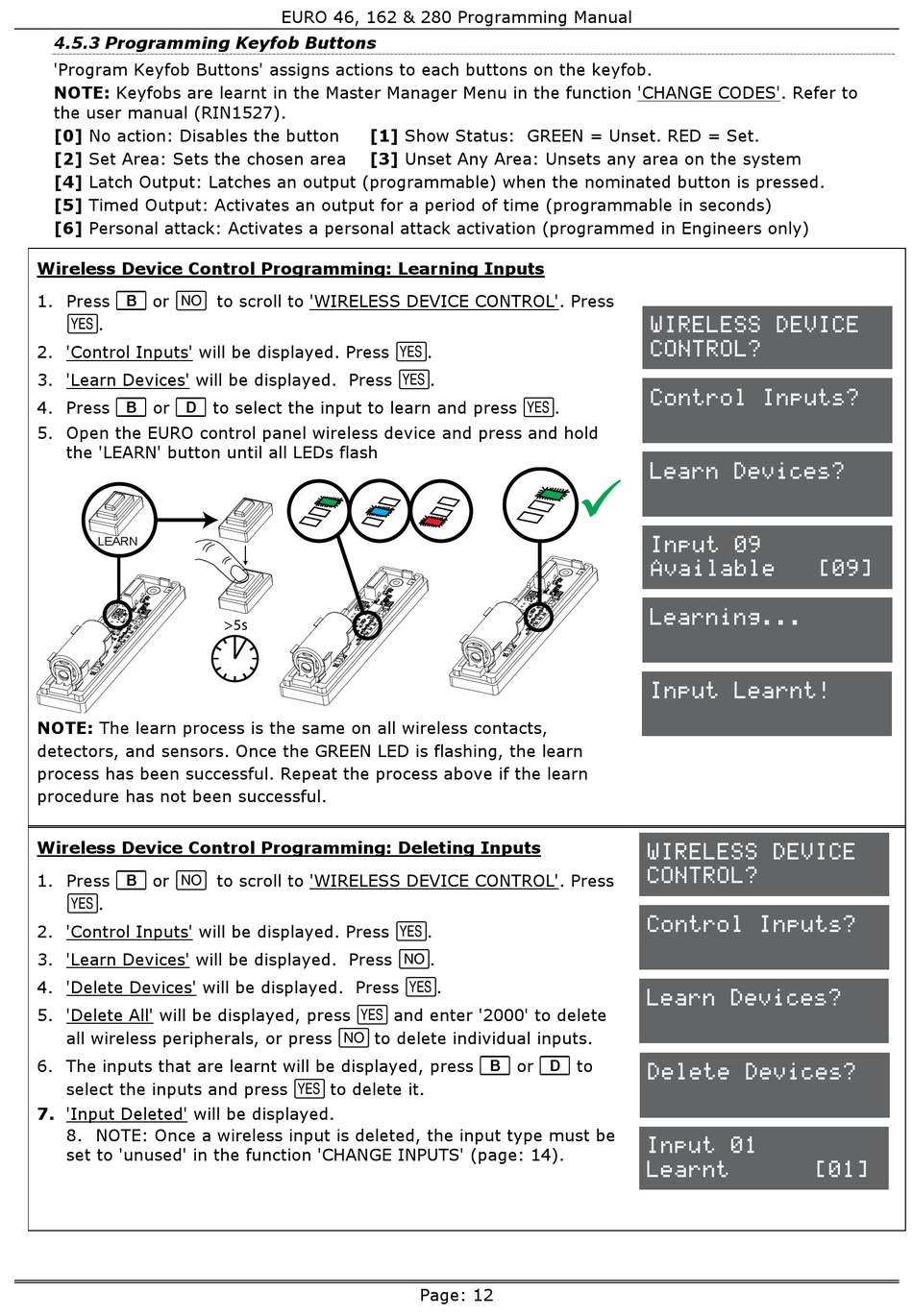

4.5.3 Programming Keyfob Buttons
'Program Keyfob Buttons' assigns actions to each buttons on the keyfob.
NOTE: Keyfobs are learnt in the Master Manager Menu in the function 'CHANGE CODES'. Refer to
the user manual (RIN1527).
[0] No action: Disables the button
[2] Set Area: Sets the chosen area
[4] Latch Output: Latches an output (programmable) when the nominated button is pressed.
[5] Timed Output: Activates an output for a period of time (programmable in seconds)
[6] Personal attack: Activates a personal attack activation (programmed in Engineers only)
Wireless Device Control Programming: Learning Inputs
1. Press or to scroll to 'WIRELESS DEVICE CONTROL'. Press
.
2. 'Control Inputs' will be displayed. Press .
3. 'Learn Devices' will be displayed. Press .
4. Press or to select the input to learn and press .
5. Open the EURO control panel wireless device and press and hold
the 'LEARN' button until all LEDs flash
LEARN
NOTE: The learn process is the same on all wireless contacts,
detectors, and sensors. Once the GREEN LED is flashing, the learn
process has been successful. Repeat the process above if the learn
procedure has not been successful.
Wireless Device Control Programming: Deleting Inputs
1. Press or to scroll to 'WIRELESS DEVICE CONTROL'. Press
.
2. 'Control Inputs' will be displayed. Press .
3. 'Learn Devices' will be displayed. Press .
4. 'Delete Devices' will be displayed. Press .
5. 'Delete All' will be displayed, press and enter '2000' to delete
all wireless peripherals, or press to delete individual inputs.
6. The inputs that are learnt will be displayed, press or to
select the inputs and press to delete it.
7. 'Input Deleted' will be displayed.
8. NOTE: Once a wireless input is deleted, the input type must be
set to 'unused' in the function 'CHANGE INPUTS' (page: 14).
EURO 46, 162 & 280 Programming Manual
[1] Show Status: GREEN = Unset. RED = Set.
[3] Unset Any Area: Unsets any area on the system
>5s
Page: 12
WIRELESS DEVICE
CONTROL?
Control Inputs?
Learn Devices?
Input 09
Available
[09]
Learning...
Input Learnt!
WIRELESS DEVICE
CONTROL?
Control Inputs?
Learn Devices?
Delete Devices?
Input 01
Learnt
[01]
