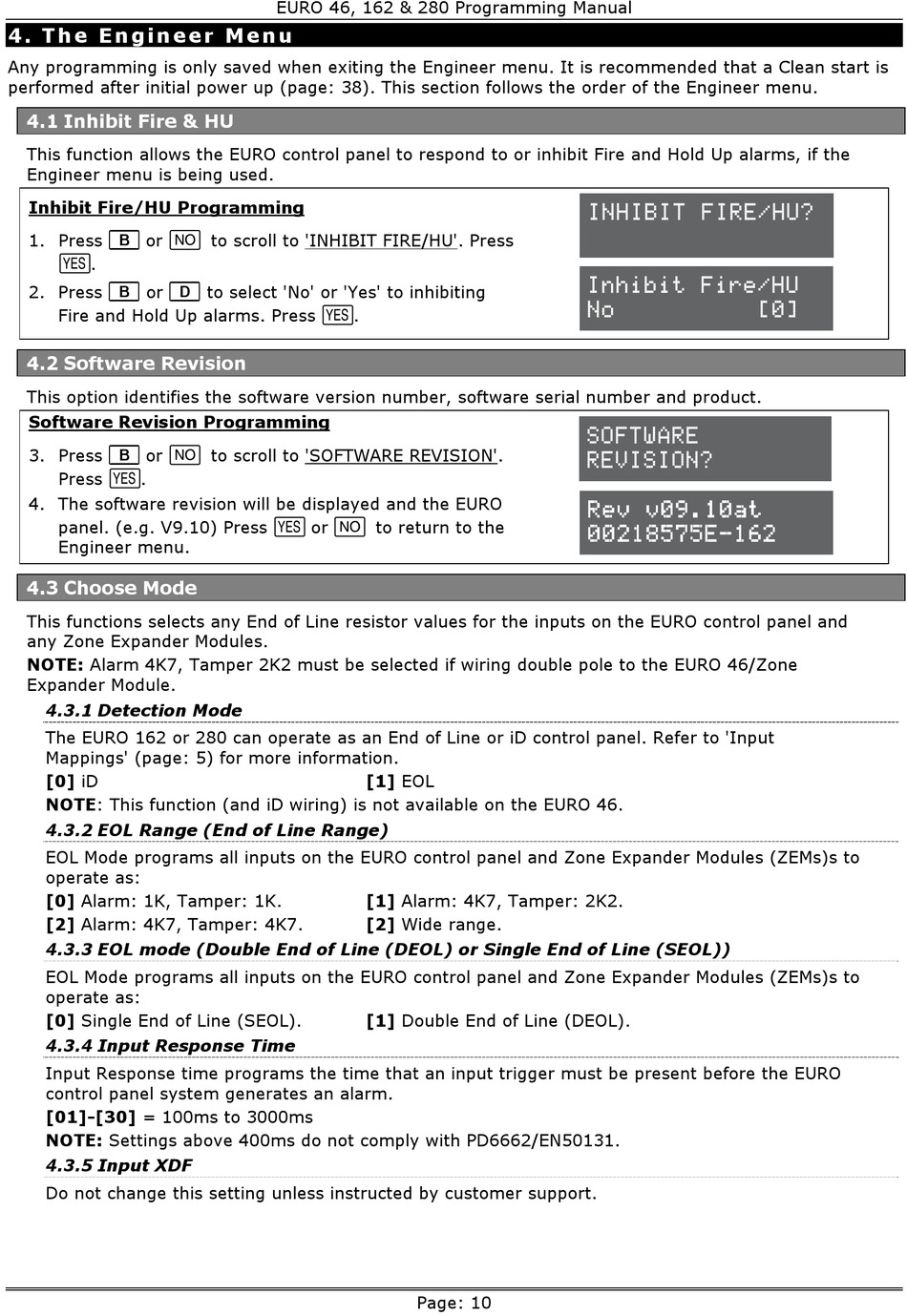

4 . T h e E n g i n e e r M e n u
Any programming is only saved when exiting the Engineer menu. It is recommended that a Clean start is
performed after initial power up (page: 38). This section follows the order of the Engineer menu.
4.1 Inhibit Fire & HU
This function allows the EURO control panel to respond to or inhibit Fire and Hold Up alarms, if the
Engineer menu is being used.
Inhibit Fire/HU Programming
1. Press or to scroll to 'INHIBIT FIRE/HU'. Press
.
2. Press  or  to select 'No' or 'Yes' to inhibiting
Fire and Hold Up alarms. Press .

4.2 Software Revision

This option identifies the software version number, software serial number and product.
Software Revision Programming
3. Press or to scroll to 'SOFTWARE REVISION'.
Press .
4. The software revision will be displayed and the EURO
panel. (e.g. V9.10) Press  orto return to the
Engineer menu.

4.3 Choose Mode

This functions selects any End of Line resistor values for the inputs on the EURO control panel and
any Zone Expander Modules.
NOTE: Alarm 4K7, Tamper 2K2 must be selected if wiring double pole to the EURO 46/Zone
Expander Module.
4.3.1 Detection Mode
The EURO 162 or 280 can operate as an End of Line or iD control panel. Refer to 'Input
Mappings' (page: 5) for more information.
[0] iD
NOTE: This function (and iD wiring) is not available on the EURO 46.
4.3.2 EOL Range (End of Line Range)
EOL Mode programs all inputs on the EURO control panel and Zone Expander Modules (ZEMs)s to
operate as:
[0] Alarm: 1K, Tamper: 1K.
[2] Alarm: 4K7, Tamper: 4K7.
4.3.3 EOL mode (Double End of Line (DEOL) or Single End of Line (SEOL))
EOL Mode programs all inputs on the EURO control panel and Zone Expander Modules (ZEMs)s to
operate as:
[0] Single End of Line (SEOL).
4.3.4 Input Response Time
Input Response time programs the time that an input trigger must be present before the EURO
control panel system generates an alarm.
[01]-[30] = 100ms to 3000ms
NOTE: Settings above 400ms do not comply with PD6662/EN50131.
4.3.5 Input XDF
Do not change this setting unless instructed by customer support.
EURO 46, 162 & 280 Programming Manual
[1] EOL
[1] Alarm: 4K7, Tamper: 2K2.
[2] Wide range.
[1] Double End of Line (DEOL).
Page: 10
INHIBIT FIRE/HU?
Inhibit Fire/HU
No [0]
SOFTWARE
REVISION?
