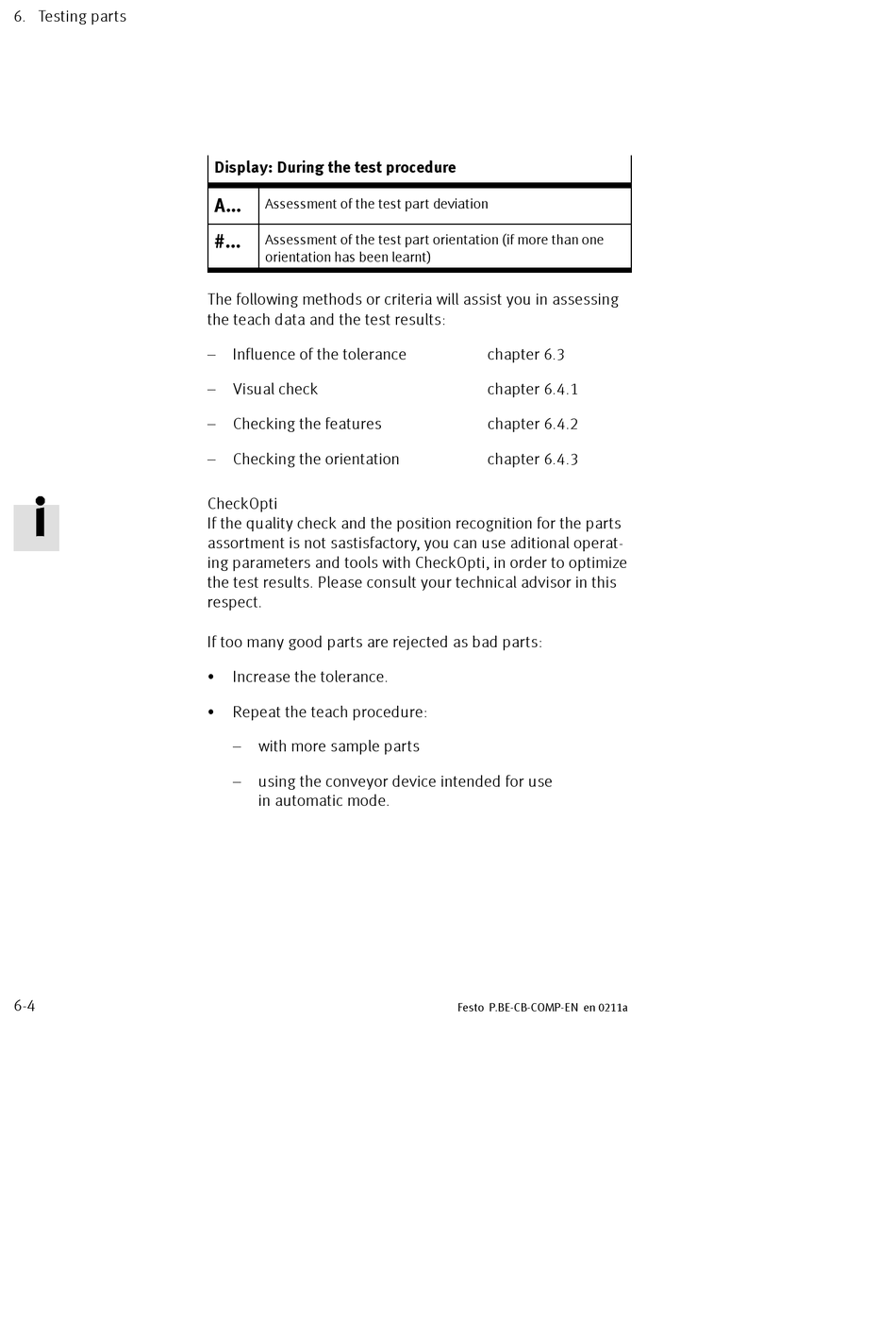

6. Testing parts
6-4
Display: During the test procedure
A...
Assessment of the test part deviation
#...
Assessment of the test part orientation (if more than one
orientation has been learnt)
The following methods or criteria will assist you in assessing
the teach data and the test results:
– Influence of the tolerance
– Visual check
– Checking the features
– Checking the orientation
CheckOpti
If the quality check and the position recognition for the parts
assortment is not sastisfactory, you can use aditional operat-
ing parameters and tools with CheckOpti, in order to optimize
the test results. Please consult your technical advisor in this
respect.
If too many good parts are rejected as bad parts:
Increase the tolerance.
S
Repeat the teach procedure:
S
– with more sample parts
– using the conveyor device intended for use
in automatic mode.
chapter 6.3
chapter 6.4.1
chapter 6.4.2
chapter 6.4.3
Festo P.BE-CB-COMP-EN en 0211a
