3. The I/O module
3.3

BUFFER/FEEDER

Festo P.BE-CB-COMP-EN en 0211a

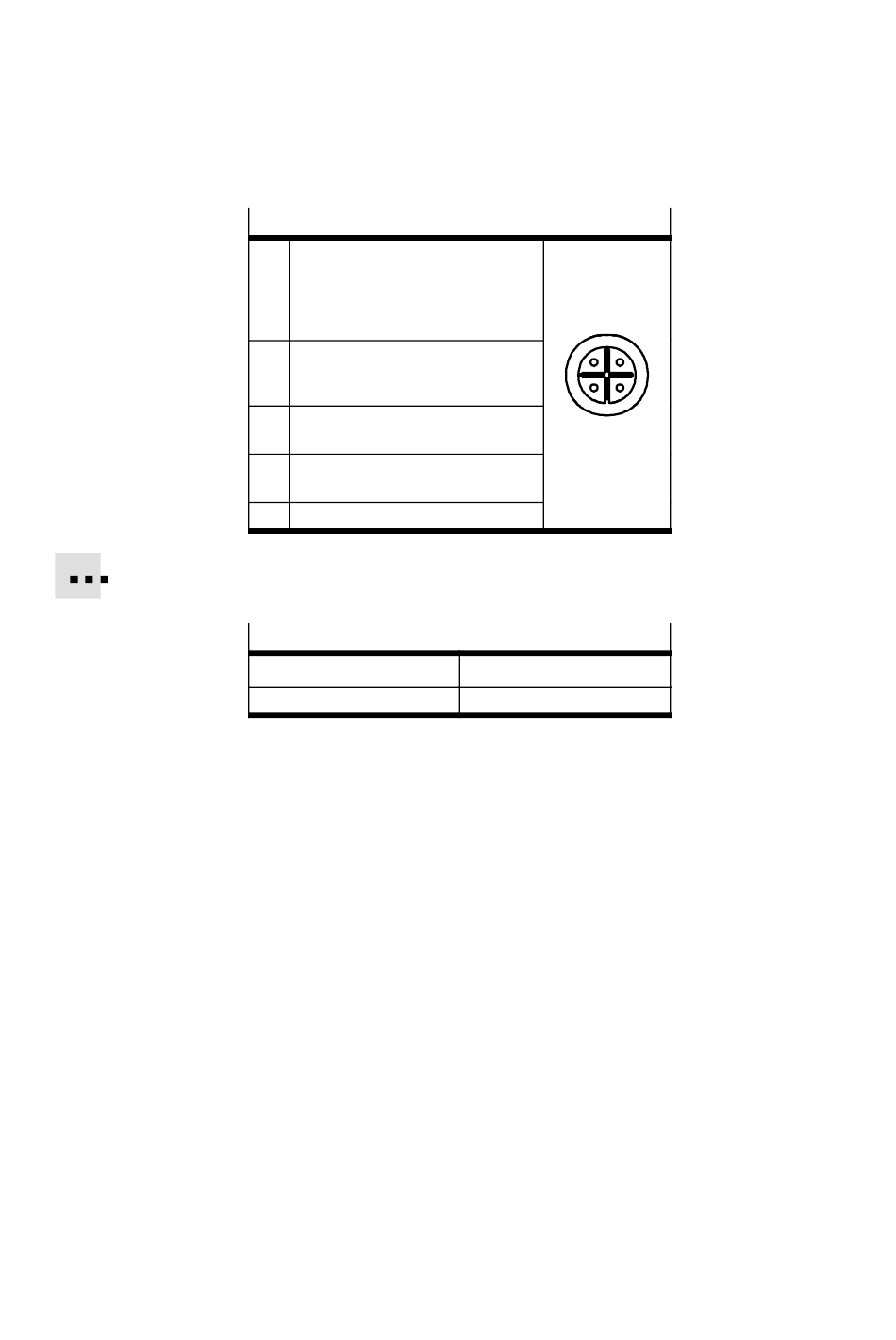

Connector socket BUFFER/FEEDER
O/1 24 V DC / Box ready
– Reference voltage for sensors
(switched off in the stop status)
– Ready to operate
– Control for transport device
O/2 Feeder
Controlling the supply system
(small parts conveyor)
3 GND
Reference voltage for sensors
I/4 Buffer
Buffer zone sensor 1
5 Do not connect
As an option, direct connection with a Festo Duo cable is also
possible. (see chapter A.6 Accessories).
Identifier duo cable
Signal x
Signal x + 1
Small parts conveyor (feeder)
If an external enable signal (24 V DC) can be connected to the
small parts conveyor, you should connect this via pin O/2 on
the plug BUFFER/FEEDER.
3 3
2 2
5
Buffer zone sensor 1
Small parts conveyor (feeder)
4 4
1 1
3-7
